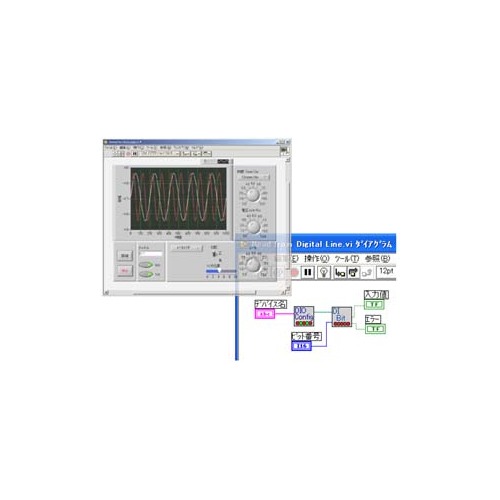

VI-DAQ_img1VI-DAQ_img1

VI-DAQ

  • An intelligible interface
  • Offer VI function according to the use
  • It corresponds to the latest device
  • Composition of VI-DAQ
Request Quote


    Email Verification Code (required)



    SKU: VI-DAQ Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    VI-DAQ is VI library for using our abundant products, analog input and output, digital input and output, and a counter input device ( PCI bus / PC card / USB module). It is for LabVIEW of National Instruments. Various devices can be used easily, without carrying out a complicated setup, since it is created with the function form similar to the data acquisition VI of LabVIEW.

    • An intelligible interface
      • VI-DAQ is created with the function form similar to the “data acquisition VI” of LabVIEW. Since a complicated setup like driver form is unnecessary, the system which used device of our company can create for a short period of time.

    • Offer VI function according to the use
      • The function used well is offered for Foundations VI, a special condition setup and etc. as extension VI. The proper use according to the use and the stage is possible for understanding how using by Foundations VI first, and adding Extension VI after that if needed etc.
    • It corresponds to the latest device

      • It can be used only by installing VI-DAQ and a required device driver. Moreover, it can use a new device by upgrade of a driver also.

        Ver.3.0 or later, the bus master transfer support. Bus master transfer supports analog input, digital input and output, and counter device can greatly improve the performance. The other SMC-DL/-DF motion control, as well as many new products.

    • Composition of VI-DAQ
      • VI Runtime contained in VI-DAQ absorbs the difference in the device to be used. A PCI/PCI Express bus board,CardBus and a USB module can create a program using the same VI, without being conscious of the difference, although the device drivers of each hardware differ.

    Specifications

    Specifications
    Library Software
    Type LabVIEW library
    Supported Software LabVIEW 2017; LabVIEW 2016; LabVIEW 2015; LabVIEW 2014; LabVIEW 2013; LabVIEW 2012; LabVIEW 2011; LabVIEW 2010; LabVIEW 2009; LabVIEW 8.6; LabVIEW 8.5; LabVIEW 8.20; LabVIEW 8; LabVIEW 7.1; LabVIEW 7.0; LabVIEW 6.1
    Supported Development Environment
    Supported Development Environment –
    Supported OS
    Supported OS Windows
    Supported Series
    Supported Series PC-HELPER
    Correspondence Device（Digitizer）
    Model
    PCI Card DIG-100M1002-PCI – –
    Correspondence Device（Digital Multimeter）
    Model
    PCI Card DMM-552-PCI – –
    Correspondence Device（Analog I/O）
    Model
    USB Module
    		 AIO-121602LN-USB*2 AIO-120802LN-USB*2 AI-1664LAX-USB*2
    AO-1604LX-USB*2 AIO-163202FX-USB*1 AIO-160802AY-USB
    AI-1608AY-USB ADI12-8(USB)GY ADI16-4(USB)
    DAI12-4(USB)GY DAI16-4(USB) –
    PCI Express Card
    		 AIO-161601E3-PE AIO-161601UE3-PE AIO-121601E3-PE
    AIO-121601UE3-PE AIO-160802L-LPE*2 AIO-160802LI-PE*2
    AIO-163202F-PE*1 AI-1664LA-LPE*2 AI-1616LI-PE*2
    AO-1608L-LPE*2 AO-1616L-LPE*2 AO-1604LI-PE*2
    AI-1616L-LPE*2 AO-1604L-LPE*2 –
    PCI Card
    		 AI-1204Z-PCI AI-1216AH-PCI AI-1216AL-PCI
    AI-1216B-RU1-PCI AI-1216B-RB1-PCI AIO-121601M-PCI
    AIO-121602AH-PCI AIO-121602AL-PCI AI-1604CI2-PCI
    AO-1604CI2-PCI ADA16-32/2(PCI)F*1 ADA16-8/2(LPCI)L*2
    AD16-16(LPCI)L*2 ADAI16-8/2(LPCI)L*2 ADI16-16(LPCI)L*2
    DA16-4(LPCI)L*2 DAI16-4(LPCI)L*2 DA16-8(LPCI)L*2
    AD16-64(LPCI)LA*2 DA16-16(LPCI)L*2 AD16-16(PCI)EV
    AD12-16(PCI)EV AD12-16(PCI)E ADI16-4C(PCI)
    AD12-16U(PCI)EV AD12-16U(PCI)EH AD12-16U(PCI)E
    AD16-16U(PCI)EV AD16-16U(PCI)EH AD16-16U(PCI)E
    ADI12-16(PCI) AD12-16(PCI) AD12-64(PCI)
    DA12-4(PCI) DA12-8(PCI) DA12-16(PCI)
    ADI16-4L(PCI) DAI16-4C(PCI) –
    CardBus ADA16-32/2(CB)F*1 ADA16-8/2(CB)L*2 AD12-8(PM)
    • *1The In Range comparison function and the Out Range comparison function are not supported.
      Counter function supports only a simple function.　(Start, Stop, Read, and Preset).
    • *2Counter function supports only a simple function.　(Start, Stop, Read, and Preset).
    • *The event controllership function of F series is not supported.
      The synchronization with a card cannot be performed that used the synchronous connector.
      The counter ability of L series is not supporting.
    Correspondence Device（Digital I/O）
    Model
    USB Module
    		 RRY-16CX-USB DIO-0808RN-USB DIO-1616HN-USB
    DIO-48DX-USB DIO-0808LY-USB DIO-24DY-USB
    DIO-1616LX-USB DIO-3232LX-USB DIO-6464LX-USB
    DIO-1616RYX-USB DIO-1616BX-USB DIO-0808TY-USB
    DI-16TY-USB DI-32(USB) DI-16(USB)GY
    DO-16TY-USB DO-16(USB)GY DO-32(USB)
    DIO-8/8(USB)GY DIO-16/16(USB) –
    PCI Express Card
    		 DI-32B-PE DO-32B-PE DIO-96D-LPE
    DIO-1616H-PE DIO-3232H-PE DIO-1616RL-PE
    RRY-16C-PE RRY-32-PE DIO-1616RY-PE
    DIO-48D-PE DI-128T-PE DO-128T-PE
    DI-32L-PE DI-64L-PE DI-128L-PE
    DI-32T-PE DI-64T-PE DO-32L-PE
    DO-32T-PE DO-64T-PE DO-64L-PE
    DO-128L-PE DIO-3232F-PE DIO-32DM-PE
    DIO-1616L-PE DIO-3232L-PE DIO-6464L-PE
    DIO-1616B-PE DIO-3232B-PE DIO-1616TB-PE
    DIO-1616T-PE DIO-3232T-PE DIO-6464T-PE
    DIO-1616T-LPE DIO-48D-LPE DIO-96D-LPE
    PCI Card
    		 DI-128RL-PCI DO-128RL-PCI –
    DIO-48D2-PCI DIO-96D2-LPCI PIO-32DM(PCI)
    PI-32L(PCI) PI-64L(PCI) PI-128L(PCI)
    PI-32L(PCI)H PI-64L(PCI)H PI-128L(PCI)H
    PI-32B(PCI) PI-32B(PCI)H –
    PO-32L(PCI) PO-64L(PCI) PO-128L(PCI)
    PO-32L(PCI)H PO-64L(PCI)H PO-128L(PCI)H
    PO-32B(PCI) PO-32B(PCI)H –
    PIO-16/16L(PCI) PIO-32/32L(PCI) PIO-64/64L(PCI)
    PIO-16/16L(PCI)H PIO-32/32L(PCI)H PIO-64/64L(PCI)H
    PIO-16/16H(PCI)H PIO-32/32H(PCI)H PIO-16/16RY(PCI)
    PIO-32/32F(PCI)H PIO-32/32F(PCI) PIO-16/16RL(PCI)H
    PIO-32/32RL(PCI)H PIO-16/16B(PCI) PIO-32/32B(PCI)
    PIO-16/16B(PCI)H PIO-32/32B(PCI)H PIO-32/32B(PCI)V
    PIO-16/16TB(PCI) PIO-16/16TB(PCI)H –
    DI-32T2-PCI DI-64T2-PCI DI-128T2-PCI
    DO-32T2-PCI DO-64T2-PCI DO-128T2-PCI
    PIO-16/16T(PCI) PIO-32/32T(PCI) –
    PIO-16/16T(PCI)H PIO-32/32T(PCI)H DIO-6464T2-PCI
    PIO-16/16L(LPCI)H PIO-16/16B(LPCI)H PIO-16/16T(LPCI)H
    PIO-48D(PCI) PIO-48D(LPCI)H –
    RRY-16C(PCI) RRY-16C(PCI)H –
    RRY-32(PCI) RRY-32(PCI)H –
    CardBus PIO-16/16L(CB)H PIO-48D(CB)H –
    Compact PCI Card PI-64L(CPCI) PO-64L(CPCI) PIO-32/32L(CPCI)
    Correspondence Device（Counter）
    Model
    USB Module
    		 CNT24-2(USB)GY – –
    PCI Express Card
    		 CNT-3208M-PE*1 CNT-3204MT-LPE*1 –
    PCI Card
    		 CNT32-4MT(LPCI)*1 CNT32-8M(PCI)*1 CNT24-4(PCI)
    CNT24-4(PCI)H CNT24-4D(PCI) CNT24-4D(PCI)H
    CardBus CNT32-4MT(CB)*1 – –
    • *1A hardware event setting is not supported.
    Correspondence Device（Motion Control）
    Model
    PCI Express Card
    		 SMC-4DL-PE SMC-8DL-PE –
    PCI Card
    		 SMC-4DL-PCI SMC-8DL-PCI SMC-4DF-PCI
    SMC-8DF-PCI – –
    Correspondence Device（GPIB Communication）

    About Contec’s GPIB communication device, please use API-GPLV(W32) GPIB Driver for LabVIEW with the GPIB device library of LabVIEW without modification.

    Ordering Informations

    Ordering Information
    Model Description Certification
    VI-DAQ VI Library of data acquisition for LabVIEW

      –
