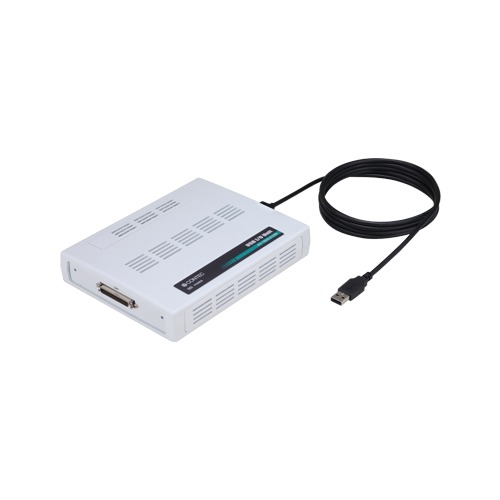

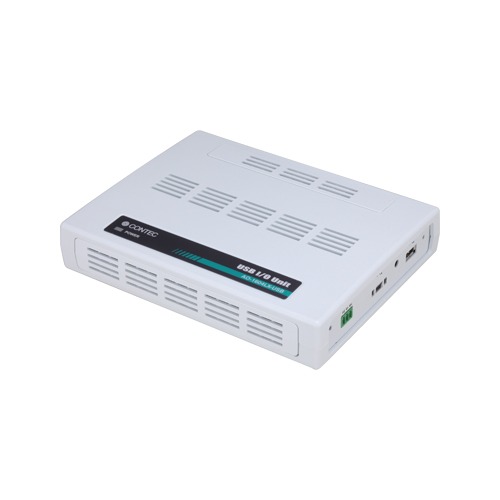

AO-1604LX-USB

  • Multi-function
  • Buffer memory
  • Filter function for easy connection of external signals
  • Compatible with PCI / PCI Express bus board in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board
  • Compatible to USB1.1/USB2.0
  • Windows compatible driver libraries are attached.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AO-1604LX-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a USB2.0-compliant analog output unit that extends the analog output function of USB port of PCs. This product features high-precision analog outputs, digital inputs, digital outputs, and a counter function. As there is compatible with PCI bus-compatible board DA16-4(LPCI)L and PCI Express bus-compatible board AO-1604L-LPE in terms of connector shape and pin assignments, it is easy to migrate from the existing system.

    • Multi-function
      • The unit contains analog outputs (16bit, 4channels), control signal(3 points) of analog output, digital inputs (LVTTL level 4channels), digital outputs (LVTTL level 4channels), and counters (32bit binary, LVTTL level 1channels). Combining all these features on one unit allows complex systems to be implemented even on PCs with USB port only.
    • Buffer memory
      • The analog outputs have their own buffer memory. You can also perform analog output in the background, independent of software and the current status of the PC.
    • Filter function for easy connection of external signals
      • The digital input signals, counter input signals, and the external control signals for analog output incorporate a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
    • Compatible with PCI / PCI Express bus board in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board
      • This product has the common connector shape and pin assignment with PCI bus board DA16-4(LPCI)L, PCI Express bus board AO-1604L-LPE so you can use the common cables and accessories, it is easy to migrate from the existing system.
    • Compatible to USB1.1/USB2.0
      • Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
    • Windows compatible driver libraries are attached.
      • Also, driver library API-AIO(WDM) that makes it possible to create applications of Windows is provided.

    Specifications

    Specifications
    Add-on Module
    Series Analog L(Low-cost&Multi-function); USB X(Mass connector)
    Bus Specification USB
    Size X Type
    Used Connector Miniature ribbon 50-pin
    Analog I/O
    Input Channels –
    Input Range –
    ADC Resolution –
    Sampling Rate –
    Input Buffer Memory –
    Output Channels 4-ch
    Output Range ±10V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 1k Word
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AO-1604LX-USB Analog Output USB I/O Unit / 4ch AO (16bit 100ks/s) / 1ch Counter – Multifunction DAQ L Series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-WaveformGenerator Waveform Generator for Windows
    Cable
    Item Item Name
    PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
    PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
    Terminal
    Item Item Name
    ATP-8L BNC connectors for Analog I/O Card
    EPD-50A Screw Terminal (M3 x 50)
    Power Supply / AC Adapter
    Item Item Name
    POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    Other Accessories
    Item Item Name
    BRK-USB-X USB I/O Unit Bracket for X series
