DIO-48D2-PCI_img1DIO-48D2-PCI_img1

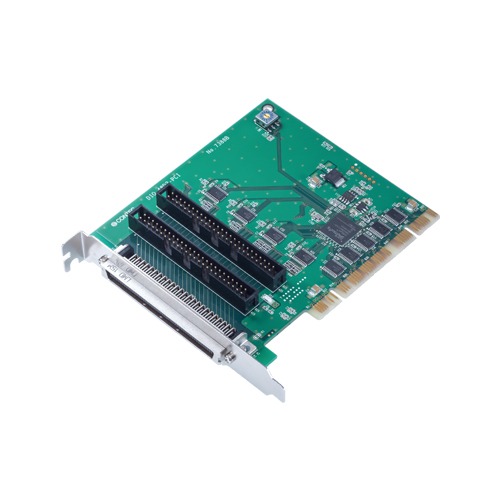

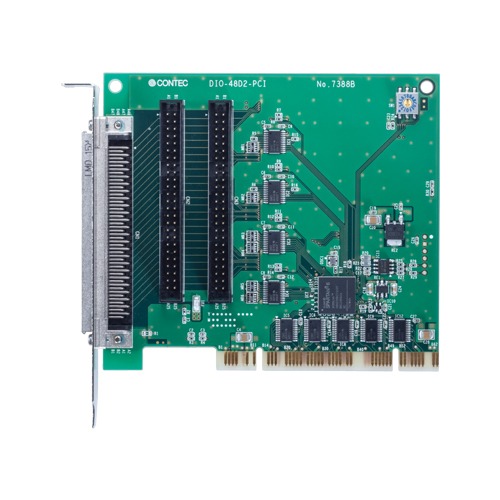

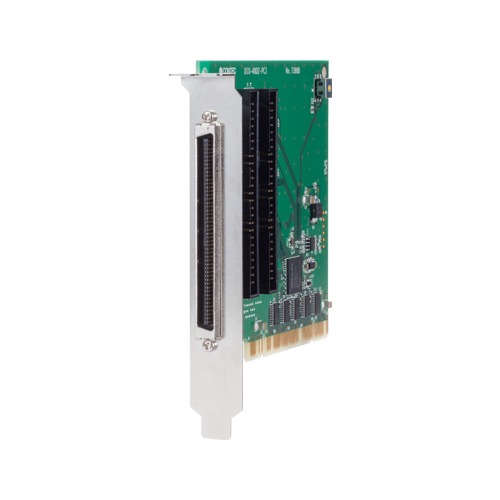

DIO-48D2-PCI

  • This board can be used to input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.
  • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-48D2-PCI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI bus-compliant interface board that extends the input/output function of bi-directional digital signal. This board has up to 48 unisolated TTL-level input/output channels that is powered by the equivalence to the mode 0 of i8255 chips, and you can use up to 48 channels of the input signals as interrupt inputs. You can select the input/output by the application software in eight signals units (in four signals unit for some inputs/outputs). Additionally, the digital filter function is equipped with this product. Windows/Linux driver is bundled with this product.

    • This board can be used to input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
      • It has up to 48 unisolated TTL-level input/output channels(positive logic) whose response speed is 200nsec that is powered by the equivalence to the mode 0 of i8255 device for general-purpose.
    • You can use up to 48channels of the input signals as interrupt events.
      • You can use up to 48channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the edge of input signals, at which to generate an interrupt.
    • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering.
      • This product has a digital filter function to prevent wrong recognition of input signals by noise or chattering is provided. All input terminals can be added a digital filter, and the setting can be performed by software.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI
    Size Short Size
    Used Connector 1.27mm-pitch 96-pin (Male); 2x Pin Header 50-pin (Male)
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 48-ch
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-48D2-PCI Digital I/O PCI card bi-directional 48ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Terminal
    Item Item Name
    DTP-64A Screw Terminal (M3 x 96)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
