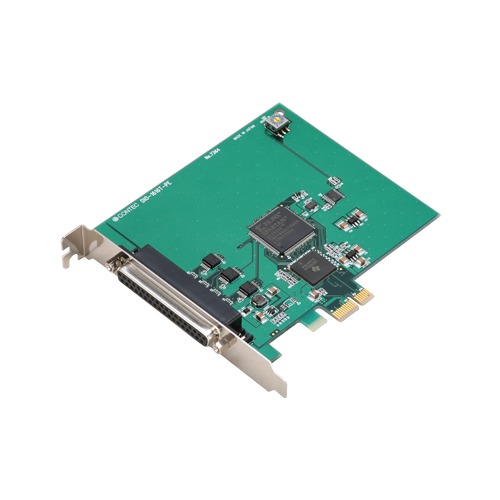

DIO-1616T-PE_img1DIO-1616T-PE_img1

DIO-1616T-PE

  • Unisolated TTL level input, unisolated open-collector output
  • You can use all of the input signals as interrupt request signals.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • Windows/Linux compatible driver libraries are attached
  • Functions and connectors are compatible with PCI compatible card PIO-16/16T(PCI)H.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616T-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant unisolated digital I/O card for input/output of digital signals (TTL level). Unisolated TTL level input 16ch and unisolated open collector output 16ch are provided, and all input signals can be used as interrupts. In addition, digital filter function to prevent wrong recognition of input signals is provided. With the driver libraries for Windows/Linux supplied as standard, applications with CONTEC hardware features fully utilized can be created. LabVIEW is supported with a plug-in of dedicated libraries.

    • Unisolated TTL level input, unisolated open-collector output
      • 16ch of unisolated TTL level input and 16ch of unisolated open-collector output with a response time of 200nsec. Output rating: max 30VDC, 40mA per pin.
    • You can use all of the input signals as interrupt request signals.
      • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
    • Windows/Linux compatible driver libraries are attached
      • Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • Functions and connectors are compatible with PCI compatible card PIO-16/16T(PCI)H.
      • The functions are same with PCI compatible card PIO-16/16T(PCI)H. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616T-PE Digital I/O PCI Express card 16ch/16ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(98/PC) Windows version Digital I/O Driver
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
