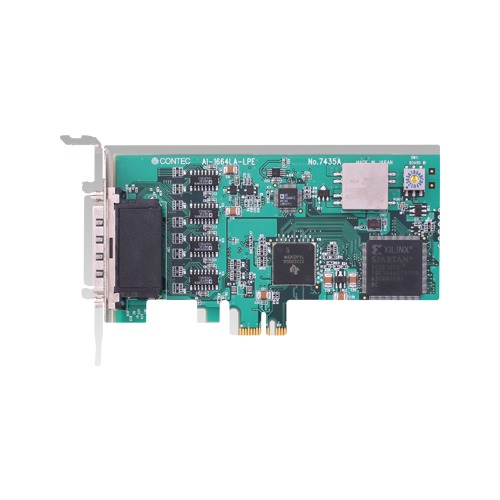

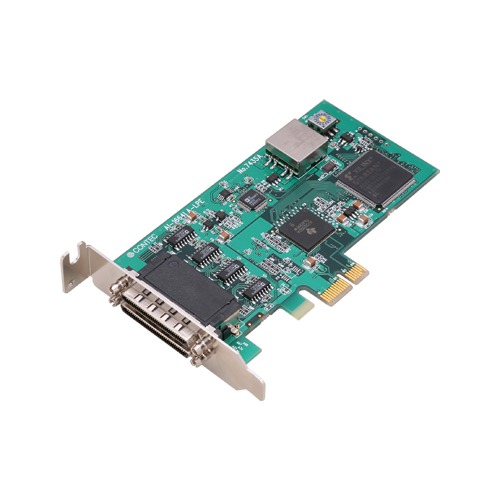

AI-1664LA-LPE

  • High-precision analog input 64 channels, each 4 channels for digital I/O and counter 1 channel
  • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
  • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • Digital filter function included to prevent misdetection due to chattering on external signals
  • Functions and connectors are compatible with PCI compatible card AD16-64(LPCI)LA.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AI-1664LA-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a Low Profile, PCI Express bus-compliant interface card used to provide an analog signal input function on a PC. This product is multi-channels and multifunction type with 16-bit analog input 64 channels (single-ended input 64 channels or differential input 32 channels), digital I/O and counter function. This product carries buffer memory for 1K of data, allowing sampling to be performed in a variety of trigger / clock conditions. Windows/Linux driver and full-fledged data logger software [C-LOGGER] is bundled with this product.

    • High-precision analog input 64 channels, each 4 channels for digital I/O and counter 1 channel
      • This product has analog input (10µsec / channel, 16-bit, 64 channels), analog input control signal (LVTTL level 3 channels), digital I/O (each 4 channels for LVTTL level) and counter (32-bit, LVTTL level 1 channel). Capable of setting the analog input at single-ended input 64 channels and differential input 32 channels.
    • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
      • You can select from software, comparison of conversion data or an external trigger to control the start of sampling. You can select from completion of sampling for a specified number of sessions, comparison of conversion data, an external trigger or software to control forcibly the end of sampling. The sampling cycle can be selected from the internal clock or an external clock.
    • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
      • The analog input / output block contains buffer memory (1K data) that can be used in the FIFO or RING format. This allows for background analog I/O that does not depend on the operation status of the software or PC.
    • Digital filter function included to prevent misdetection due to chattering on external signals
      • A digital filter is included to prevent misdetection due to chattering on the control signal (external trigger input signal, sampling clock input signal, etc.), digital input signal and counter input signal. (Except from external clock input signal and counter gate signal)
    • Functions and connectors are compatible with PCI compatible card AD16-64(LPCI)LA.
      • The functions same with PCI compatible card AD16-64(LPCI)LA are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.

    Specifications

    Specifications
    Add-on Module
    Series Analog L(Low-cost&Multi-function)
    Bus Specification PCI Express
    Size Low Profile
    Used Connector 2x 0.8mm-pitch 68-pin (Female)
    Analog I/O
    Input Channels Single-ended 64-ch (Differential 32-ch)
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate 10μsec/ch (max.)
    Input Buffer Memory 1k Word
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AI-1664LA-LPE Analog Input Low Profile PCI Express Card /64ch AI(16bit 100ks/s) / 1ch Counter – Multifunction DAQ L Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    Cable
    Item Item Name
    ADC-68M/96F Shield Cable for Analog I/O Card for CardBus
    PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
    PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors
    Terminal
    Item Item Name
    ATP-32F BNC Connectors for Analog I/O Card
    ATP-8 BNC Connector Accessory for Analog I/O Card
    DTP-64A Screw Terminal (M3 x 96)
    EPD-68A Screw Terminal (M3 x 68)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
