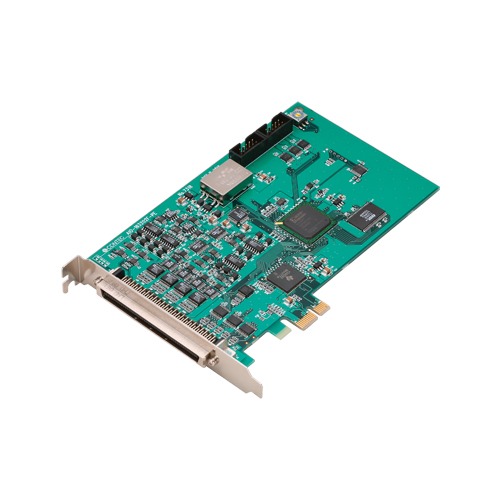

AIO-163202F-PE

  • Multi-function
  • Buffer memory available for background processing independent of software
  • Software-based calibration function
  • Equipped with the synchronization control function
  • Filter function for easy connection of external signals
  • Supported to the data logger software [C-LOGGER]

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AIO-163202F-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    It is a multifunction card for PCI bus which carried highly precise analog I/O, digital I/O, a counter function. The PC measurement control system which is high speed/high precision is realized by equipped a hardware event controller for unify manage and the Bus master Transfer function for transfer large-capacity data with high speed. Attachment windows version driver. In addition, the product also supports No-programming data collection with a data logger soft[C-LOGGER(Attachment)] , and supports MATLAB and LabVIEW with plug in of an exclusive library(free download).

    • Multi-function
      • The card contains analog inputs (16-bit, 32ch), analog outputs (16-bit, 2ch), digital inputs (LVTTL level 8ch), digital outputs (LVTTL level 8ch), and counters (32-bit binary, LVTTL level 2ch). Combining all these features on one card allows complex systems to be implemented even on PCs with few spare extension slots.
    • Buffer memory available for background processing independent of software
      • The analog inputs and outputs each have their own buffer memory (64k Word) which can be used when not using bus master transfer. The buffer memory can be used as FIFO or RING form.
        You can also perform analog input and output in the background, independent of software and the current status of the PC.
    • Software-based calibration function
      • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
    • Equipped with the synchronization control function
      • The operation of each I/O function can be synchronized with two or more (Max. 16 pieces) cards equipped with the synchronous control function as the analog input is started at the same time.
    • Filter function for easy connection of external signals
      • The digital input signals, counter input signals, and the external control signals for analog I/O incorporate a digital filter to prevent problems such as chattering.
    • Supported to the data logger software [C-LOGGER]
      • Supporting the data logger software [C-LOGGER] that enables the graph display of recorded signal data, file saving, and dynamic transfer to the spreadsheet software program “Excel”

    Specifications

    Specifications
    Add-on Module
    Series Analog F(Multi-function)
    Bus Specification PCI Express
    Size Short Size
    Used Connector 1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male)
    Analog I/O
    Input Channels Single-ended 32-ch (Differential 16-ch)
    Input Range ±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; 0 to 2.5V
    ADC Resolution 16-bit
    Sampling Rate 2μsec/ch (max.)
    Input Buffer Memory 64k Word
    Output Channels 2-ch
    Output Range ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 64k Word
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 2-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AIO-163202F-PE Analog I/O PCI Express Card / 32ch AI(16bit 500ks/s) / 2ch AO / 2ch Counter – Multifunction DAQ F Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    C-WaveformGenerator Waveform Generator for Windows
    Expansion Accessory Module
    Item Item Name
    ATBA-32F Buffer Amplifier Function Extension Box for analog input card
    ATBA-8F Buffer Amplifier Function Extension Box for analog input card
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Terminal
    Item Item Name
    ATP-32F BNC Connectors for Analog I/O Card
    ATP-8 BNC Connector Accessory for Analog I/O Card
    DTP-64A Screw Terminal (M3 x 96)
    EPD-96 Screw Terminal (M3.5 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
