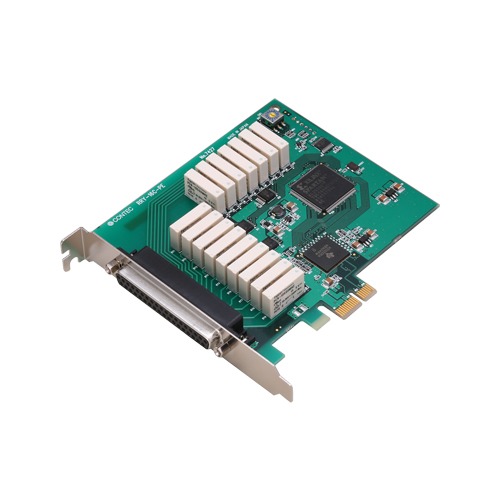

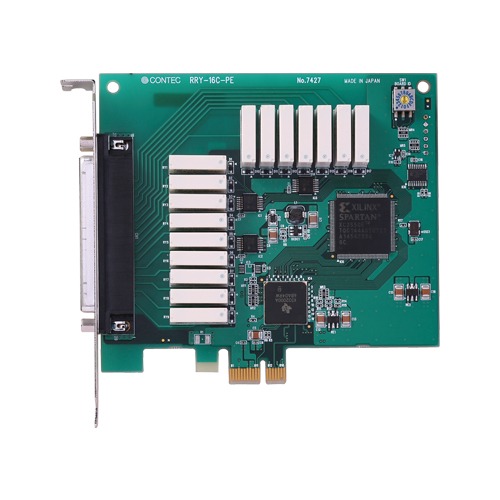

RRY-16C-PE_img1RRY-16C-PE_img1

RRY-16C-PE

  • 16 independent common reed relay contact outputs (with a single make contact)
  • Functions and connectors are compatible with PCI compatible card RRY-16C(PCI)H.
  • Windows/Linux compatible driver libraries are attached.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: RRY-16C-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is PCI Express bus-compliant interface card that output signals to reed relay contacts. It is equipped with 16 points of independent common reed relay output. It can support a different outside power supply by one point of (one common) unit for independent common. The output rating is designed in greatest 2A 125V (AC) or 2A 30V (DC) for per channel.

    • 16 independent common reed relay contact outputs (with a single make contact)
      • This product has 16 reed relay outputs with a single make contact. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel.
    • Functions and connectors are compatible with PCI compatible card RRY-16C(PCI)H.
      • The functions same with PCI compatible card RRY-16C(PCI)H are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
    • Windows/Linux compatible driver libraries are attached.
      • Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
      • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output)
    Operating Voltage (Input) –
    Operating Voltage (Output) to 125VAC / to 30VDC
    Input Circuit –
    Output Circuit Reed relay contact output
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    RRY-16C-PE Reed relay contact output PCI Express card 16ch (isolated – 125VAC – 30VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
