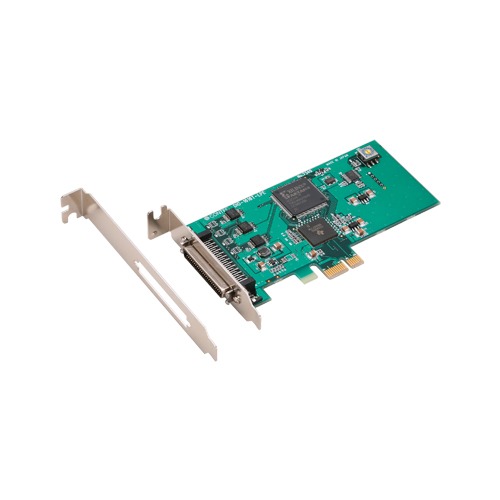

DIO-1616T-LPE_img1DIO-1616T-LPE_img1

DIO-1616T-LPE

  • Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
  • The rated output signal is up to 30VDC, 40mA per one signal.

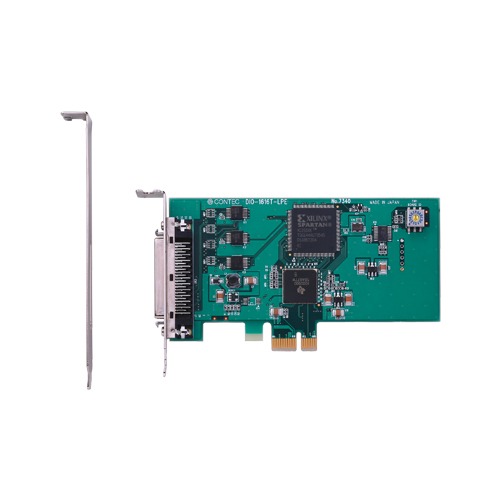

  • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
  • Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616T-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface card for input/output of unisolated TTL-level digital signals. This product can input and output up to 16 channels. You can use all of the input signals as interrupt inputs. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

    • Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
    • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • The rated output signal is up to 30VDC, 40mA per one signal.
    • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
    • Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Low Profile
    Used Connector Miniature ribbon 50-pin
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616T-LPE Digital I/O Low Profile PCI Express card 16ch/16ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
    PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
    PCE50/37PS-0.5P 50 pin miniature ribbon –> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    EPD-50A Screw Terminal (M3 x 50)
