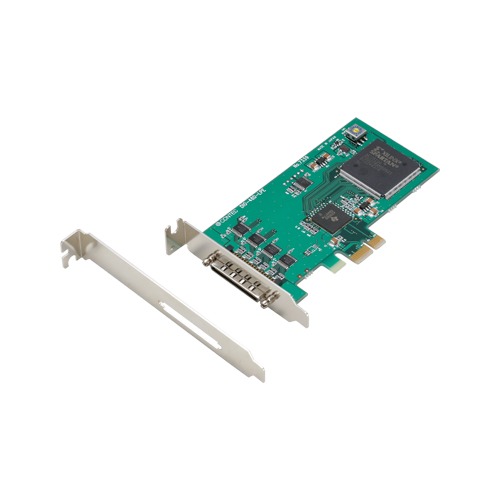

DIO-48D-LPE_img1DIO-48D-LPE_img1

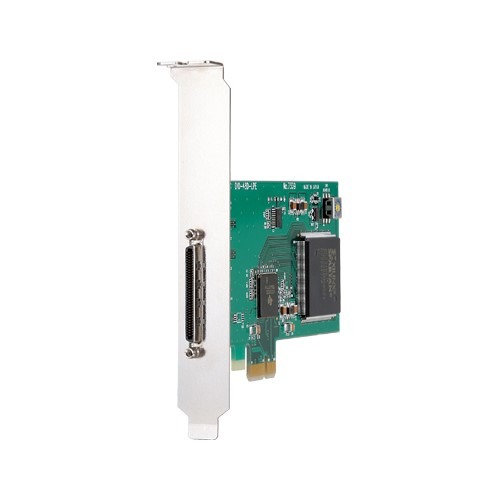

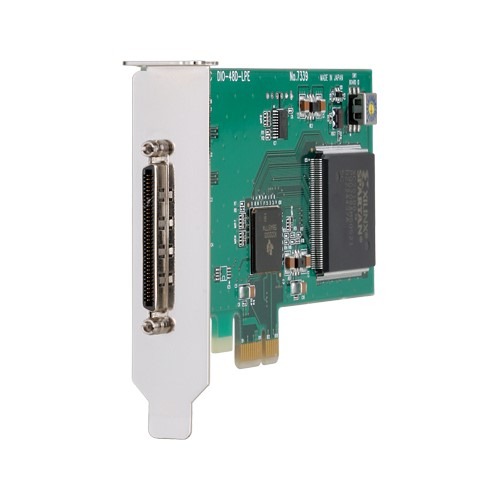

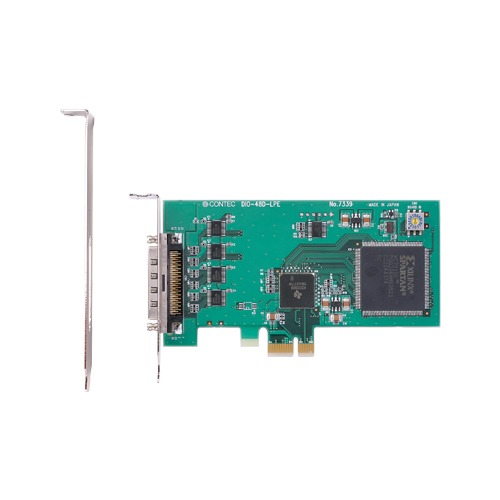

DIO-48D-LPE

  • This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
  • You can use all of the input signals (Max. 48) as interrupt inputs. You can also disable or enable the interrupt in bit units and select the interrupt edge.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
  • Application software enabling the switching of input and output settings
  • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-48D-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface card that can perform the input/output of LVTTL level bi-directional digital signal. This product can input and output up to 48 channels. You can select the input/output by the application software in eight signals units. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

    • This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
    • You can use all of the input signals (Max. 48) as interrupt inputs. You can also disable or enable the interrupt in bit units and select the interrupt edge.
    • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
    • Application software enabling the switching of input and output settings
    • Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Low Profile
    Used Connector 0.8mm-pitch 68-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 48-ch
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-48D-LPE Digital I/O Low Profile PCI Express card bi-directional 48ch (non-isolated 3VDC-LVTTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Cable
    Item Item Name
    DIO-68M/96F Shielded Cable for Digital I/O Card for CardBus (0.5m)
    PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
    PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors
    Terminal
    Item Item Name
    DTP-64A Screw Terminal (M3 x 96)
    EPD-68A Screw Terminal (M3 x 68)
    EPD-96 Screw Terminal (M3.5 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
