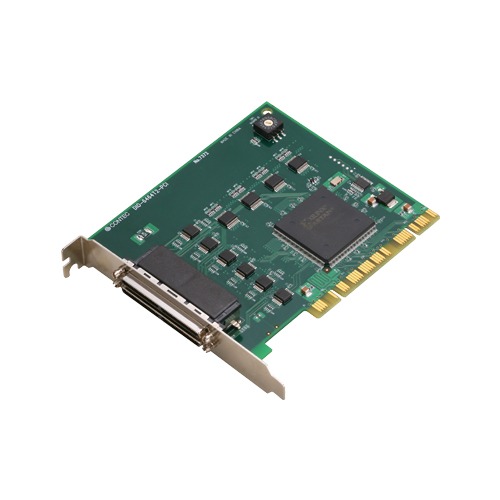

DIO-6464T2-PCI_img1DIO-6464T2-PCI_img1

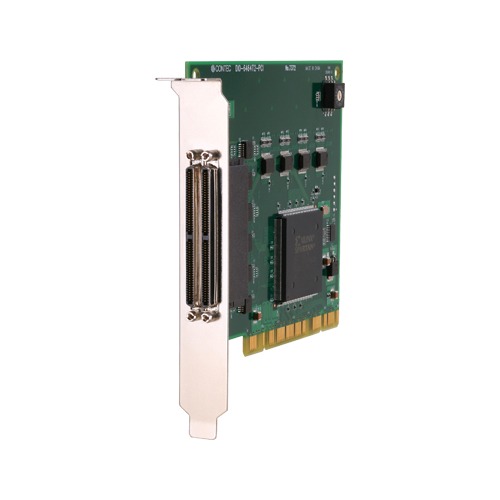

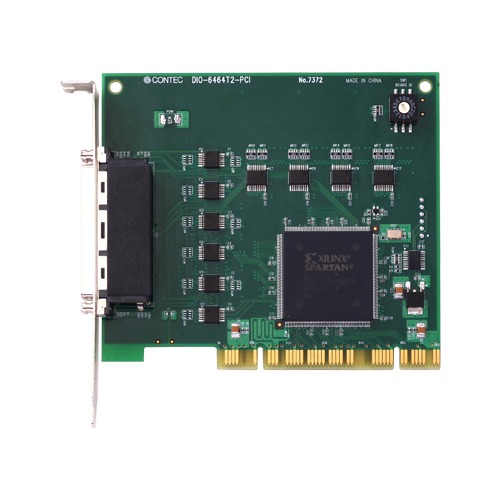

DIO-6464T2-PCI

  • Unisolated TTL level input, unisolated open-collector output
  • You can use 16 input signals as interrupt request signals.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-6464T2-PCI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI bus-compliant interface board used to provide a digital signal I/O function on a PC.
    There are 64 unisolated TTL level inputs and 64 unisolated open-collector outputs.
    You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.

    • Unisolated TTL level input, unisolated open-collector output
      • It has the unisolated TTL level inputs 64channels, and the unisolated open collector outputs 64channels whose response speed is 200nsec. Output rating : max 30VDC, 40mA per pin.
    • You can use 16 input signals as interrupt request signals.
      • You can use 16 channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI
    Size Short Size
    Used Connector 2x 0.8mm-pitch 100-pin (Female)
    Digital I/O
    Input Channels 64-ch
    Output Channels 64-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-6464T2-PCI Digital I/O PCI card 64ch/64ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    CM-64L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
    PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
    PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
    PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    DTP-64A Screw Terminal (M3 x 96)
    EPD-100A Screw Terminal (M3 x 100)
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Other Accessories
    Item Item Name
    CCB-96 Connector conversion card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
