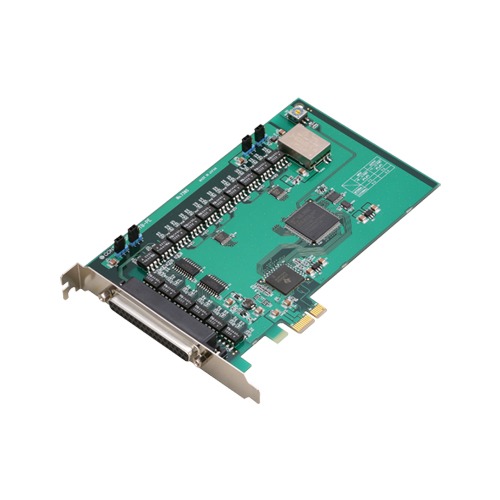

DIO-1616TB-PE_img1DIO-1616TB-PE_img1

DIO-1616TB-PE

  • Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output
  • Opto-coupler bus isolation
  • Power supply (5VDC 600mA) for driving opto-coupler
  • You can use all of the inpur signals as interrupt events.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • Windows/Linux compatible driver libraries are attached

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616TB-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

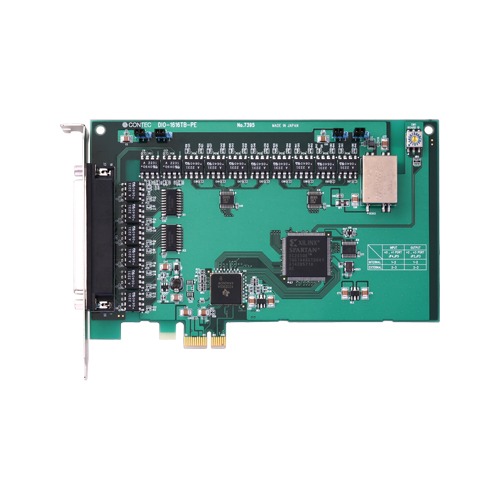

    This product is a PCI Express card used to provide a digital signal I/O function on a PC. This product features TTL level input 16ch, TTL level output 16ch opto-coupler isolated type with an internal 5VDC power supply that does not require external power. You can use all of the input signals as interrupt inputs. In addition, digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

    • Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output
      • This product has the opto-coupler isolated TTL level input 16ch and output 16ch whose high speed response speed is 1µsec.
    • Opto-coupler bus isolation
      • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
    • Power supply (5VDC 600mA) for driving opto-coupler
      • Power supply (5VDC 600mA) for driving opto-coupler is equipped. Whether or not to use the internal power supply can be specified by jumpers in blocks of 16ch.
    • You can use all of the inpur signals as interrupt events.
      • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • This product has a digital filter to prevent input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
    • Windows/Linux compatible driver libraries are attached
      • Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 1μsec (max.)
    Response Time (Output) 1μsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Opto-isolated TTL level input (Negative logic)
    Output Circuit Opto-isolated TTL level output (Negative logic)
    Built-in Power Supply 5VDC
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616TB-PE Digital I/O PCI Express card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
