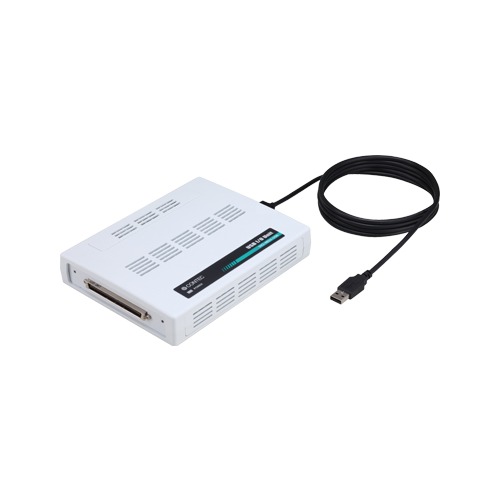

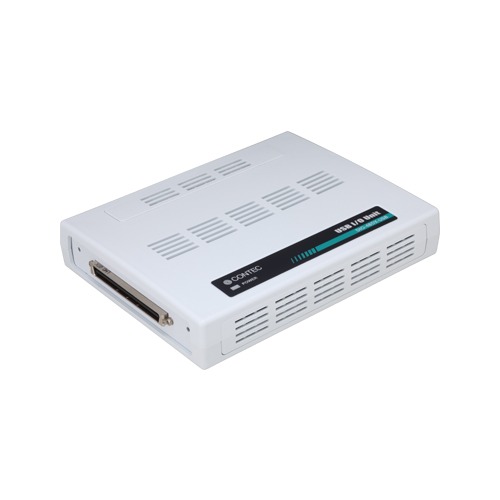

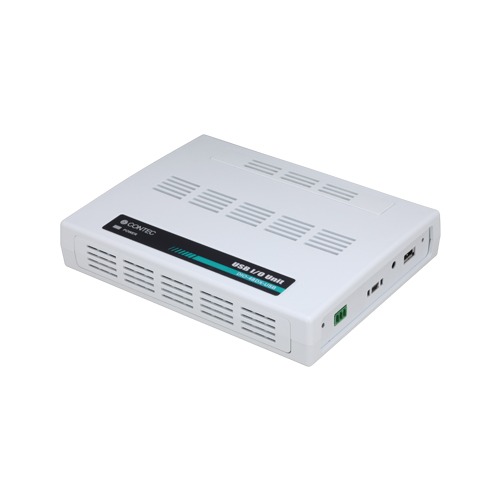

DIO-48DX-USB_img1DIO-48DX-USB_img1

DIO-48DX-USB

  • This product can be used to TTL-level input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • USB HUB function
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows/Linux drivers are available

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-48DX-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an USB2.0-compliant digital I/O unit that extends the input/output function of bi-directional digital signal. This product has up to 48 unisolated TTL-level input/output channels that is powered by the equivalence to the mode 0 of i8255 chips, and you can use up to 48 channels of the input signals as interrupt inputs. You can select the input/output by the application software in eight signals units (in four signals unit for some inputs/outputs).As there is compatible with PCI bus-compatible board DIO-48D2-PCI and PCI Express bus-compatible board DIO-48D-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. Windows/Linux drivers are available.

    • This product can be used to TTL-level input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0.
      • This product has up to 48 unisolated TTL-level input/output channels whose response speed is 200nsec that is powered by to the equivalence to the mode 0 of i8255 device for general-purpose. You can select the input/output by the application software in eight signals units (in four signals unit for some inputs/outputs).
    • You can use up to 48channels of the input signals as interrupt events.
      • You can use up to 48channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the edge of signals, at which to generate an interrupt.
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
    • USB HUB function
      • This product has the USB HUB function. Max. 4 DIO-48DX-USB can be used in 1 USB port of PC. When you use 4 or more DIO-48DX-USB, you can do by connecting DIO-48DX-USB to another USB port of PC side. Also, you can connect the CONTEC’s USB device other than DIO-48DX-USB to the USB port of DIO-48DX-USB.
    • Connectors are compatible with PCI/PCI Express bus-compatible board
      • As there is compatible with DIO-48D2-PCI and DIO-48D-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. If the system of this product is created by the digital I/O driver API-DIO(98/PC), it is required to replace it with API-DIO(WDM).
    • Windows/Linux drivers are available
      • By using the digital I/O driver, each Windows/Linux application can be created. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB X(Mass connector)
    Bus Specification USB
    Size X Type
    Used Connector 1.27mm-pitch 96-pin (Male)
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 48-ch
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-48DX-USB Digital I/O USB I/O unit bi-directional 48ch (non-isolated 5VDC-TTL) – the X series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Terminal
    Item Item Name
    DTP-64A Screw Terminal (M3 x 96)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Power Supply / AC Adapter
    Item Item Name
    POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    Other Accessories
    Item Item Name
    BRK-USB-X USB I/O Unit Bracket for X series
