AI-1608AY-USB

  • Equipped with the analog input 8ch and digital I/O 4ch each
  • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
  • Sampling can be driven by a clock or by various triggers
  • Terminal connector facilitating wiring
  • Software-based adjustment function
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AI-1608AY-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

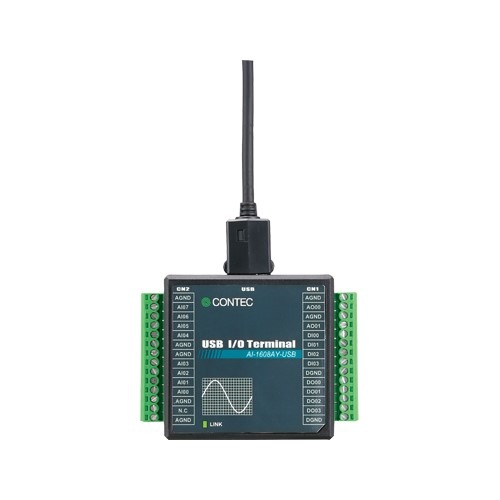

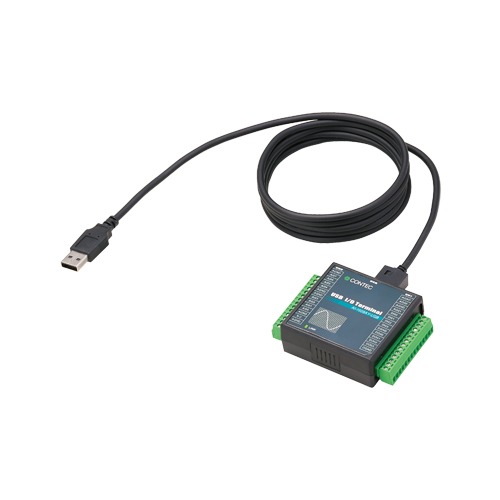

    This product is a USB2.0 compatible terminal module that extends the analog input function of USB port of PCs. 8ch/16bits analog inputs are employed and signal lines can be directly connected to the screw terminals in the system. Compact design to match Note PCs and excellent in mobility as operation is powered by USB bus. Windows/Linux device driver is supported with the product.

    • Equipped with the analog input 8ch and digital I/O 4ch each
      • Equipped with the analog input (10μsec/ch, 16bit, 8ch) and digital I/O (4ch each, LVTTL level).
    • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps). Not necessary to power this product externally as the bus power of USB is used.
    • Sampling can be driven by a clock or by various triggers
      • Sampling can be started and stopped by software or by an external trigger (timing controlled by an externally input control signal). The sampling period can be controlled by the internal clock (high-precision timer included on the board) or by an external clock (externally input control signal).
    • Terminal connector facilitating wiring
      • Wiring is easy as the terminal connector (screw type) is used.
    • Software-based adjustment function
      • Adjustment of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB Y(Mobile)
    Bus Specification USB
    Size Y Type
    Used Connector 2x Screw terminal block 14-pin
    Analog I/O
    Input Channels Single-ended 8-ch
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate 10μsec/ch (max.)
    Input Buffer Memory 1k Word
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AI-1608AY-USB Analog Input USB I/O Unit / 8ch(16bit 100ks/s)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Other Accessories
    Item Item Name
    BRK-USB-Y Bracket for USB I/O Terminal products
    CN6-Y14 14 pin Terminal connector(screw type) 6/set
