DIO-1616B-PE

  • Opto-coupler isolated input (support current sink output) and opto-coupler isolated open-collector output (current sink)
  • Opto-coupler bus isolation
  • 12VDC 240mA on-card power supply
  • All input signals can be used as interrupts
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616B-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

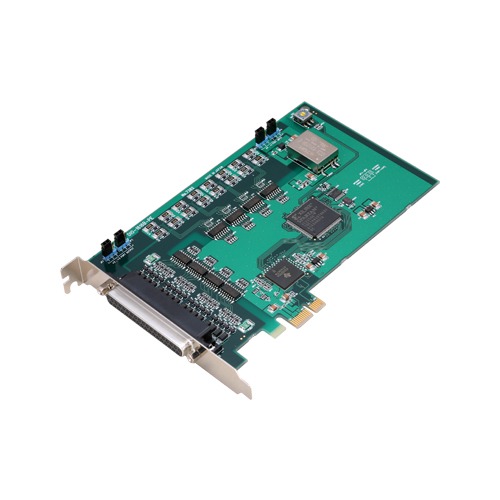

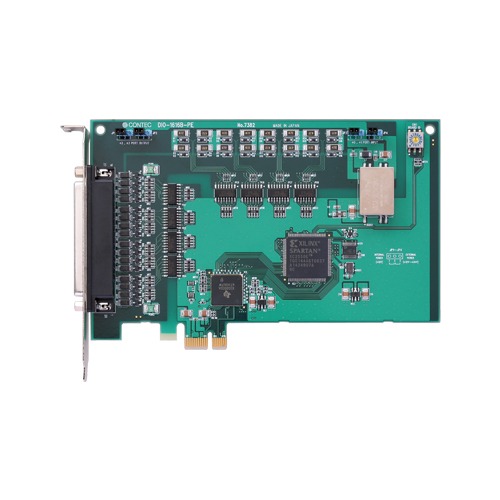

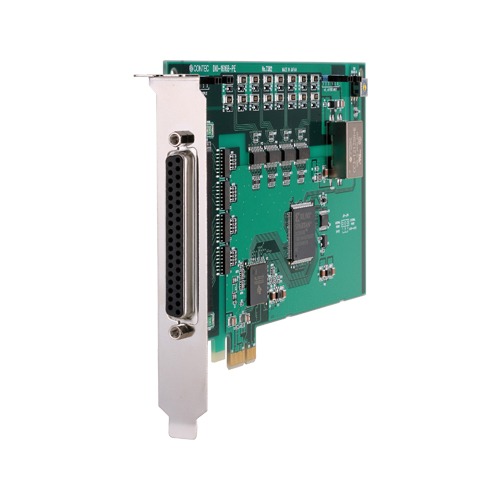

    This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product can input and output digital signals at 12 – 24VDC.DIO-1616B-PE features 16 opto-coupler isolated inputs (supporting current sink output) and 16 opto-coupler isolated open-collector outputs (current sink type). You can use all of input signals as interrupt inputs. In addition, this product is equipped with a power supply for driving opto-couplers (12VDC), digital filtering, and output transistor protection circuits (surge voltage and overcurrent protection).Windows/Linux device driver is supported with this product.

    • Opto-coupler isolated input (support current sink output) and opto-coupler isolated open-collector output (current sink)
      • This card has 16ch of opto-coupler isolated input (supporting current sink output) with a 200µsec response speed and 16ch of opto-coupler isolated open-collector output (current sink). 16ch share a common terminal, each capable of supporting different external driver voltages of 12 – 24 VDC for I/O.
    • Opto-coupler bus isolation
      • The PCI Express bus (PC) is isolated from both the input and output interfaces by the use of opto-couplers, providing superior noise immunity.
    • 12VDC 240mA on-card power supply
      • This card has a 12VDC 240mA on-card power supply. 16ch share a common terminal, each capable of supporting different external driver voltages of 12 – 24 VDC for I/O.
    • All input signals can be used as interrupts
      • All input signals can be used as interrupts. Disable or enable interrupts in bit units and select the interrupt edge via software.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply 12VDC
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616B-PE Digital I/O PCI Express card 16ch/16ch (12VDC on-board power supply isolated 12 – 24VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
