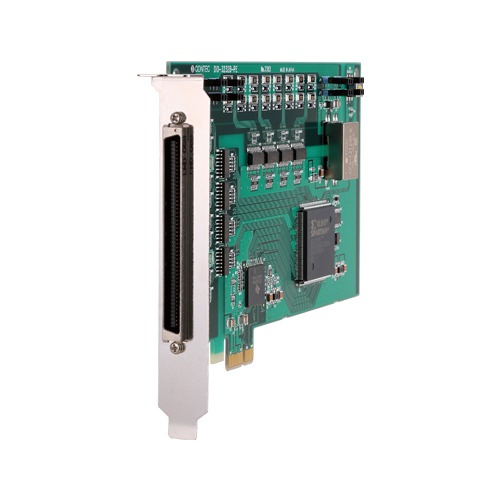

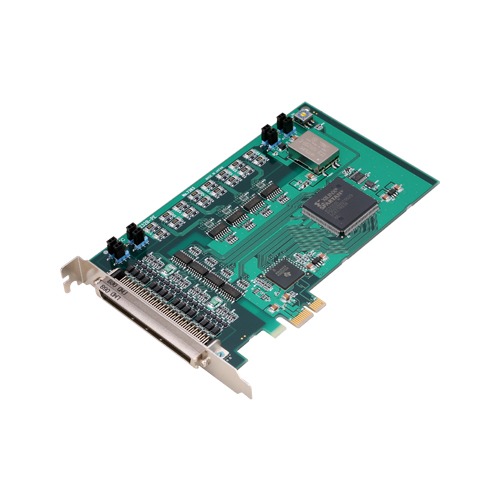

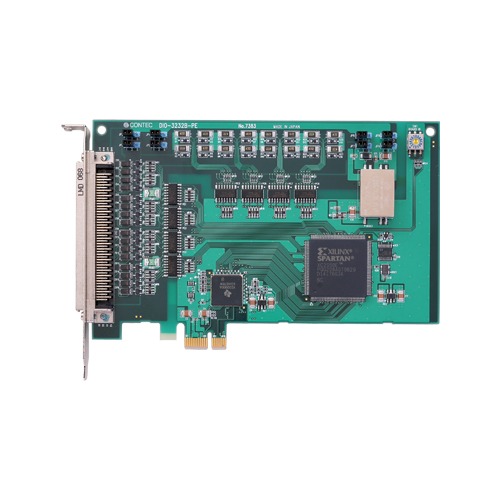

This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product can input and output digital signals at 12 – 24VDC.This product features 32 opto-coupler isolated inputs (supporting current sink output) and 32 opto-coupler isolated open-collector outputs (current sink type). You can use all of input signals as interrupt inputs. In addition, this product is equipped with a power supply for driving optocouplers (12 VDC), the digital filter function to prevent wrong recognition of input signals is provided and output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
| Input Channels | 32-ch |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | 12VDC |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| DIO-3232B-PE | Digital I/O PCI Express card 32ch/32ch (12VDC on-board power supply isolated 12 – 24VDC) |
|
| Item | Item Name |
|---|---|
| API-DIO(LNX) | Linux version Digital I/O Driver |
| API-DIO(WDM) | Windows Driver for Digital I/O Driver |
| API-TIMER(W32) | Timer Driver |
| Item | Item Name |
|---|---|
| ACX-PAC(W32) | ActiveX components sets for measurement system development |
| DAQ-DNC-FE | A collection of .NET components for DAQfast measurement system development. |
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| Item | Item Name |
|---|---|
| CM-32L | Signal monitor Accessory for Digital I/O |
| CM-64L | Signal monitor Accessory for Digital I/O |
| Item | Item Name |
|---|---|
| PCA96P | A one end connector flat cable for 96 pin Half-Pitch connector |
| PCA96PS-P | A one end connector shield cable for 96 pin Half-Pitch connector (Mold type) |
| PCB96P | Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors |
| PCB96PS-P | Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type) |
| PCB96WS-P | 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable |
| Item | Item Name |
|---|---|
| DTP-3C | General Purpose Terminal |
| DTP-4C | Screw Terminal |
| DTP-64A | Screw Terminal (M3 x 96) |
| EPD-37 | Screw Terminal (M3.5 x 37) |
| EPD-37A | Screw Terminal (M3 x 37) |
| EPD-96 | Screw Terminal (M3.5 x 96) |
| EPD-96A | Screw Terminal (M3 x 96) |
| Item | Item Name |
|---|---|
| CCB-96 | Connector conversion card |
| Item | Item Name |
|---|---|
| ESP-F6 | Extended warranty service package (6 years service course) (Japan only) |
