SMC-8DL-PCI

  • Capable of multi-axis independent control and pulse output up to 9.8Mpps
  • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
  • With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
  • Capable of speed and position overriding
  • Comparator circuits allowing the set value and counter value to be compared

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: SMC-8DL-PCI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

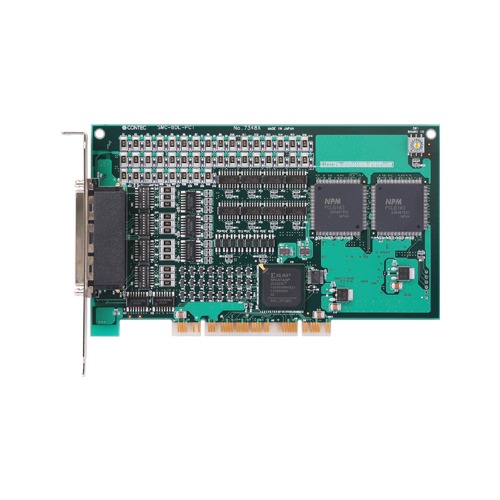

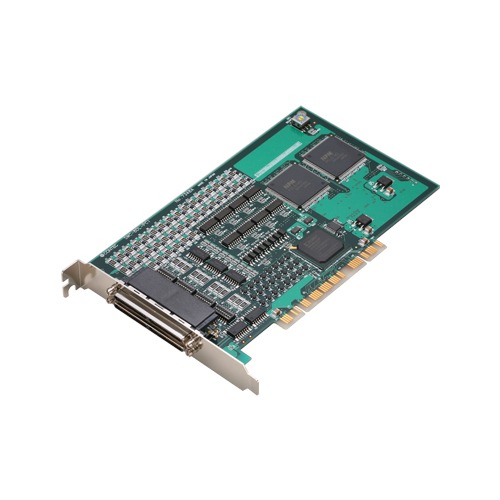

    This product is a PCI bus board that supports stepping motors and (“pulse string input” types of) servomotors. SMC-8DL-PCI can perform motor control for up to 8 axes. This product has the functions for positioning, origin return, linear interpolation, and for S-curve acceleration and deceleration, capable of multi-axial linear interpolation and speed/position overriding. This product covers a wide range of applications including semiconductor equipment, test instruments, multi-axis robots, and X-Y robots. These various functions make it possible to build complex positioning control systems for variety of uses such as manufacturing devices and test devices. Windows/Linux device driver is supported with this product.

    • Capable of multi-axis independent control and pulse output up to 9.8Mpps
      • Control for up to 8 axes and motor control pulse output up to 9.8Mpps are available. Command pulse for motor control supports common pulse, independent pulse and 90° phase difference pulse. Limit input 3channels/axis, general-purpose input 7channels/axis, and general-purpose output 3channels/axis are equipped. Also, depending on the software setting, 5general-purpose inputs can be used as alarm inputs, and general-purpose outputs as deviation counter clear outputs.
    • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
      • Carrying a motor control IC in the PCL6100 series from Nippon Pulse Motor Co., Ltd., capable of controlling jogging,positioning, origin returning, synchronization control and linear interpolation.
    • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
      • Encoder input circuits can be connected with differential output,TTL level output, and open-collector output. Pulse output circuits can be connected with differential input, opto-coupler and TTL level input.
    • With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
      • Synchronization control of multi-axis simultaneous start/stop control, linear interpolation operation is available.
    • Capable of speed and position overriding
      • Capable of changing the speed and target position during operation.
    • Comparator circuits allowing the set value and counter value to be compared
      • A pair of comparator circuits are provided for each axis, allowing the set value and counter value to be compared with each other. They also allow signals to be output while comparator conditions are met.

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification PCI
    Size Short Size
    Used Connector 2x 0.8mm-pitch 100-pin (Female)
    Motion Control
    Number of Channels 8-ch
    Pulse Rate 0.3 ~ 9.8Mpps
    Counter
    Number of Channels 8-ch
    Counting System 28-bit Up/Down count
    Response speed 5MHz [differential]; 3MHz [TTL]; 1MHz [open collector output]
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    SMC-8DL-PCI High-speed line driver output 8 axis motion control board for PCI
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-SMC(LNX) Linux Driver for Motion Control
    API-SMC(WDM) Motion Control Driver
    API-TIMER(W32) Timer Driver
    Cable
    Item Item Name
    PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
    PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
    Terminal
    Item Item Name
    EPD-100A Screw Terminal (M3 x 100)
    Other Accessories
    Item Item Name
    CCB-SMC2 Conversion terminal for SMC series
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
