DO-64L-PE_img1DO-64L-PE_img1

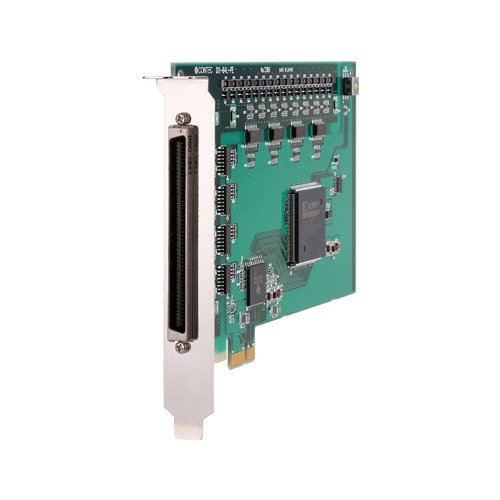

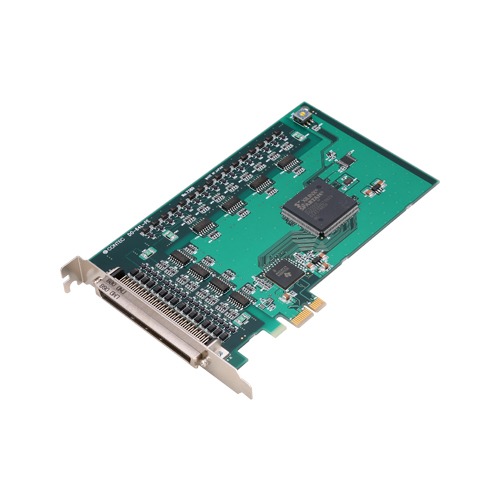

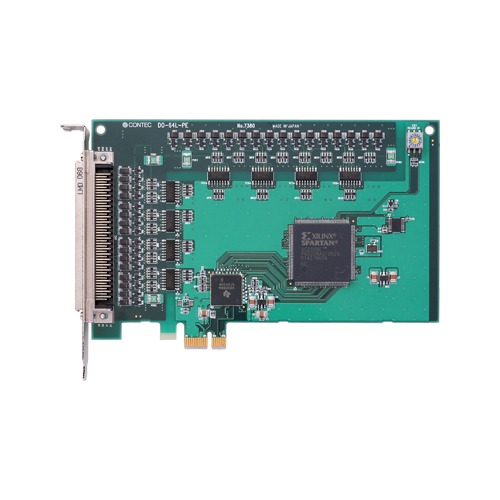

DO-64L-PE

  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • You can use all of the input signals as interrupt events.
  • Windows/Linux support device driver
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DO-64L-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface board for output of digital signals. This product can output digital signals at 12 – 24VDC. DO-64L-PE features 64 opto-coupler isolated open-collector outputs (current sink type). In addition, output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.

    • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
      • DO-64L-PE has the opto-coupler isolated open-collector output 64ch (supporting current sink output) whose response speed is 200μsec. Common terminal provided per 16ch, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O
    • Opto-coupler bus isolation
      • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
    • You can use all of the input signals as interrupt events.
      • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • This product has a digital filter to prevent input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
    • Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.
      • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, overcurrent protection circuits are fitted to each group of 8ch outputs. The output rating is max. 35VDC, 100mA per ch.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector 1.27mm-pitch 96-pin (Male)
    Digital I/O
    Input Channels –
    Output Channels 64-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit –
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DO-64L-PE Digital output PCI Express card 64ch (isolated 12 – 24VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    CM-64L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    DTP-64A Screw Terminal (M3 x 96)
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Other Accessories
    Item Item Name
    CCB-96 Connector conversion card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
