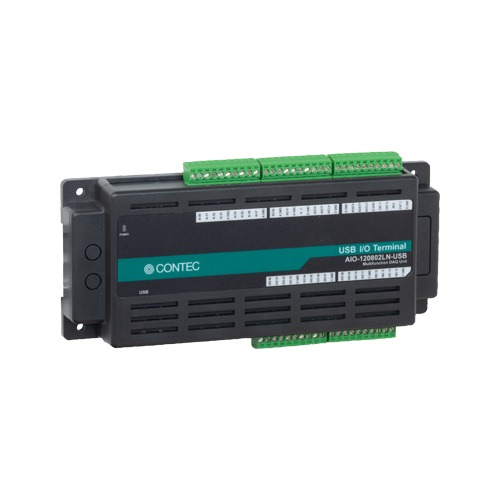

AIO-120802LN-USB

  • Multi-function
  • Analog I/O can be synchronized with an internal or external clock.
  • Digital filter function to prevent wrong recognition of external signal chattering is provided.
  • Buffer memory available for background processing independent of software
  • Compatible to USB2.0/USB1.1
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AIO-120802LN-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a USB2.0-compliant analog I/O unit that extends the analog I/O function of USB port of PCs. Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall.Windows/Linux device driver is supported with the product.

    • Multi-function
      • Analog I/O can be implemented in a compact system. The series consists of two different models from which you can select the best model to suit your application. This product contains the analog input (12bit, 8ch), analog output (12bit, 2ch). This model includes bi-directional digital inputs / outputs (16points, TTL level) and a counter (32bit 1ch, TTL level). You can select the input/output by the application software in eight signals units.
    • Analog I/O can be synchronized with an internal or external clock.
      • Analog I/O can both be performed at fixed time intervals and synchronized with an external signal.
    • Digital filter function to prevent wrong recognition of external signal chattering is provided.
      • This product has analog input / output control signal, digital input signal and digital filter function to prevent it from chattering in counter input signal. (Excluding external clock input signal, counter gate signal)
    • Buffer memory available for background processing independent of software
      • The boards include buffer memory (1K Word each for analog input and output) which can be used in either FIFO or ring format. This allows analog I/O to be performed independently of the operating state of the PC or software.
    • Compatible to USB2.0/USB1.1
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB N(Compact)
    Bus Specification USB
    Size N Type
    Used Connector 5x 3.5mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Single-ended 8-ch (Differential 4-ch)
    Input Range ±10V; ±5V; ±2.5V; 0 to 10V
    ADC Resolution 12-bit
    Sampling Rate 5μsec/ch (max.)
    Input Buffer Memory 1k Word
    Output Channels 2-ch
    Output Range ±10V; ±5V; 0 to 10V; 0 to 5V
    DAC Resolution 12-bit
    Update rate 12μsec (max.)
    Output Buffer Memory 1k Word
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 16点
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up count
    Response speed 5MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AIO-120802LN-USB Analog I/O USB I/O Unit / 8ch AI(12bit 200ks/s) / 2ch AO – N Series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-WaveformGenerator Waveform Generator for Windows
