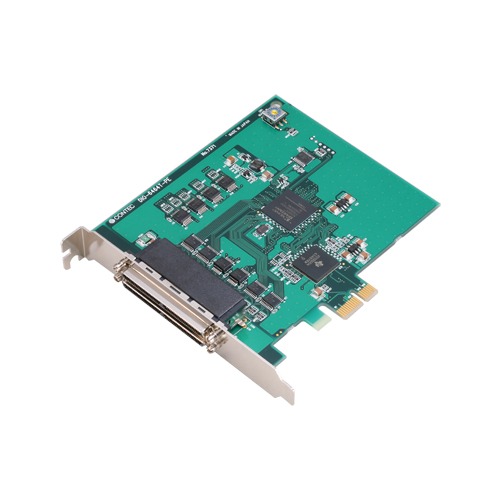

DIO-6464T-PE_img1DIO-6464T-PE_img1

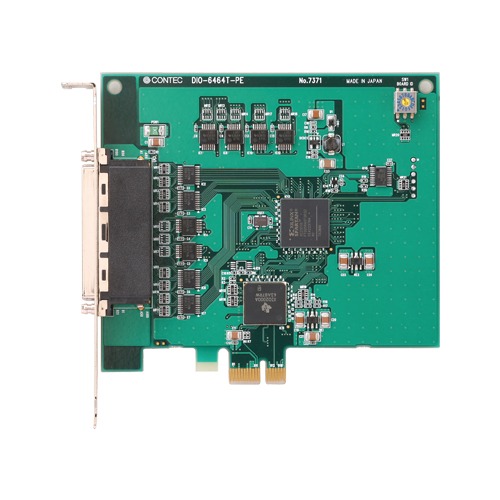

DIO-6464T-PE

  • Unisolated TTL level input, unisolated open-collector output
  • You can use 16 input signals as interrupt request signals.
  • Windows/Linux compatible driver libraries are attached.
  • Functions and connectors are compatible with PCI compatible card DIO-6464T2-PCI
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-6464T-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an Non-isolated interface card of PCI Express bus conformity that perfom input and output of a digital signal (TTL level). It is equipped with 64 points of Non-isolated TTL level input, Non-isolated open collector output 64 points and can use 16 input signals as interrupt. In addition, it is equipped with a digital filter function to prevent misrecognition of an input signal. It attaches a driver library for Windows/Linux as standard equipment and can make the application that is made use of a characteristic of our hardware in.

    • Unisolated TTL level input, unisolated open-collector output
      • The < DIO-6464T-PE > has the 64ch of unisolated TTL level input and 64ch of unisolated open-collector output whose response speed is 200nsec.
        The output rating is max. 30VDC, 40mA per ch.
    • You can use 16 input signals as interrupt request signals.
      • You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
    • Windows/Linux compatible driver libraries are attached.
      • Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • Functions and connectors are compatible with PCI compatible card DIO-6464T2-PCI
      • The functions same with PCI compatible card DIO-6464T2-PCI are provided.
        In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
    • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
      • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector 2x 0.8mm-pitch 100-pin (Female)
    Digital I/O
    Input Channels 64-ch
    Output Channels 64-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-6464T-PE Digital I/O PCI Express card 64ch/64ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-64L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
    PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
    PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
    PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    DTP-64A Screw Terminal (M3 x 96)
    EPD-100A Screw Terminal (M3 x 100)
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Other Accessories
    Item Item Name
    CCB-96 Connector conversion card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
