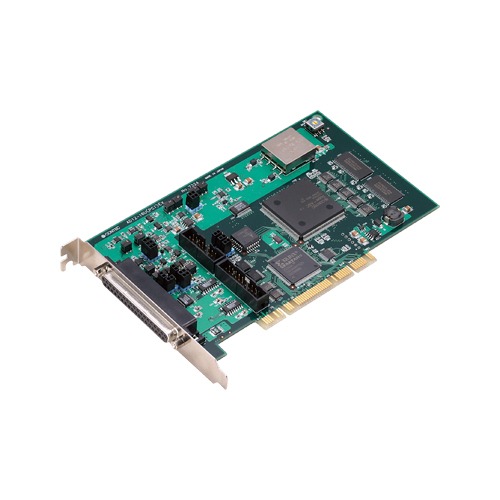

AD12-16(PCI)EV_img1AD12-16(PCI)EV_img1

AD12-16(PCI)EV

  • Resolution : 12-bit, combination speed : 10µsec/ch
  • Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions
  • Sixteen single-ended channels or eight differential channels (Analog input function)
  • Mixed on-board channels for analog output and digital I/O
  • Compact PCI short-size board with a wealth of advanced functions Abundant optional units
  • Software-based calibration function

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AD12-16(PCI)EV Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    It is Interface board of PCI bus conformity which inputs an analog signal, and to do conversion (AD conversion) for digital data. It puts a buffer memory of large-capacity 16M data on analog input department, and sampling it can perform a background in various trigger conditions. It is equipped with one point of analog output, T TL digital input and output for each 4 points. Attachment Drivers for Windows/Linux. In addition, can support data collection that using a data logger soft[C-LOGGER(Attachment)] and no programing, by plug in of an exclusive library (a free download) and can supports MATLAB and LabVIEW too.

    • Resolution : 12-bit, combination speed : 10µsec/ch
      • This product is the type that performs A-D conversion at a conversion speed of 10µsec/ch and a resolution of 12-bit.
        The product has analog input 16ch, analog output 1ch, digital input/output (TTL level: four each), and a counter (32-bit, TTL level 1ch). In addition, the analog input can be set to single-end input 16ch or differential input 8ch, while the counter is commonly used as the digital input/output.
    • Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions
      • FIFO or RING buffer memory for 16M data, allowing sampling to be performed as a background task independent of the processing power of the PC.
        Capable of starting and stopping sampling not only by software commands but depending on the strength of an analog signal (via conversion data comparison) or by detection of a TTL level signal (external trigger).
    • Sixteen single-ended channels or eight differential channels (Analog input function)
      • These boards allow either single-ended or differential input mode that is selected with on-board jumpers. The order of channels subject to signal conversion can be preset in the dedicated register. Using an optional unit, a board can increase the maximum number of input channels (up to 32 channels) and perform simultaneous sampling.
    • Mixed on-board channels for analog output and digital I/O
      • One channel for analog output, four channels for TTL level digital input, and four channels for TTL level digital output mixed on the board.
    • Compact PCI short-size board with a wealth of advanced functions Abundant optional units
      • Providing a variety of options available for extending the functions, including buffer amplifier, simultaneous sampling, insulation & current/thermocouple input, low pass filter, and cables.
    • Software-based calibration function
      • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.

    Specifications

    Specifications
    Add-on Module
    Series Analog E(Intelligent)
    Bus Specification PCI
    Size Short Size
    Used Connector D-SUB 37-pin (Female); 2x Pin header 16-pin (Male)
    Analog I/O
    Input Channels Single-ended 16-ch (Differential 8-ch)
    Input Range ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V; 0 to 1.25V
    ADC Resolution 12-bit
    Sampling Rate 10μsec/ch (max.)
    Input Buffer Memory 16M Word
    Output Channels 1-ch
    Output Range ±10V; ±5V; 0 to 10V
    DAC Resolution 12-bit
    Update rate 6μsec (max.)
    Output Buffer Memory –
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AD12-16(PCI)EV Analog I/O PCI Card / 16ch AI(12bit 100ks/s) / 1ch AO / 3ch Counter – Multifunction DAQ E Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    Expansion Accessory Module
    Item Item Name
    ATBA-16E Buffer Amplifier Function Extension Box for analog input card
    ATCH-16A(PCI) 16Ch Extension sub card
    ATII-8C isolation function extension accessories
    ATLF-8A Gain amplifier function extension accessories
    ATSS-16A Simultaneous sampling function extension accessories
    Cable
    Item Item Name
    DT-E3 16pin post header -> D-SUB 15pin Bracket with Cable(150mm)
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB15PS-P 15pin D-type(M) at Each-End, Shield Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
    PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)
    PCD8PS-1.5 2 wire Shield Cable for 8ch Differential Input (1.5m)
    PCD8PS-3 2 wire Shield Cable for 8ch Differential Input (3m)
    Terminal
    Item Item Name
    ATP-16E BNC Connectors terminal box for Analog I/O Card
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    FTP-15 Screw Terminal (M3 x 15)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
