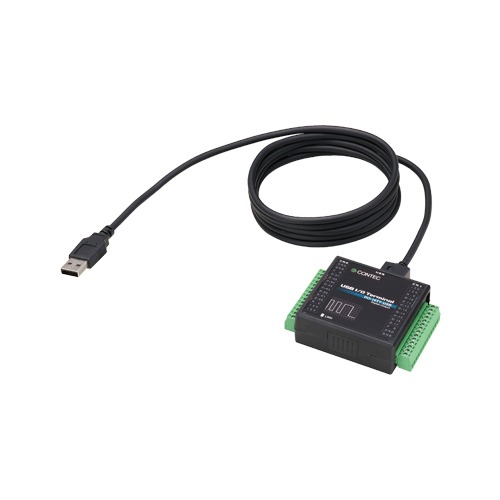

DO-16TY-USB

  • Unisolated open-collector output
  • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
  • Surge absorption diodes are built in the output circuit for surge voltage protection
  • Easy-to-wire terminal connector adopted
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DO-16TY-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a USB 2.0 compliant terminal that extends the digital signal output functions of a PC. Being bus-powered, it does not need an external power supply.DO-16TY-USB has the 16ch of unisolated open-collector output. In addition, it uses a protection circuit (surge protection) as its Output circuit as well as an easily-wired terminal connector. Windows/Linux device driver is supported with this product.

    • Unisolated open-collector output
      • DO-16TY-USB has the 16ch of unisolated open-collector output whose response speed is 200nsec. The output rating is max. 28VDC, 40mA per ch.
    • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at High Speed (480 Mbps). Not necessary to power this product externally as the bus power of USB is used.
    • Surge absorption diodes are built in the output circuit for surge voltage protection
      • DO-16TY-USB has a surge absorption diode connected to the +5V output pin at each output point to protect against surge voltages.
    • Easy-to-wire terminal connector adopted
      • Adoption of terminal connector (with screws) enables to achieve easy wiring.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB Y(Mobile)
    Bus Specification USB
    Size Y Type
    Used Connector 2x Screw terminal block 14-pin
    Digital I/O
    Input Channels –
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit –
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DO-16TY-USB Digital output USB I/O unit 16ch (non-isolated 5VDC-TTL) – the Y series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-USBP(WDM) Windows version Driver Library for USB module
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Other Accessories
    Item Item Name
    BRK-USB-Y Bracket for USB I/O Terminal products
    CN6-Y14 14 pin Terminal connector(screw type) 6/set
