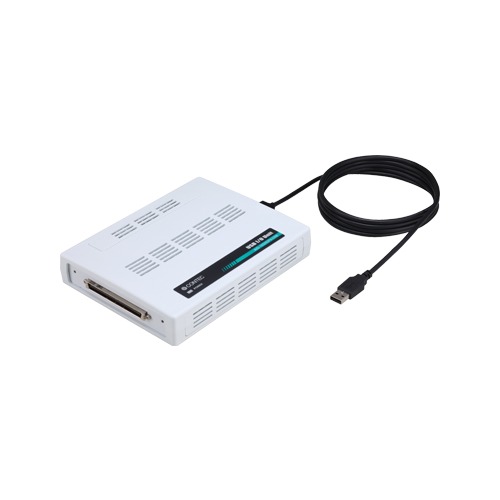

AIO-163202FX-USB

  • Multi-function
  • Built-in event controller for advanced synchronization control
  • USB HUB function
  • Compatible with PCI / PCI Express bus board in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board.
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AIO-163202FX-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a USB2.0-compliant analog I/O unit that extends the analog I/O function of USB port of PCs. This product features high-precision 16bit analog inputs (32channels), high-precision 16bit analog outputs (2channels),digital I/O (LVTTL level each 8channels), and a counter (32bit binary, LVTTL level 2channels) function. This product includes an event controller for integrated management of control signals by hardware and buffer memory (128k data). Together, these features provide all you need to build a high-performance PC-based measurement and control system.

    • Multi-function
      • The unit contains analog inputs (16bit, 32channels), analog outputs (16bit, 2channels), digital inputs (LVTTL level 8channels), digital outputs (LVTTL level 8channels), and counters (32bit binary, LVTTL level 2channels). Combining all these features on one unit allows complex systems to be implemented even on PCs with USB port only.
    • Built-in event controller for advanced synchronization control
      • The built-in event controller enables integrated management of the triggers and statuses of each signal input and output, enabling hardware-level synchronization control of signal inputs and outputs. As a result, the product is ideal for factory automation and mixed-signal testing applications requiring low-latency, real-time responsiveness.
    • USB HUB function
      • This product has the USB HUB function. Max. 4 products can be used in 1 USB port of PC. When you use 4 or more products, you can do by connecting products to the another USB port of PC side. Also, you can connect the CONTEC’s USB device other than products to the USB port of products.
    • Compatible with PCI / PCI Express bus board in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board.
      • This product has the common connector shape and pin assignment with PCI bus board ADA16-32/2(PCI)F, PCI Express bus board AIO-163202F-PE so you can use the common cables and accessories, it is easy to migrate from the existing system.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series Analog F(Multi-function); USB X(Mass connector)
    Bus Specification USB
    Size X Type
    Used Connector 1.27mm-pitch 96-pin (Male)
    Analog I/O
    Input Channels Single-ended 32-ch (Differential 16-ch)
    Input Range ±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; 0 to 2.5V
    ADC Resolution 16-bit
    Sampling Rate 2μsec/ch (max.)
    Input Buffer Memory 128k Word
    Output Channels 2-ch
    Output Range ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 128k Word
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 2-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AIO-163202FX-USB Analog I/O USB I/O Unit / 32ch AI(16bit 500ks/s) / 2ch AO / 2ch Counter – Multifunction DAQ F Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    C-WaveformGenerator Waveform Generator for Windows
    Expansion Accessory Module
    Item Item Name
    ATBA-32F Buffer Amplifier Function Extension Box for analog input card
    ATBA-8F Buffer Amplifier Function Extension Box for analog input card
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Terminal
    Item Item Name
    ATP-32F BNC Connectors for Analog I/O Card
    ATP-8 BNC Connector Accessory for Analog I/O Card
    DTP-64A Screw Terminal (M3 x 96)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Power Supply / AC Adapter
    Item Item Name
    POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
    POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    Other Accessories
    Item Item Name
    BRK-USB-X USB I/O Unit Bracket for X series
