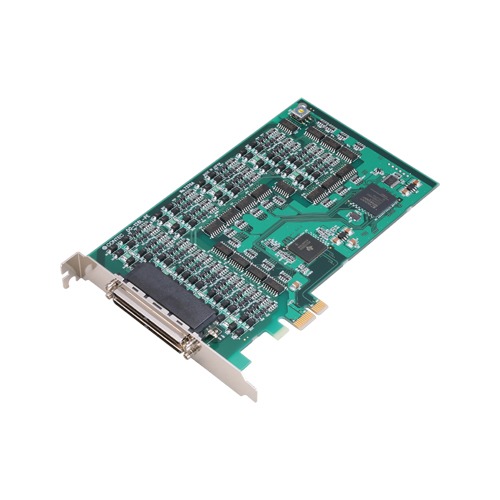

DO-128L-PE_img1DO-128L-PE_img1

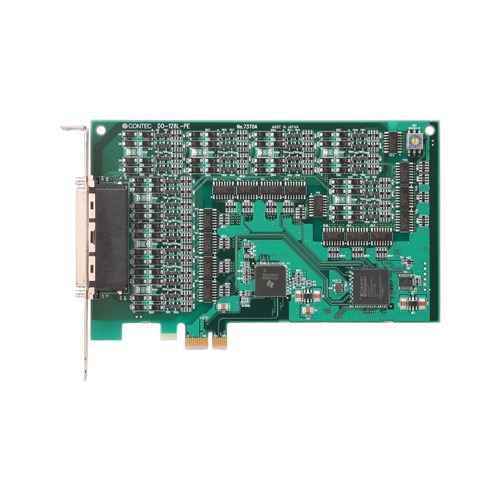

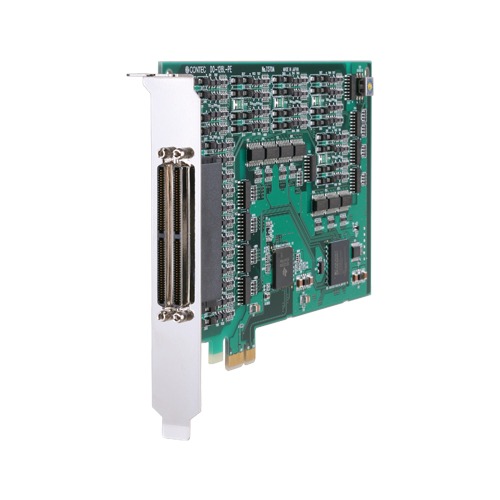

DO-128L-PE

  • Opto-coupler isolated open-collector outputs (current sink type)
  • Opto-coupler bus isolation
  • Windows/Linux support device driver
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Functions and connectors are compatible with PCI compatible card

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DO-128L-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface board for output of digital signals. This product can output digital signals at 12 – 24VDC. DO-128L-PE features 128 opto-coupler isolated open-collector outputs (current sink type). In addition, output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.

    • Opto-coupler isolated open-collector outputs (current sink type)
      • DO-128L-PE card has 128ch opto-coupler isolated open-collector output with a 200?sec response time (current sink type). A separate common ground is provided for each block of 16ch inputs which means that each block can connect to a different external power supply. The drive voltage for both the inputs and outputs is 12 – 24VDC.
    • Opto-coupler bus isolation
      • As the PCI Express bus (PC) is isolated from external signals by opto-couplers, this product has excellent noise torelance.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
      • Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, polyswitches are fitted to each group of 8ch outputs for over-current protection. Output rating : max 35VDC, 100mA per channel.
    • Functions and connectors are compatible with PCI compatible card
      • The functions same with PCI compatible card PO-128L(PCI)H are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector 2x 0.8mm-pitch 100-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels 128-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit –
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DO-128L-PE Digital output PCI Express card 128ch (isolated 12 – 24VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    CM-64L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
    PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
    PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
    PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    DTP-64A Screw Terminal (M3 x 96)
    EPD-100A Screw Terminal (M3 x 100)
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Other Accessories
    Item Item Name
    CCB-96 Connector conversion card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
