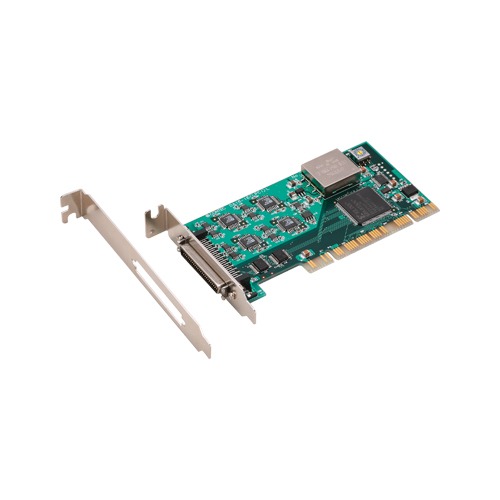

DA16-16(LPCI)L is a PCI-compliant interface board that incorporates high-precision 16-bit analog outputs, digital I/O(TTL level, 4 channels each), and a counter (32bit, 1ch) function. DA16-16(LPCI)L supports a low-profile size slot and, if replaced with the included bracket, supports a standard size slot, too. DA16-16(LPCI)L can make your space-saving PC into a cost-effective analog output system. Using bundled API function library package [API-PAC(W32)], you can create Windows application software for this board in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++. With plug-ins for the dedicated libraries, the board also supports MATLAB and LabVIEW.
| Series | Analog L(Low-cost&Multi-function) |
|---|---|
| Bus Specification | PCI |
| Size | Low Profile |
| Used Connector | Miniature ribbon 50-pin |
| Input Channels | – |
|---|---|
| Input Range | – |
| ADC Resolution | – |
| Sampling Rate | – |
| Input Buffer Memory | – |
| Output Channels | 16-ch |
| Output Range | ±10V |
| DAC Resolution | 16-bit |
| Update rate | 10μsec (max.) |
| Output Buffer Memory | 1k Word |
| Input Channels | 4-ch |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Positive logic) |
| Output Circuit | Non-isolated TTL level output (Positive logic) |
| Built-in Power Supply | – |
| Number of Channels | 1-ch |
|---|---|
| Counting System | 32-bit Up count |
| Response speed | 10MHz |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| DA16-16(LPCI)L | Analog Output Low Profile PCI Card /16ch AO(16bit 100ks/s) / 1ch Counter – Multifunction DAQ L Series |
|
| Item | Item Name |
|---|---|
| API-AIO(LNX) | Analog I/O Driver for Linux |
| API-AIO(WDM) | Windows version High-efficiency Analog I/O Driver |
| API-TIMER(W32) | Timer Driver |
| API-TIMER(WDM) | Windows Driver for Timer Driver |
| IO-LIB(WDM) | Windows General-purpose I/O Driver |
| Item | Item Name |
|---|---|
| ACX-PAC(W32) | ActiveX components sets for measurement system development |
| ACX-PAC(W32) Express Edition | ActiveX Component for Measurement System |
| DAQ-DNC-FE | A collection of .NET components for DAQfast measurement system development. |
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| ML-DAQ | MATLAB compliant Data Acquisition Library |
| VI-DAQ | VI Library of data acquisition for LabVIEW |
| Item | Item Name |
|---|---|
| C-WaveformGenerator | Waveform Generator for Windows |
| Item | Item Name |
|---|---|
| PCA50PS-P | 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type) |
| PCB50PS-P | Both sides with connector shield cable for 50pin miniature ribbon connectors |
| Item | Item Name |
|---|---|
| EPD-50A | Screw Terminal (M3 x 50) |
| Item | Item Name |
|---|---|
| ESP-F6 | Extended warranty service package (6 years service course) (Japan only) |
