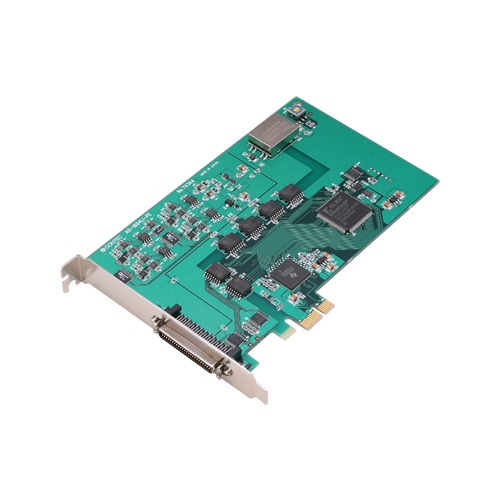

AO-1604LI-PE

  • Bus isolated high precision analog output 4 channels, each 4 channels for digital I/O, counter 1 channel
  • Functions and connectors are compatible with PCI compatible card DAI16-4(LPCI)L
  • Bus isolation between PC and external analog output circuit by a digital isolator
  • The start/end of sampling can be controlled by software, an external trigger, etc.
  • Safety design to adjust output voltage to 0V when power supply is turned on

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AO-1604LI-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface card used to provide an analog signal output function on a PC. It features bus isolated 16-bit analog output 4 channels. Equipped with digital I/O and counter, this product is multifunction and bus isolated type that provides isolation between PC and external analog I/O circuit. This product carries buffer memory for 1K of data, allowing sampling to be performed in a variety of trigger / clock conditions. Windows/Linux driver and full-fledged data logger software [C-LOGGER] is bundled with this product.

    • Bus isolated high precision analog output 4 channels, each 4 channels for digital I/O, counter 1 channel
      • This product has analog output (10uSec, 16-bit, 4 channels), analog output control signal (TTL level 3 channels), digital I/O (each 4 channels for TTL level), counter (32-bit, TTL level 1 channel).
    • Functions and connectors are compatible with PCI compatible card DAI16-4(LPCI)L
      • The functions same with PCI compatible card DAI16-4(LPCI)L are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
    • Bus isolation between PC and external analog output circuit by a digital isolator
      • Isolation between PC and external analog output circuit by a digital isolator improves noise performance.
    • The start/end of sampling can be controlled by software, an external trigger, etc.
      • You can select from software, comparison of conversion data or an external trigger to control the start of sampling. You can select from completion of sampling for a specified number of sessions, comparison of conversion data, an external trigger or software to control the end of sampling. The sampling cycle can be selected from the internal clock or an external clock..
    • Safety design to adjust output voltage to 0V when power supply is turned on
      • To prevent the unstable voltage and the connected device of D/A converter from fault and malfunctions when the power supply is turned on, the circuit is designed to adjusts output voltage of the analog output to 0V.

    Specifications

    Specifications
    Add-on Module
    Series Analog L(Low-cost&Multi-function)
    Bus Specification PCI Express
    Size Short Size
    Used Connector Miniature ribbon 50-pin
    Analog I/O
    Input Channels –
    Input Range –
    ADC Resolution –
    Sampling Rate –
    Input Buffer Memory –
    Output Channels 4-ch
    Output Range ±10V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 1k Word
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up count
    Response speed 1MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AO-1604LI-PE Analog Output PCI Express Card / 4ch AO (16bit 100ks/s) / 1ch Counter / Bus Isolation – Multifunction DAQ L Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Applications
    Item Item Name
    C-WaveformGenerator Waveform Generator for Windows
    Cable
    Item Item Name
    PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
    PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
    Terminal
    Item Item Name
    ATP-8L BNC connectors for Analog I/O Card
    EPD-50A Screw Terminal (M3 x 50)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
