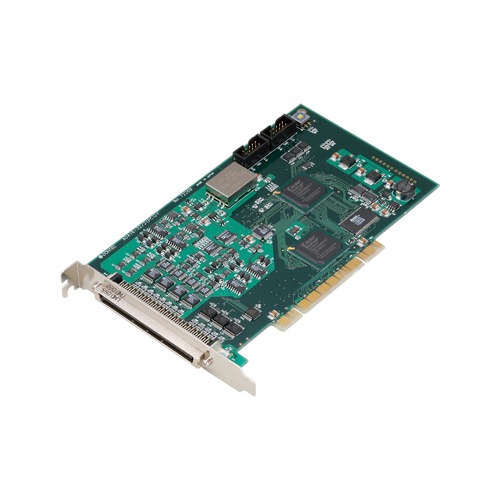

ADA16-322(PCI)F_img1ADA16-322(PCI)F_img1

ADA16-32/2(PCI)F

  • The event controller can be used to implement a wide range of different sampling control schemes
  • Bus master transfer function and combined data I/O function
  • Buffer memory available for background processing independent of software
  • Software-based adjustment function
  • Filter function for easy connection of external signals
  • Windows/Linux support device driver
Request Quote


    Email Verification Code (required)



    SKU: ADA16-32/2(PCI)F Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a multi-function, PCI bus compliant interface board that incorporates high-precision analog inputs, high- precision analog outputs, digital inputs, digital outputs, and a counter function. The board includes an event controller for integrated management of control signals by hardware and a bus master data transfer function for transferring large volumes of data at high speed. Together, these features provide all you need to build a high-performance PC-based measurement and control system.Windows/Linux device driver is supported with this product.

    • The event controller can be used to implement a wide range of different sampling control schemes
      • The board incorporates an event controller for integrated hardware control. The event controller can use the external control signals and the events generated by the board functions to start and stop analog input operation and perform clock control. This enables high-precision synchronization of the various board functions without requiring software. Also, each function can be operated separately.
    • Bus master transfer function and combined data I/O function
      • Bus master data transfer can be used for the analog inputs and outputs either separately or at the same time. This can be used to transfer large volumes of data between the board and PC without placing a load on the CPU. When using bus master data transfer for analog input data, you can also transfer the analog output, digital input, digital output, and counter data at the same time synchronized with the analog input clock signal. This function ensures reliable data synchronization in the systems you implement.
    • Buffer memory available for background processing independent of software
      • The analog inputs and outputs each have their own buffer memory which can be used when not using bus master transfer. You can also perform analog input and output in the background, independent of software and the current status of the PC.
    • Software-based adjustment function
      • Adjustment of analog input can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment
    • Filter function for easy connection of external signals
      • The digital input signals, counter input signals, and the external control signals for analog I/O incorporate a digital filter to prevent problems such as chattering.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series Analog F(Multi-function)
    Bus Specification PCI
    Size Short Size
    Used Connector 1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male)
    Analog I/O
    Input Channels Single-ended 32-ch (Differential 16-ch)
    Input Range ±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; 0 to 2.5V
    ADC Resolution 16-bit
    Sampling Rate 2μsec/ch (max.)
    Input Buffer Memory 64k Word
    Output Channels 2-ch
    Output Range ±10V; ±5V; ±2.5V; ±1.25V; 0 to 10V; 0 to 5V; 0 to 2.5V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 64k Word
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 2-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    ADA16-32/2(PCI)F Analog I/O PCI Card / 32ch AI(16bit 500ks/s) / 2ch AO / 2ch Counter – Multifunction DAQ F Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    C-WaveformGenerator Waveform Generator for Windows
    Expansion Accessory Module
    Item Item Name
    ATBA-32F Buffer Amplifier Function Extension Box for analog input card
    ATBA-8F Buffer Amplifier Function Extension Box for analog input card
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    Terminal
    Item Item Name

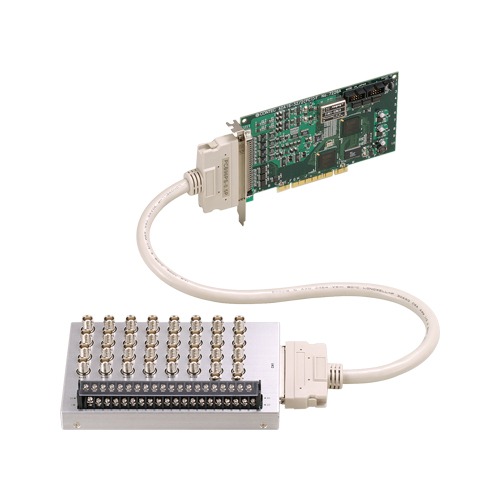

    ATP-32F BNC Connectors for Analog I/O Card
    ATP-8 BNC Connector Accessory for Analog I/O Card
    DTP-64A Screw Terminal (M3 x 96)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
