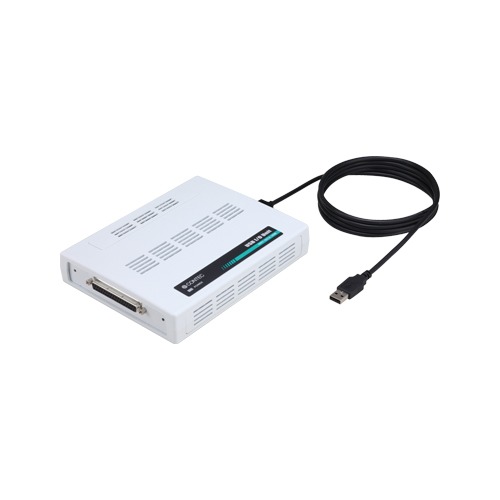

RRY-16CX-USB_img1RRY-16CX-USB_img1

RRY-16CX-USB

  • 16 independent common reed relay contact outputs (with a single make contact)
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • USB HUB function
  • Windows compatible driver libraries are attached.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: RRY-16CX-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

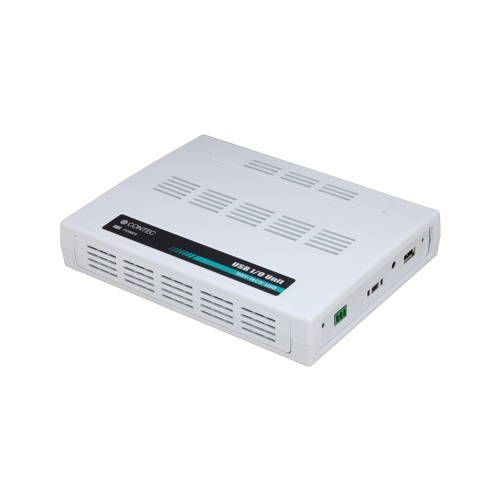

    This product is an USB2.0-compliant digital output unit that output signals to reed relay contacts. This product provides up to 16 independent common reed relay contact outputs. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel. As there is compatible with PCI bus-compatible board RRY-16C(PCI)H and PCI Express bus-compatible board RRY-16C-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. Windows driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

    • 16 independent common reed relay contact outputs (with a single make contact)
      • This product has 16 reed relay outputs with a single make contact. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel.
    • Connectors are compatible with PCI/PCI Express bus-compatible board
      • As there is compatible with RRY-16C(PCI)H and RRY-16C-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. If the system of this product is created by the digital I/O driver API-DIO(98/PC), it is required to replace it with API-DIO(WDM).
    • USB HUB function
      • This product has the USB HUB function. Max. 4 RRY-16CX-USB can be used in 1 USB port of PC. When you use 4 or more RRY-16CX-USB, you can do by connecting RRY-16CX-USB to the another USB port of PC side. Also, you can connect the CONTEC’s USB device other than RRY-16CX-USB to the USB port of RRY-16CX-USB.
    • Windows compatible driver libraries are attached.
      • Using the attached digital I/O driver API-DIO(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB X(Mass connector)
    Bus Specification USB
    Size X Type
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) ON: 7msec (max.) / OFF: 6msec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) to 125VAC / to 30VDC
    Input Circuit –
    Output Circuit Reed relay contact output
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    RRY-16CX-USB Reed relay contact output USB I/O unit 16ch (isolated – 125VAC – 30VDC) – the X series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3A Screw Terminal (M3 x 37)
    DTP-3C General Purpose Terminal
    DTP-4A Screw Terminal (M2.6 x 37)
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    Power Supply / AC Adapter
    Item Item Name
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    Other Accessories
    Item Item Name
    BRK-USB-X USB I/O Unit Bracket for X series
