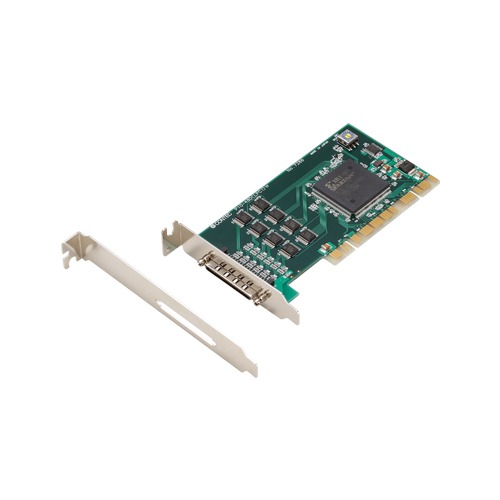

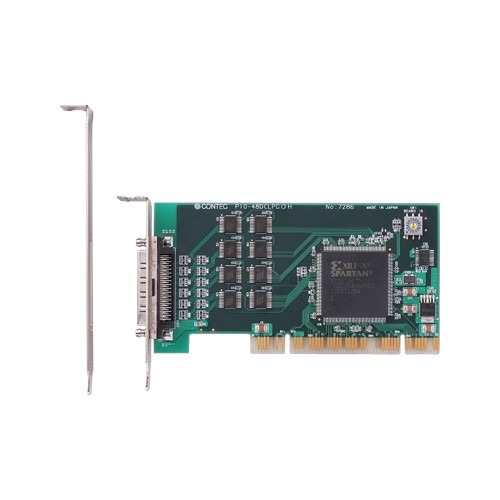

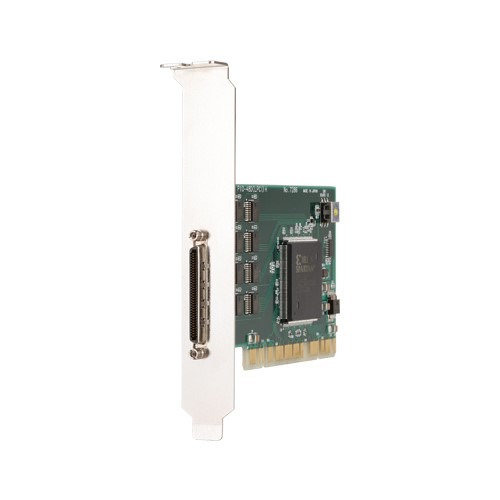

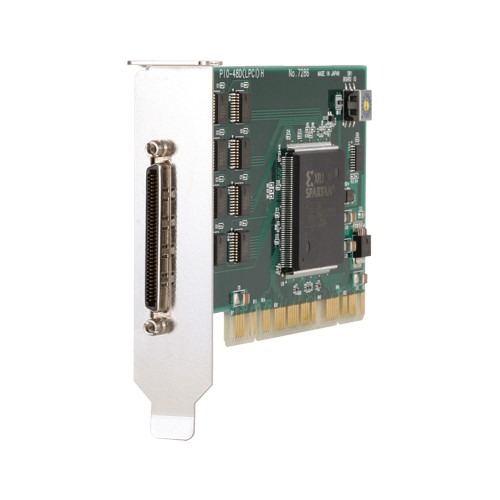

PIO-48D(LPCI)H

  • This board can be used to TTL-level input/output 48 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
  • You can use up to 48channels of the input signals as interrupt events.You can use up to
  • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering
  • Windows/Linux support device driver
  • Connectors are compatible with CardBus compatible card PIO-48D(CB)H
  • Support for both of Low Profile and standard size slots

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PIO-48D(LPCI)H Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a Low Profile size PCI bus-compliant interface board that extends the input/output function of bi-directional digital signal. This product is equipped with 48 non-isolated TTL level inputs/outputs that operate equivalent to i8255 mode 0. All input signals can be used as interrupt inputs. You can select the input/output by the application software in eight signals units (in four signals unit for some inputs/outputs). In addition, this product is equipped digital filtering.Windows/Linux device driver is supported with this product.

    • This board can be used to TTL-level input/output 48 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
      • This board can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated TTL-level input/output enabling fast response.
    • You can use up to 48channels of the input signals as interrupt events.You can use up to
      • You can use up to 48channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the edge of signals, at which to generate an interrupt.
    • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering
      • This product has a digital filter function to prevent wrong recognition of input signals by noise or chattering is provided. All input terminals can be added a digital filter, and the setting can be performed by software.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.Connectors are compatible with CardBus compatible card.
    • Connectors are compatible with CardBus compatible card PIO-48D(CB)H
      • The functions same with CardBus compatible card PIO-48D(CB)H are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system. When the DIO-68M/96F is used, connector shape and pin assignments is compatible with the PIO-48D(PCI).
    • Support for both of Low Profile and standard size slots
      • Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket).

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI
    Size Low Profile
    Used Connector 0.8mm-pitch 68-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 48-ch
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Positive logic)
    Output Circuit Non-isolated TTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    PIO-48D(LPCI)H Digital I/O Low Profile PCI card bi-directional 48ch (non-isolated 5VDC-TTL)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(98/PC) Windows version Digital I/O Driver
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Cable
    Item Item Name
    DIO-68M/96F Shielded Cable for Digital I/O Card for CardBus (0.5m)
    PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
    PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors
    Terminal
    Item Item Name
    DTP-64A Screw Terminal (M3 x 96)
    EPD-68A Screw Terminal (M3 x 68)
    EPD-96 Screw Terminal (M3.5 x 96)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
