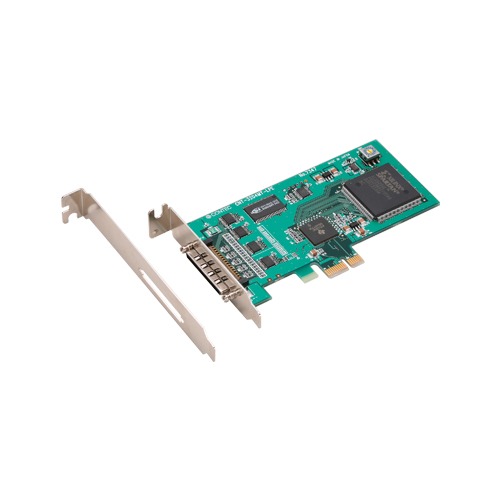

CNT-3204MT-LPE_img1CNT-3204MT-LPE_img1

CNT-3204MT-LPE

  • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
  • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
  • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
  • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CNT-3204MT-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

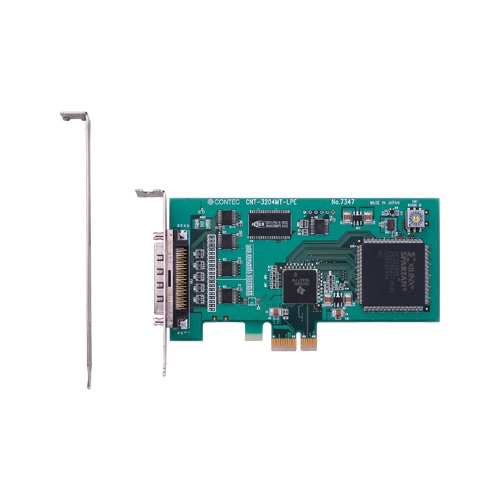

    It is an interface card for PCI Express bus conformity. it can count a pulse signal from an outside device input. 32 bits up/down counter has 4 channel. It is connected to a rotary encoder, a linear scale and can use it. Input interface of a pulse signal is the Non-isolated LVTTL level input that can input a high-speed pulse signal. The high-speed data transmission between A card and PCs are possible by bus master transfer. Attachment Windows version driver(API-PAC(W32)).

    • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
    • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
    • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
    • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification PCI Express
    Size Low Profile
    Used Connector 0.8mm-pitch 68-pin (Female)
    Counter
    Number of Channels 4-ch
    Counting System 32-bit Up/Down count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    CNT-3204MT-LPE Counter Low Profile PCI Express card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-CNT(WDM) Windows Driver for Counter Input Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CTP-4D Termination Panel with Differential Receivers for Counter Input
    Cable
    Item Item Name
    CNT-68M/50M Shield Cable for Counter Input Card for CardBus
    PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
    PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors
    Terminal
    Item Item Name
    EPD-50A Screw Terminal (M3 x 50)
    EPD-68A Screw Terminal (M3 x 68)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
