xDIM for Windows Tablet

xDIM Mobile Dimensioner

Modern, Mobile, Multi-Mode Dimensioning

Precision anywhere.

xDIM is a modern dimensioning system that quickly and accurately captures dimensions of boxes, irregulars, small items, flats, and pallets anywhere.

With xDIM, you’re not just collecting measurements—you’re becoming a Dimensionalizer, equipped to streamline workflows, eliminate guesswork, and drive smarter logistics decisions.

This mobile solution is compliant with NMFC code standards, NTEP-certified and enables an entirely new workflow with the ability to capture all necessary data including dimensions, weights and pictures at the product location—even at the upper levels of your shelving. No more bringing items to-and-from a stationary dimensioner.

Ditch the Fixed Dimensioner

xDIM goes where you go—whether you’re near the rafters or on the warehouse floor.

Increase Mobility & Agility

Measure items (lxwxh) and collect DIM data at product location, no more moving to-and-from a dimensionalizing system. Capture all pertinent item data in a single application with a multi-functional rugged device.

Improve Revenue & Cut Costs

Reduce shipping surcharges with reliable, accurate dimensional data. Retire costly, stationary single-mode dimensioners from your workflow. Also unlock density-based pricing for maximum cost efficiency and improve your NMFC code rates.

Optimize Space & Time

Enhance warehouse slotting and storage space utilization. Improve TI-HI pallet configuration with accurate dimensions. Ideal for LTL carriers and 3PL providers.

Modernize Workflows

View data in real time and integrate with existing WMS or PIMS system. Segment and identify items quickly and accurately with Computer Vision, Artificial Intelligence and Machine Learning.

Webinar: 3X the Speed, 1/3 the Cost - Mobile Dimensioning Anywhere, Anytime

View our webinar on April 2025 to discover how mobile dimensioning outperforms fixed systems by speed, cost, and ROI. Boost your operational efficiency by enabling dimensioning anywhere.

View Webinar
Mobile Dimensioning Features

Customizable Data Capture Fields

Quickly collect accurate item master data in a single application with xDIM.

Multi-Mode

Seamlessly switch between five dimensioning methods.

Barcode Scanning

Scan item barcode with integrated or wearable scanner.

Actual Weight

Connect the xScale S200 via Bluetooth for mobile weighing.

DIM Weight

Pre-load carrier divisors for DIM weight calculation.

Text/Numerical Field

Enter specific product information.

Unit of Measurement

Choose between each, pack, or case.

Image Capture

Capture up to six images for chain of custody support.

Erase Background

Instantly remove image background for ecommerce and product catalogs.

Common Applications

xDIM Use Cases

Warehouse Slotting

Organize storage space as efficiently as possible and delay facility expansion.

Outbound Shipping

Prevent surcharges and reclassification fees by capturing precise dimensions – supporting accurate freight class determination in line with NMFC guidelines.

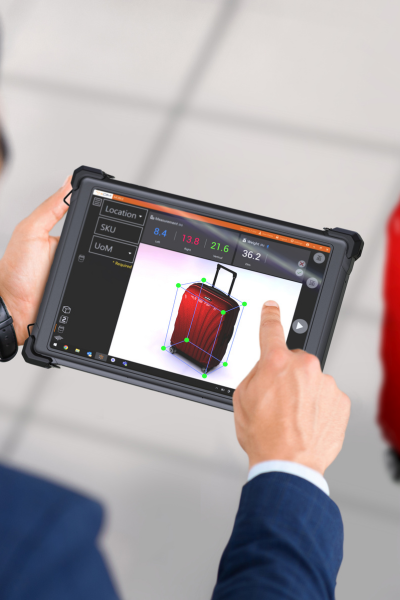

Airline Baggage

Verify carry-on and checked bag dimensions size.

Airline Cargo

Verify supplied cargo dimensions size. Capture images for chain of custody support.

Reverse Logistics

Capture dimensions when receiving incoming returns to replace packaging for resale.

Parcel and Pallet Pickup

Confirm dimensions at parcel or pallet pickup to charge accurate postage, express, or freight fees – aligned with NMFC standards to support LTL compliance and help avoid costly reclassification.

Inventory Audits

Validate incoming and existing item dimensions.

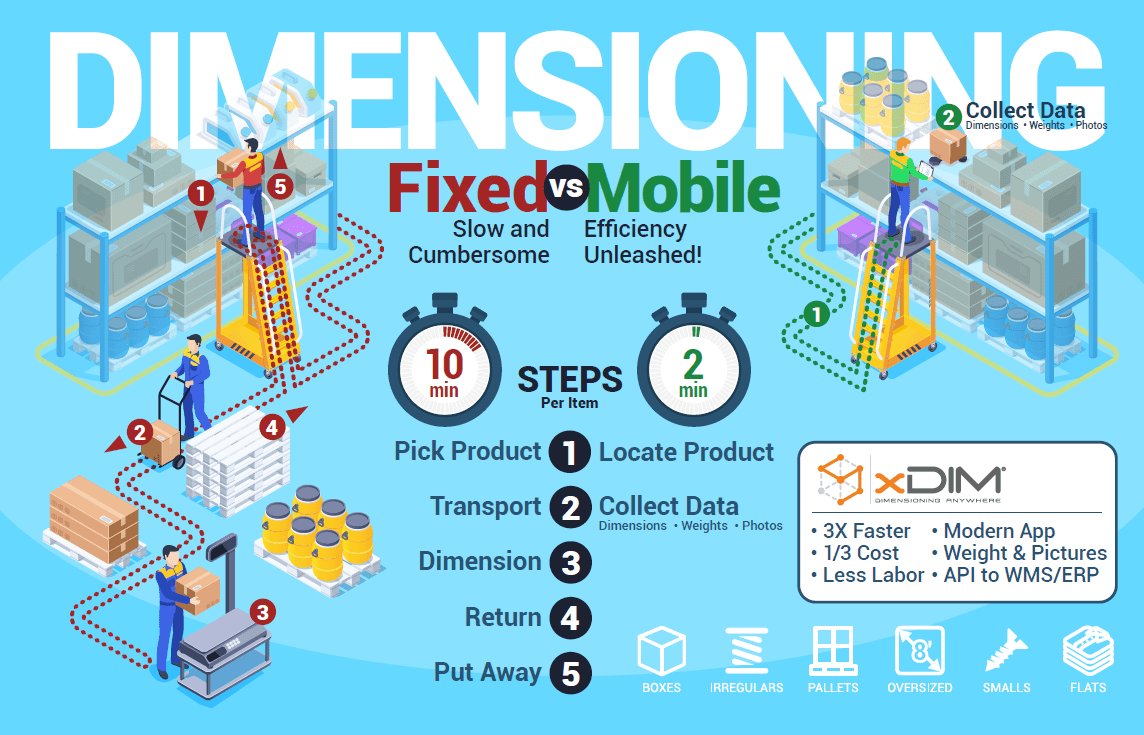

Calculate Your Mobile Dimensioning ROI

See how mobile stacks up. Our ROI calculator shows how switching from fixed systems to mobile dimensioning can save you up to 1/3 of the cost while working 3x faster. Backed by real-time data and real-world results, it’s the easiest way to visualize the time and money mobile can save your operation—right where the work happens.

Calculate Now

Boxes

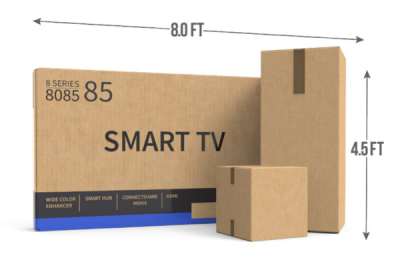

The original xDIM captures small to medium sized box dimensions in under a second by aiming a rugged tablet at the corner of a box. For larger boxes like TVs, furniture and appliances, use the 2-step method.

Measurement capacity: 3-inches to 48-inches (4-feet) NTEP Certified, Legal for Trade.

Large boxes: 48-inches (4 feet) to 96-inches (8 feet)

Pallets

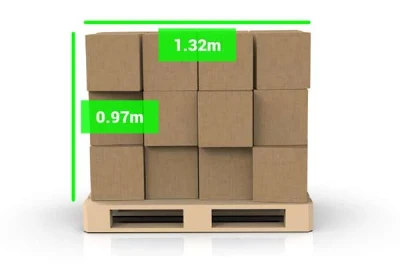

xDIM for pallets uses an AI-powered two-step method, by aiming a rugged tablet at the front, then side of the pallet. Ideal for storage optimization and freight classification, the software captures cleanly stacked, square payload pallets as well as non-square items such as barrels or stacks of piping. Measurements are aligned with NMFC standards, helping shippers ensure LTL compliance and avoid costly reclassification.

Measurement capacity: Up to 96-inches (8 feet)

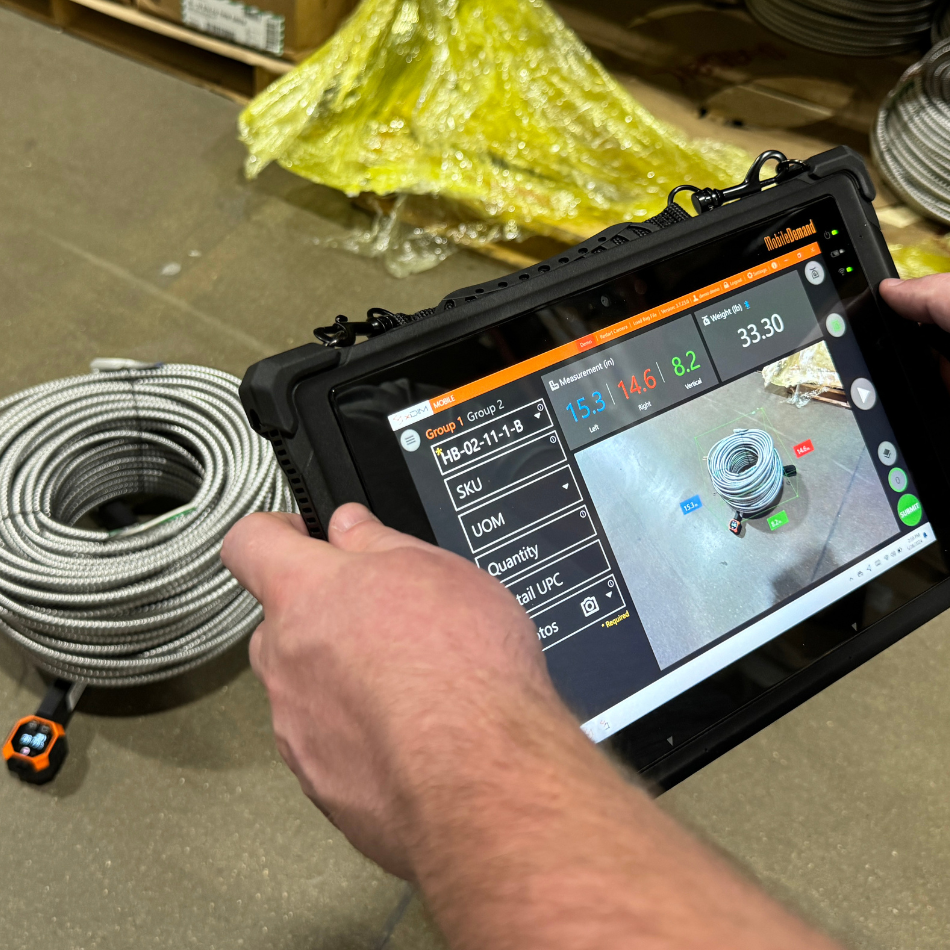

Irregulars

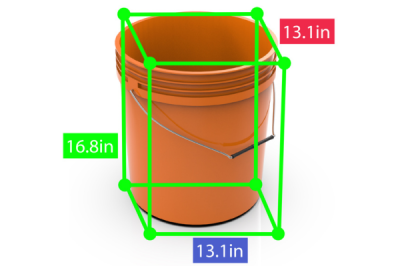

xDIM for irregular items can dimension objects of any shape using a bounding box. The software can group multiple items into a single bounding box for added convenience. Ideal for capturing dimensions of eaches, inner packs, and case packs as well as poly-mailers and padded envelopes.

Measurement capacity: 2-inches to 48-inches (4 feet)

Small Items

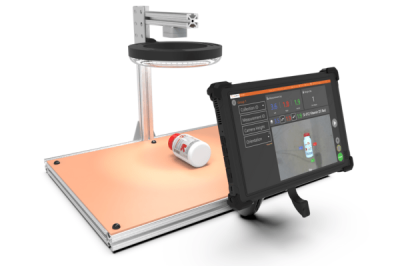

Small items such as pill bottles, gum, candy and even nuts and bolts can be dimensioned using the xDIM booth. The lightweight, aluminum frame, ring light and 3D camera combine with a mounted rugged tablet for instant dimension capture. Place the booth on a cart for full mobility throughout the facility.

Measurement capacity: 0.4-inches to 6-inches (1-2mm accuracy)

FAQs

Commonly Asked Questions

What types of items can be dimensioned by xDIM?

xDIM can dimension standard and oversized boxes, irregular items, small items and pallets.

What size objects can be dimensioned?

xDIM can capture dimensions of items as small as 0.4-inches up to 8-feet.

What hardware is compatible with xDIM?

xDIM is compatible with the MobileDemand rugged xTablet T1175 integrated with an Intel® RealSense™ Depth Camera. Additional add-ons include integrated or wearable barcode scanners, portable scales and mounting equipment.

Can the divisor be changed in the DIM weight calculation?

Yes, custom divisors for specific parcel carriers can be pre-loaded into the xDIM software.

Does xDIM use metric or imperial units?

Both – easily switch between metric or imperial data output.

Is xDIM Legal for Trade Certified?

Yes, xDIM for Standard Boxes is NTEP Certified as Legal for Trade within a half-inch (0.5-inch) accuracy. Certificate Number: 21-041.

How can I test xDIM in my own operations?

Contact our sales team to schedule a demo call.

xScale S200

Mobile Weighing - xDIM Added Value

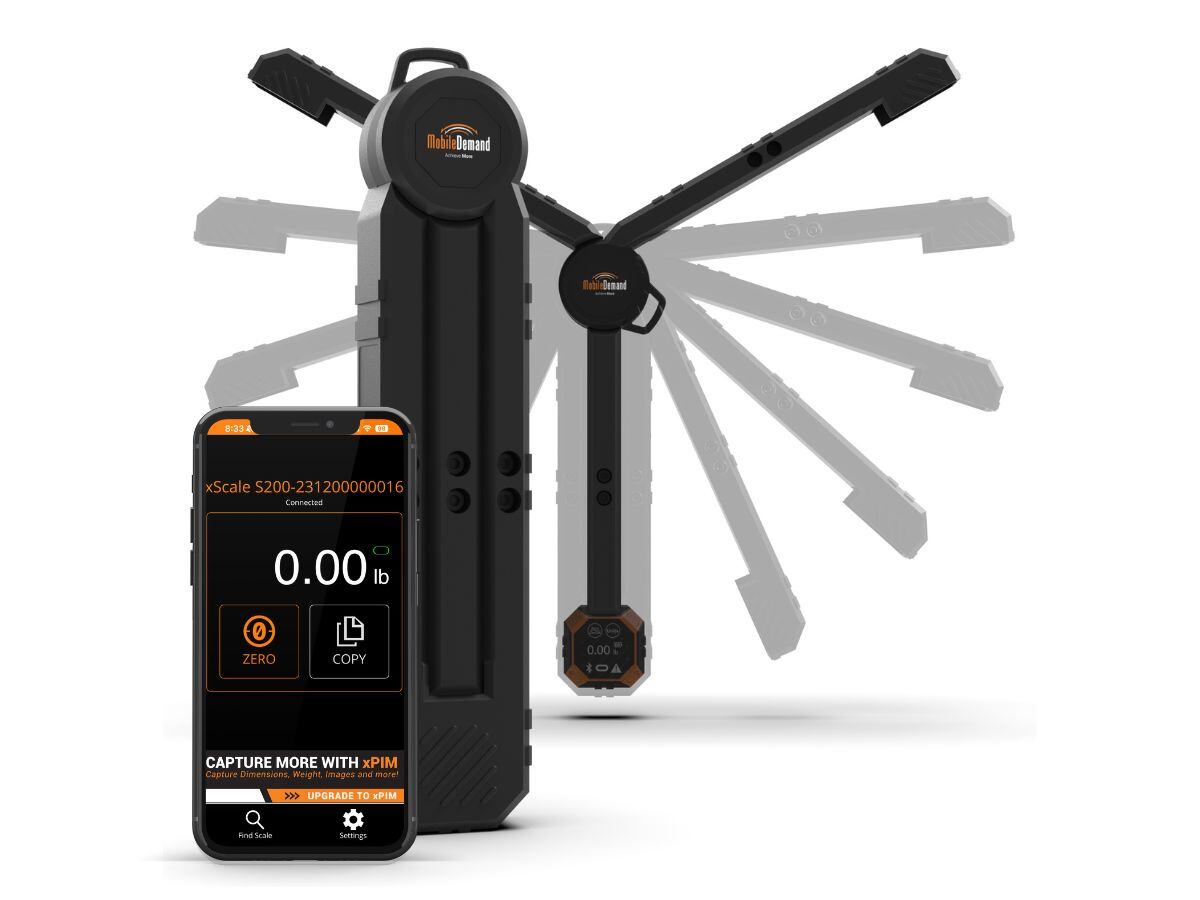

Mobile Weighing with the xScale S200

Capture weight quickly and easily wherever the job requires it with the portable xScale S200. Its lightweight folding arms and thin profile make it easy to use wherever items need to be weighed. The xScale S200 is fully compatible with xDIM.
