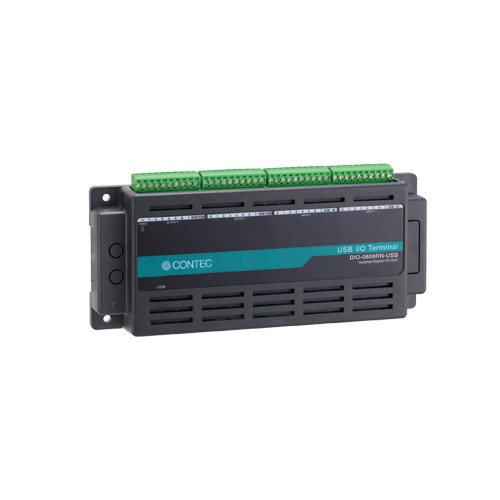

DIO-0808RN-USB

  • Optocoupler isolated input (compatible with current sink output/current source output)
  • Relay outputs (Form C) with independent common
  • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
  • Easy-to-wire terminal connector adopted

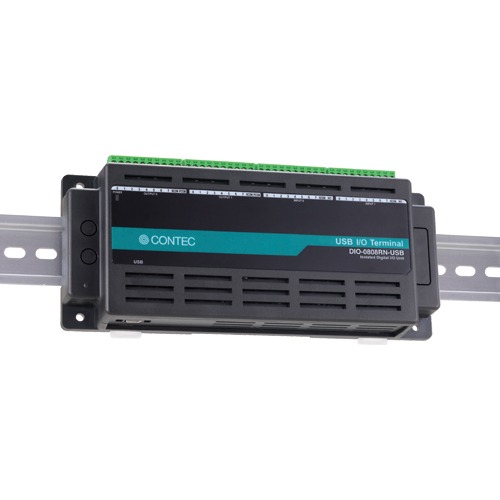

  • Diverse installations such as screw fastening, magnet, DIN rail are possible
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-0808RN-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an USB 2.0-compliant digital I/O unit that extends the input function of digital signal from the USB port of PC and output signals to SPDT relay contacts. This product is compatible with input digital signals at 12 – 24VDC which features 8 channels of Opto-coupler isolated inputs (compatible with current sink output/current source output) and 8 channels of SPDT relay outputs with independent common. Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall.Windows/Linux device driver is supported with this product.

    • Optocoupler isolated input (compatible with current sink output/current source output)
      • This product has 8 channels of Optocoupler isolated inputs (compatible with current sink output/current source output) whose response speed is 200μsec, supporting driver voltages of 12 – 24 VDC for input. 8 channels share one common.
    • Relay outputs (Form C) with independent common
      • This product has 8 channels of SPDT relay outputs (Form C) with independent common. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 6A 240V (AC), 5A 28V (DC) per channel.
    • Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
      • Compact design of 188.0(W) × 78.0(D) × 30.5(H) does not require special installation location.
    • Easy-to-wire terminal connector adopted
      • Adoption of terminal connector (with screws) enables to achieve easy wiring.
    • Diverse installations such as screw fastening, magnet, DIN rail are possible
      • Installation on the floor / wall /ceiling is possible by screw fastening, magnet, rubber feet, etc. In addition, DIN rail mounting mechanism is equipped as standard with the product, making it easy to install the product within the panel or the device.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB N(Compact)
    Bus Specification USB
    Size N Type
    Used Connector 4x 3.5mm-pitch 10-pin 2-piece terminal block
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) ON: 10msec (max.) / OFF: 5msec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) to 240VAC / to 28VDC
    Input Circuit Opto-isolated input (for both current sink and source output)
    Output Circuit Power relay output (SPDT type-C contact)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-0808RN-USB Digital I/O USB I/O unit 8ch/8ch (isolated 12 – 24VDC / power relay – 240VAC – 28VDC) – the N series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
