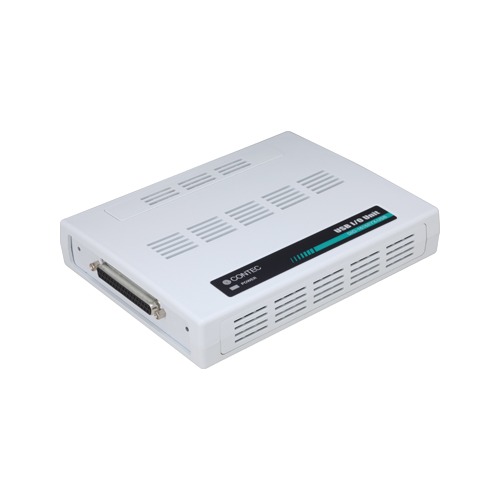

DIO-1616RYX-USB

  • Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
  • Optocoupler and semiconductor-relay bus isolation
  • You can use 16 input signals as interrupt request signals.
  • USB HUB function
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are provided.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-1616RYX-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an USB2.0-compliant digital I/O unit used to provide a digital signal I/O function on a PC. This product is compatible with the digital signal I/O with high voltage (input 12 – 24VDC, output 120VAC/DC) and features 16 optocoupler isolated inputs (compatible with current sink output/current source output) and 16 semiconductor-relay outputs. You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.

    • Optocoupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
      • This product has the 16 of optocoupler isolated input (compatible with current sink output/current source output) whose response speed is 200µsec and 16 of semiconductor-relay output whose response speed is 1.0msec. Supporting driver voltages of 12 – 24VDC for input and 120VAC/DC for output with high voltage. (12 – 24VDC external circuit power supply is required separately.)
    • Optocoupler and semiconductor-relay bus isolation
      • As the USB (PC) is isolated from the input and output interfaces by optocoupler and semiconductor-relay, this product has excellent noise performance.
    • You can use 16 input signals as interrupt request signals.
      • You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
    • USB HUB function
      • This product has the USB HUB function. Max. 4 DIO-1616RYX-USB can be used in 1 USB port of PC. When you use 4 or more DIO-1616RYX-USB, you can do by connecting DIO-1616RYX-USB to the another USB port of PC side.
    • Connectors are compatible with PCI/PCI Express bus-compatible board
      • As there is compatible with PIO-16/16RY(PCI) and DIO-1616RY-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. The specification of the input part is from 12 – 24VDC fixation however. If the system of this product is created by the digital I/O driver API-DIO(98/PC), it is required to replace it with API-DIO(WDM).
    • Windows compatible driver libraries are provided.
      • Using the digital I/O driver API-DIO(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series USB X(Mass connector)
    Bus Specification USB
    Size X Type
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels 16-ch
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) to 120VAC / VDC
    Input Circuit Opto-isolated input (for both current sink and source output)
    Output Circuit Semiconductor relay output
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-1616RYX-USB Digital I/O USB I/O unit 16ch/16ch (isolated 12 – 24VDC / – 120VAC – 120VDC) – the X series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    Power Supply / AC Adapter
    Item Item Name
    POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
    Other Accessories
    Item Item Name
    BRK-USB-X USB I/O Unit Bracket for X series
