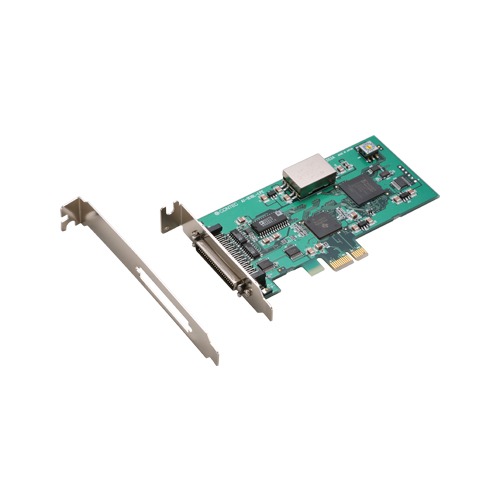

AI-1616L-LPE_img1AI-1616L-LPE_img1

AI-1616L-LPE

  • Multi-function
  • Analog I/O can be synchronized with an internal timer or external clock
  • Buffer memory available for background processing independent of software
  • Software-based calibration function
  • Filter function for easy connection of external signals

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AI-1616L-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

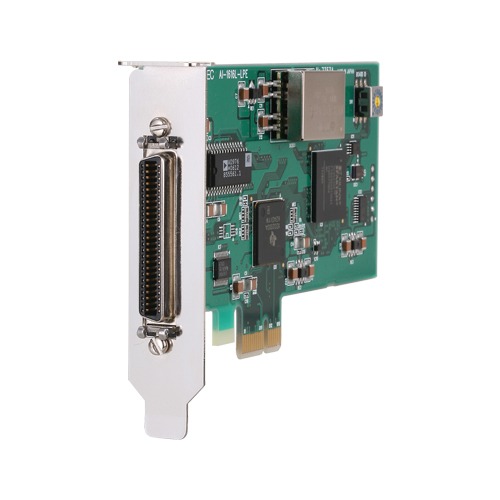

    This product is a multi-function interface card of the PCI Express bus conformity that carried digital input and output (LVTTL level, for each 4 points) and counter (32bit, 1ch) as well as analog input of highly precise 16bit. It supports a Low Profile size slot and a standard size slot by changing an attached bracket. Attachment windows/Linux version driver. In addition, the product also supports MATLAB and LabVIEW with plug in of an exclusive library(free download).

    • Multi-function
      • High-precision analog I/O can be implemented in a compact system. This product contains the analog input (16bit, 16ch). This product include digital inputs and outputs (4 each, LVTTL level) and a counter (32-bit 1ch).
    • Analog I/O can be synchronized with an internal timer or external clock
      • Analog I/O can both be performed at fixed time intervals or synchronized with an external signal.
    • Buffer memory available for background processing independent of software
      • The cards include buffer memory (1K Word each for analog input and output) which can be used in either FIFO or ring format. This allows analog I/O to be performed independently of the operating state of the PC or software.
    • Software-based calibration function
      • Calibration of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
    • Filter function for easy connection of external signals
      • The digital input signals, counter input signals, and the external control signals for analog I/O incorporate a digital filter to prevent problems such as chattering.

    Specifications

    Specifications
    Add-on Module
    Series Analog L(Low-cost&Multi-function)
    Bus Specification PCI Express
    Size Low Profile
    Used Connector Miniature ribbon 50-pin
    Analog I/O
    Input Channels Single-ended 16-ch
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate 10μsec/ch (max.)
    Input Buffer Memory 1k Word
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up count
    Response speed 10MHz
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AI-1616L-LPE Analog Input Low Profile PCI Express Card /16ch AI(16bit 100ks/s) / 1ch Counter – Multifunction DAQ L Series
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    ML-DAQ MATLAB compliant Data Acquisition Library
    Expansion Accessory Module
    Item Item Name
    ATBA-16L Buffer Amplifier Function Extension Box for analog input card
    ATBA-8L Buffer Amplifier Function Extension Box for analog input card
    Cable
    Item Item Name
    PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
    PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
    Terminal
    Item Item Name
    ATP-8L BNC connectors for Analog I/O Card
    EPD-50A Screw Terminal (M3 x 50)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
