C-WaveformGenerator_img1C-WaveformGenerator_img1

C-WaveformGenerator

  • No programming required. Contains 6 basic waveforms (DC, sine wave, triangular wave, square wave, ramp wave, and noise) that can be used immediately
  • Sweep output is possible
  • Cooperation with other software
  • SDK (Software Development Kit) that enables control from external applications are supported
Request Quote


    Email Verification Code (required)



    SKU: C-WaveformGenerator Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

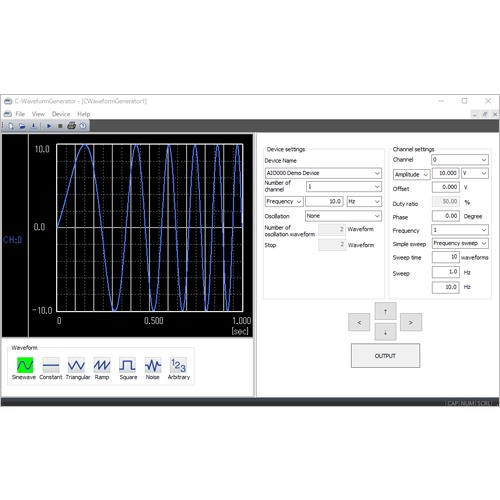

    MCI-GEN-WIN is a Software that easily outputs basic waveforms using Contec’s analog output device on Windows 11/10. Compatible with a wide variety of measurement control devices PC-HELPER series (PCIe/PCI, USB). With a GUI that resembles a benchtop signal generator, you can output voltages up to ±10V or current outputs from 0 to 20mA with just one click.

    • *The output range depends on the specifications of the analog output device.
    • No programming required. Contains 6 basic waveforms (DC, sine wave, triangular wave, square wave, ramp wave, and noise) that can be used immediately
      • Simply select the basic waveform and single “output” to generate export immediately. (The upper limit varies depending on the device used), Auto burst and trigger burst are also supported.
    • Sweep output is possible
      • Basic waveforms can be sweep-calculated and output offline. Compatible with frequency sweep, amplitude sweep, DC offset sweep, square wave duty sweep.
    • Cooperation with other software
      • Waveform data (CSV format) generated by Microsoft Excel can also be used with C-WaveformGenerator. Can be linked Contec’s data logger software “C-LOGGER™”.
    • SDK (Software Development Kit) that enables control from external applications are supported
      • It is possible to control C-WaveformGenerator with Visual C# etc. And it allows to incorporate waveform output functionality into your inspection/measurement control applications easily.

    Specifications

    Specifications
    Application Software
    Type Function generator
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 (64-bit)
    Supported Series
    Supported Series PC-HELPER
    Supported Devices
    model
    USB Module
    AIO-120802LN-USB AIO-121602LN-USB AIO-160802AY-USB
    AIO-160802GY-USB AIO-163202FX-USB AO-1604AIN-USB
    AO-1604LX-USB AO-1604VIN-USB
    Ethernet
    AO-1604-VIN-ETH AO-1604AIN-ETH –
    PCI Express Card
    AIO-123202G-PE AIO-123202UG-PE AIO-160802L-LPE
    AIO-160802LI-PE AIO-163202F-PE AIO-163202G-PE
    AIO-163202UG-PE AO-1604L-LPE AO-1604LI-PE
    AO-1608L-LPE
    AO-1616L-LPE PCI Card
    ADA16-32/2(PCI)F ADA16-8/2(LPCI)L ADAI16-8/2(LPCI)L AO-1604CI3-PCI DA12-4(PCI) DA12-8(PCI) DA12-16(PCI) DA16-4(LPCI)L DA16-8(LPCI)L DA16-16(LPCI)L DAI16-4(LPCI)L

    Ordering Informations

    Ordering Information
    Model Description Certification
    MCI-GEN-WIN Waveform Generator for Windows

      –
