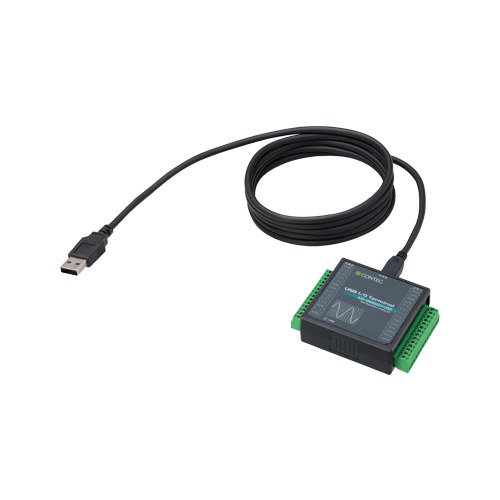

AIO-160802GY-USB

  • Equipped with the analog input 8ch, analog output 2ch and digital I/O 4ch each
  • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
  • Equipped with the buffer memory which can be used in either FIFO or ring format
  • Sampling/generating can be driven by a clock or by various triggers
  • Software-based adjustment function
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AIO-160802GY-USB Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a USB2.0 compatible terminal module that extends the analog I/O function of USB port of PCs. 8ch/16bits analog inputs and 2ch/16bits analog outputs are employed and signal lines can be directly connected to the screw terminals in the system. Compact design to match Note PCs and excellent in mobility as operation is powered by USB bus. Windows/Linux device driver is supported with the product.

    • Equipped with the analog input 8ch, analog output 2ch and digital I/O 4ch each
      • Equipped with the analog input (4μsec/ch, 16bit, 8ch), analog output (10μsec, 16bit, 2ch) and digital I/O (4ch each, LVTTL level).
    • Compatible to USB2.0/USB1.1 and not necessary to power this product externally as the bus power is used
      • Compatible to USB2.0/USB1.1 and capable to achieve high speed transfer at HighSpeed (480 Mbps). Not necessary to power this product externally as the bus power of USB is used.
    • Equipped with the buffer memory which can be used in either FIFO or ring format
      • This product includes buffer memory (8K data for analog input and 1K data for output) which can be used in either FIFO or ring format. You can perform analog I/O in the background, independent of software and the current status of the PC.
    • Sampling/generating can be driven by a clock or by various triggers
      • Sampling/generating can be started and stopped by software or by an external trigger (timing controlled by an externally input control signal). The sampling/generating period can be controlled by the internal clock (high-precision timer included on the board) or by an external clock (externally input control signal).
    • Software-based adjustment function
      • Adjustment of analog input/output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided

    Specifications

    Specifications
    Add-on Module
    Series USB Y(Mobile)
    Bus Specification USB
    Size Y Type
    Used Connector 2x Screw terminal block 14-pin
    Analog I/O
    Input Channels Single-ended 8-ch
    Input Range ±10V
    ADC Resolution 16-bit
    Sampling Rate 4μsec/ch (Max.)
    Input Buffer Memory 8k Word
    Output Channels 2-ch
    Output Range ±10V
    DAC Resolution 16-bit
    Update rate 10μsec (max.)
    Output Buffer Memory 1k Word
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200nsec (max.)
    Response Time (Output) 200nsec (max.)
    Operating Voltage (Input) 5VDC-TTL; 3.3VDC-LVTTL
    Operating Voltage (Output) 3.3VDC-LVTTL
    Input Circuit Non-isolated TTL level input (Positive logic); Non-isolated LVTTL level input (Positive logic)
    Output Circuit Non-isolatedLVTTL level output (Positive logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AIO-160802GY-USB Analog I/O USB I/O Unit / 8ch AI(16bit 250ks/s) / 2ch AO – Y Series
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-LOGGER Data Logger Software for Windows
    C-WaveformGenerator Waveform Generator for Windows
    Other Accessories
    Item Item Name
    BRK-USB-Y Bracket for USB I/O Terminal products
    CN6-Y14 14 pin Terminal connector(screw type) 6/set
