AO-1604VIN-ETH

  • 4 channels of analog output (voltage output) with high accuracy, and 4 channels of digital input and output respectively are contained
  • Sampling can be driven by a clock or by various triggers
  • Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
  • Operable in a wide range of 12 – 24VDC power
  • Windows/Linux support device driver
  • Windows/Linux compatible driver libraries are supported.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AO-1604VIN-ETH Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

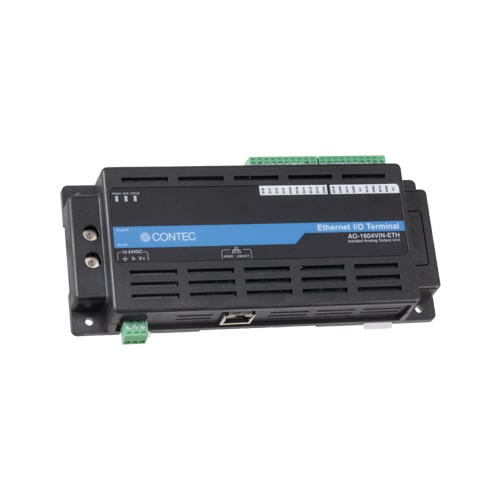

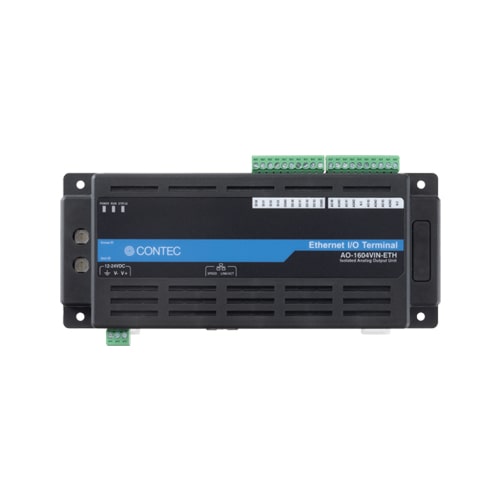

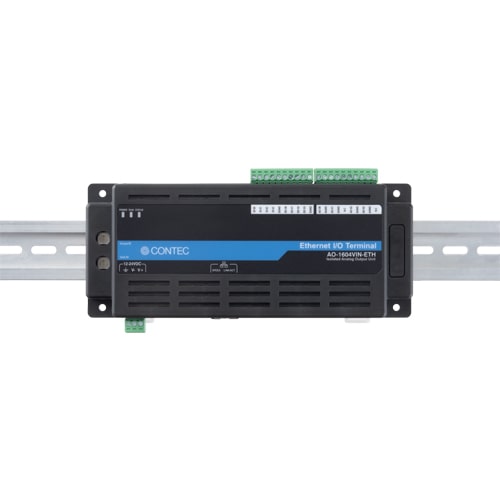

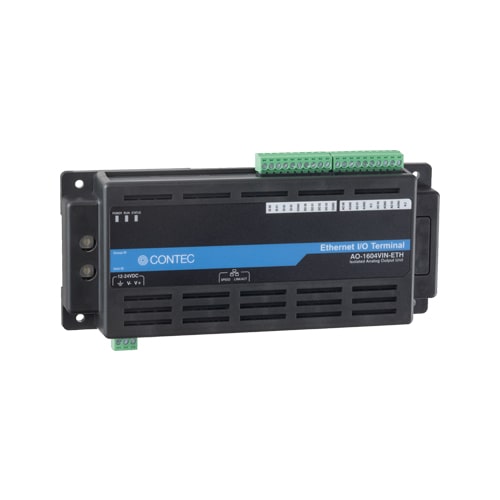

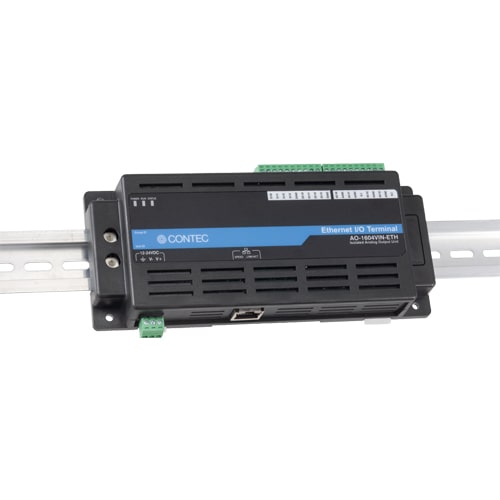

    The product is an Ethernet-compatible unit with analog output function. Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail. Windows/Linux device driver is supported with the product.4 channels of 16-bit analog output, and digital input and output (4 channels respectively) are equipped, and these circuits are isolated from the computer.The output range supports ±10V voltage output.

    • 4 channels of analog output (voltage output) with high accuracy, and 4 channels of digital input and output respectively are contained
      • Analog output (10μsec, 16bit, 4ch), digital input and output (Input: TTL level 4 channels, Output: Open-collector 4 channels)) are equipped. The analog output supports the ±10V voltage output bipolar.
    • Sampling can be driven by a clock or by various triggers
      • Sampling can be started and stopped by software and external (timing of control signals input from external) triggers. The sampling period can be controlled by the internal clock (high-precision timer included in the product).
    • Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
      • The product isolates the PC from analog input as well as digital I/O by a digital isolator, which improves the noise performance. And the use of open collector output ensures digital outputting with TTL or 12-24 V power by the power of the external device.
    • Operable in a wide range of 12 – 24VDC power
      • The product can be operated in the various environments with a wide range power supply of 12 – 24VDC. In addition, the FG terminal is equipped in the power connector.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • Windows/Linux compatible driver libraries are supported.
      • Calibration of analog input can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.

    Specifications

    Specifications
    Add-on Module
    Series Ethernet N
    Bus Specification Ethernet
    Size N Type
    Used Connector 2x 3.5mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Differential 8-ch
    Input Range –
    ADC Resolution –
    Sampling Rate 10μsec/ch (max.); –
    Input Buffer Memory –
    Output Channels 4-ch
    Output Range ±10V
    DAC Resolution 16-bit
    Update rate 20μsec (max.)
    Output Buffer Memory 8k Word
    Digital I/O
    Input Channels 4-ch
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) 5VDC-TTL
    Operating Voltage (Output) 5VDC-TTL
    Input Circuit Non-isolated TTL level input (Negative logic)
    Output Circuit Non-isolated TTL open-collector output (Negative logic)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AO-1604VIN-ETH N Series for Ethernet Isolated Analog Output Unit (±10V Voltage Input)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(LNX) Analog I/O Driver for Linux
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-WaveformGenerator Waveform Generator for Windows
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
    POA201-10-2 AC adaptor (12V,1A)
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
