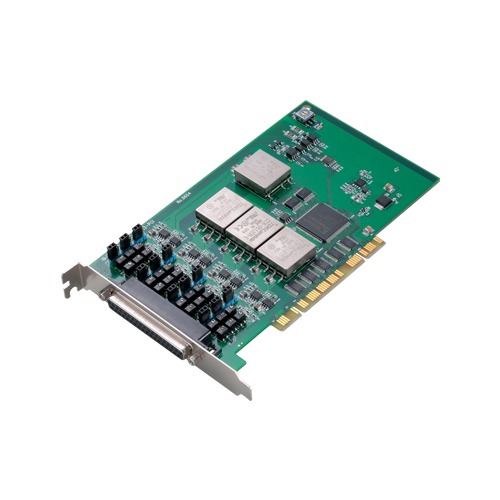

AO-1604CI3-PCI

  • Analog output 4ch, 16bit-resolution, conversion speed 20µsec
  • PC bus line, opto-coupler isolation between channels
  • Simultaneous output of voltage to a specified channel or all channels
  • Control of generating start/stop can be selected by an external trigger or other factor
  • Relay provided to control output voltage
  • Windows/Linux support device driver

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: AO-1604CI3-PCI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI bus supported board that extends the analog signal output functions of a PC. Equipped with four channels of 16-bit analog output, the product is an individual isolation model using a D/A converter for each channel to provide isolation for the bus line with PC and between channels. The voltage/current output range (voltage : ±10V, 0 – +10V; current : 0 – 20mA) can be set by jumper for each channel. This product can generate signals that are synchronized with the internal timer or an external clock. Windows/Linux device driver is supported with this product.

    • Analog output 4ch, 16bit-resolution, conversion speed 20µsec
      • This product has the Analog output (4ch, 16bit, 20µsec). Additionally, the voltage/current output range (voltage : ±10V, 0 – +10V, current : 0 – 20mA) can be set by jumper for each channel.
    • PC bus line, opto-coupler isolation between channels
      • The opto-couplers mounted for each channel provide electric isolation between channels as well as between the inside of the board (PC) and output pins.
    • Simultaneous output of voltage to a specified channel or all channels
      • This product can generate output voltage either for a specified channel only or for all of the channels simultaneously. This can be selected or set by device driver function.
    • Control of generating start/stop can be selected by an external trigger or other factor
      • Control of generating start can be selected by software or an external trigger. Control of generating start and control of generating stop are independent from each other; therefore, they can be set separately. Control of generating stop can be selected by completion of a specified number of sessions or an external trigger. In addition, when an error occurs, generating is stopped, regardless of the settings for generating stop conditions. A generating cycle can be selected from the internal clock (high precision timer mounted on the board) or an external clock (control signal entered from outside).
    • Relay provided to control output voltage
      • The mounted relay prevents unstable output voltage from being generated upon power-up. This protects the connected devices from damage and malfunction, as the output voltage for all the channels is generated via the relay.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Analog I/O
    Input Channels –
    Input Range –
    ADC Resolution –
    Sampling Rate –
    Input Buffer Memory –
    Output Channels 4-ch
    Output Range ±10V; 0 to 10V; 0 to 20mA
    DAC Resolution 16-bit
    Update rate 20μsec (max.)
    Output Buffer Memory –
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    AO-1604CI3-PCI Analog Output PCI Card / 4ch(16bit 50ks/s) / Channel to Channel Isolation
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Applications
    Item Item Name
    C-WaveformGenerator Waveform Generator for Windows
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
