C-LOGGER_img1C-LOGGER_img1

C-LOGGER

  • High-speed sampling and graph drawing
  • Multi-window interface
  • Dual-graph display for full-scale and zoom
  • File Viewer and Property Viewer
  • File saving and Excel dynamic transfer
  • Wizard(interactive program) for easily setting sampling conditions. Capable of loading collected data from saved files. Customizable graph display(line colors, background color, label, etc.)
SKU: C-LOGGER Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

C-LOGGER is a Windows version of data logger software for analog I/O device products. It provides true data collection and monitoring function,such collected signal data graph drawing, zoom observation, file saving, and dynamic transfer to Excel (spreadsheet program) without any need for annoying programming.

Contec updates C-LOGGER to be used more convenient appropriately. Click here to check the history.

  • High-speed sampling and graph drawing
    • C-LOGGER incorporates optimized data processing logic based on the professional expertise of CONTEC as a device manufacturer, capable of getting the most out of the performance of hardware. C-LOGGER provides high-speed graph drawing and quick response even when handling a large amount of data.
  • Multi-window interface

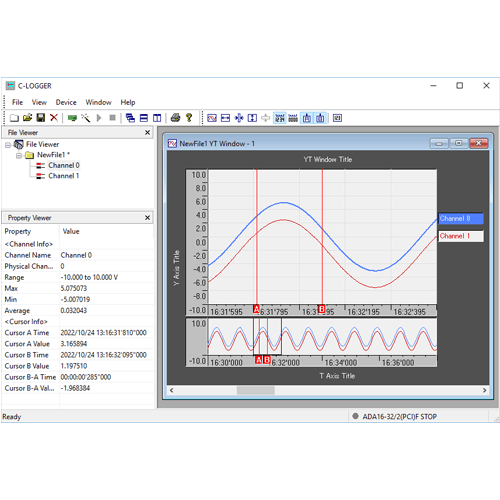

    • C-LOGGER can display two or more windows for graph display (YT window) and numeric display (numeric window). You can customize each window in its size and the number of channels displayed.

  • Dual-graph display for full-scale and zoom
    • C-LOGGER can display collected data on a full-scale graph and on a zoomed graph. For example, while displaying the total data, the local part of data can be indicated by expansion and checking details.

  • File Viewer and Property Viewer
    • File Viewer provides a tree display for managing collected data and data loaded from files. Property Viewer displays detailed information on each item of data.

  • File saving and Excel dynamic transfer
    • C-LOGGER can save collected data to files. It supports two different file formats: versatile CSV format and compact binary format for faster access. C-LOGGER also provides automatic file saving and dynamic transfer to Excel sheets as features convenient when handling a large amount of data collected through high-speed sampling for an extended period of time.

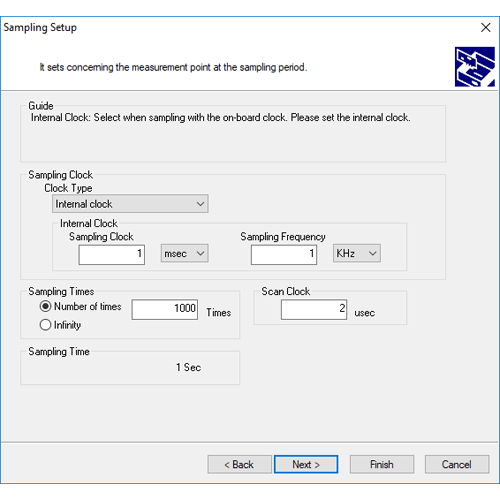

  • Wizard(interactive program) for easily setting sampling conditions. Capable of loading collected data from saved files. Customizable graph display(line colors, background color, label, etc.)

Specifications

Specifications
Application Software
Type Data logger
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit)
Supported Series
Supported Series PC-HELPER
Supported Devices（Analog I/O）
Model
USB Module
 AI-1608AIN-USB AI-1608AY-USB AI-1608GY-USB
AI-1608VIN-USB AI-1664LAX-USB AIO-120802LN-USB
AIO-121602LN-USB AIO-160802AY-USB AIO-160802GY-USB
AIO-163202FX-USB – –
Ethernet
AI-1608-VIN-ETH AI-1608AIN-ETH –
PCI Express Card
 AI-1616L-LPE AIO-121601E3-PE AIO-121601UE3-PE
AIO-160802L-LPE AIO-161601E3-PE AIO-161601UE3-PE
AIO-163202F-PE AIO-163202UG-PE AIO-163202G-PE
AIO-123202UG-PE AIO-123202G-PE AI-1664UG-PE
PCI Card
 AD12-16(PCI)EV AD12-16U(PCI)EV AD16-16(LPCI)L
AD16-16(PCI)EV AD16-16U(PCI)EV AD16-64(LPCI)LA
ADA16-8/2(LPCI)L ADA16-32/2(PCI)F ADAI16-8/2(LPCI)L
ADI16-16(LPCI)L AI-1204Z-PCI –
Version Upgrade History
Ver1.90
Additional function Device Support AI-1608VIN-ETH, AI-1608AIN-ETH.
Ver1.80
Additional function Device Support AI-1664UG-PE.
Ver1.70
Additional function Device Support AIO-163202G-PE, AIO-163202UG-PE, AIO-123202G-PE, AIO-123202UG-PE.
Ver1.60
Additional
functions		 OS Supported Windows 11 (64bit).
Supported Windows 10 IoT Enterprise LTSB 2016 (64bit).
Supported Windows 10 IoT Enterprise 2019 LTSC (64bit).
Supported Windows 10 IoT Enterprise LTSC 2021 (64bit).
Ver1.50
Additional
functions		 Sampling Added the repeat count setting to set the number of repetitions of a series of operations from sampling start to stop.
Support for delayed sampling after a stop condition.
Trigger Added analog in-range trigger (signal stops within range) and analog out-range trigger (signal stops out of range) to the stop conditions.
Application Added support for EXCEL2019.
Update
functions		 UI After setting the collection wizard, the YT window is automatically started.
Added the magnification that can be selected in the YT window.
Added character font change for each axis label to YT window options.
The next measurement can be started without resetting after the measurement is completed.
Revision Device End of support for the following devices.
AI-1216AL-PCI, AIO-121602AL-PCI, AI-1216AH-PCI, AIO-121602AH-PCI, AIO-121601M-PCI, ADI16-4(USB), ADI12-8(USB)GY
Driver Revised the supported driver to API-AIO (WDM) Ver7.50 or later.
Ver1.42
Revision OS Revised the supported OS to Microsoft Windows 10 (32bit/64bit).
Application Revise the supported EXCEL to EXCEL2016, EXCEL 2013.
Device End of support for the following devices.
ADA16-32/2(CB)F , ADA16-8/2(CB)L
Ver1.40
Additional functions Sampling Supported for external sampling clock.

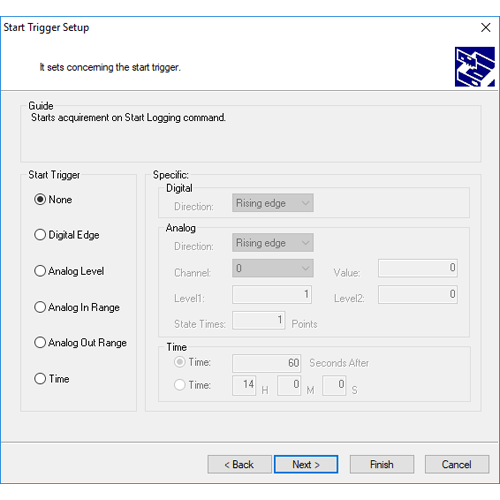

Trigger Added start trigger setting (time).

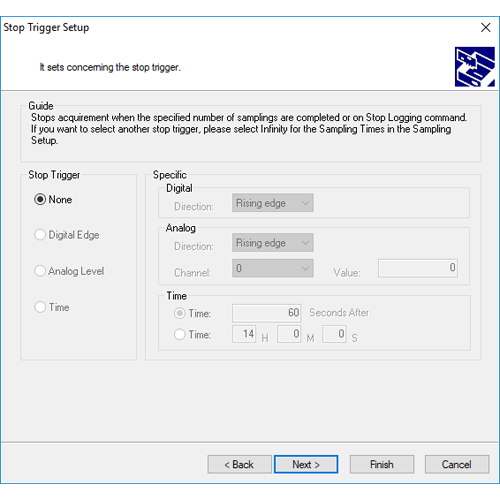

Added stop trigger settings (digital edge, analog level, time).
UI Added function to save capture image.
Update functions Sampling Auto Save can be selected even when the number of samplings is small.
Supported the sampling clock setting including decimal (0.025usec unit).
Supported scan clock setting including decimal (0.025usec unit).
Supported sampling clock setting by specifying frequency (Hz).
UI Added information (maximum/minimum/average) to Property Viewer.
Ver1.32
Additional function Device Support AI-1608VIN-USB, AI-1608AIN-USB.
Ver1.30
Additional functions OS Support Windows 10.
Application Support EXCEL 2016.
Device Support AI-1608GY-USB.
Ver1.29
Additional functions OS Support Windows 8.1.
Device Support AI-1664LAX-USB, AIO-121602LN-USB, AIO-120802LN-USB.
Support AIO-160802GY-USB.
Ver1.28
Additional function OS Support EXCEL 2013.
Ver1.27
Additional functions OS Support 64bit OS.
Application Support EXCEL 2010.
Update function UI The C-LOGGER UIs are improved for the user to easy use this software.
Ver1.25
Update function Sampling The default memory size changed from 1Mbyte to 48Mbyte on the AI-1204Z-PCI.
Ver1.23
Additional function OS Support Windows 7.
Ver1.22
Additional function Device Support AIO-163202FX-USB,AIO-121601M-PCI.
Ver1.21
Additional function Application Support EXCEL 2007.
Ver1.18
Additional function Device Support AI-1204Z-PCI.
Ver1.16
Additional function Device Support AIO-161601UE3-PE, AIO-161601E3-PE, AIO-121601UE3-PE, AIO-121601E3-PE.
Ver1.14
Additional function OS Support Windows Vista.
Device Support AIO-121602AL-PCI, AI-1216AL-PCI, AIO-121602AH-PCI, AI-1216AH-PCI.
Ver1.11
Additional function Device Support AIO-160802AY-USB.
Support AIO-160802L-LPE.
Support AI-1616L-LPE.
Ver1.1
Additional function Trigger Both (directions) is enabled as well as High and Low when using level trigger start mode.
Device Support AIO-163202F-PE.
Support AI-1608AY-USB.
Update functions Sampling Enhanced the processing capability of data logging at high speed sampling by using bus master transfer for ADA16-32/2(PCI)F, ADA16-32/2(CB)F.
File Logging data which remains after the stop of data-logging is saved automatically when using auto-saving mode.
UI Changed to display the automatically saved file name in the file viewer.
Ver1.0
Additional function First release

Ordering Informations

Ordering Information
Model Description Certification
MCI-LOGGER-WIN Data Logger Software for Windows

    –
