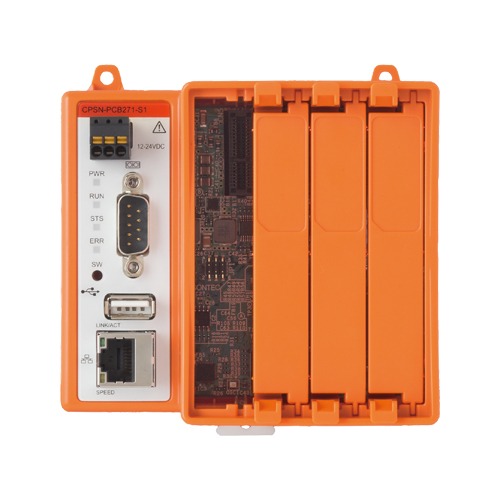

CPSN-PCB271-S1-041_img1CPSN-PCB271-S1-041_img1

CPSN-PCB271-S1-041

  • I/O module expansion
  • Collaborate with the CODESYS
  • Along with Modbus TCP Master and Modbus RTU Master
  • Max. 921,600bps RS-232C Serial Communication
  • Adaptable to a wide range of temperature between -20 and +60°C
  • No electrolytic capacitor

Data Sheet PDF

SKU: CPSN-PCB271-S1-041 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

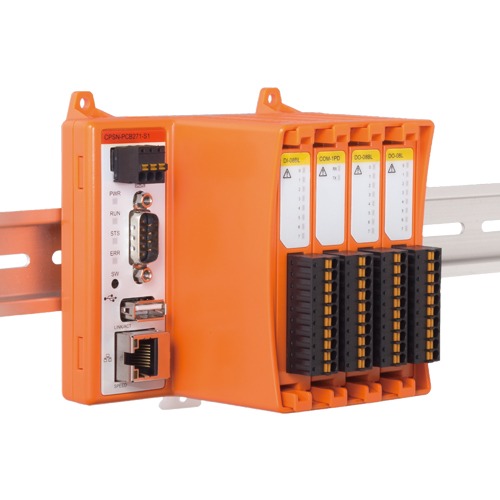

This product is a CPU unit containing RS – 232C, LAN interface, and with four expansion slots to support CODESYS programming and Modbus Master. The CONPROSYS nano series configurable I/O modules can be arranged and combined along with the product to satisfy the user’s needs.

  • I/O module expansion

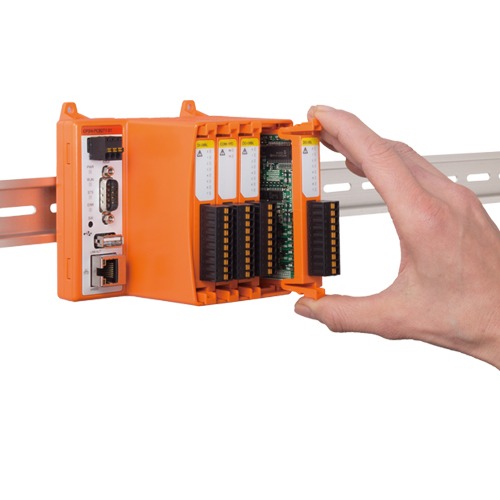

    • With this product, you can freely add I/O modules to match the necessary functions from among the varied collection of CONPROSYS nano series I/O modules.
  • Collaborate with the CODESYS
    • This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST and LD.
  • Along with Modbus TCP Master and Modbus RTU Master
    • Modbus is a communication protocol widely applied in the industrial field. Data collecting from devices that contain Modbus Slave function or controlling can be carried out.
  • Max. 921,600bps RS-232C Serial Communication
    • The Product has one RS-232C-standard serial port. Baud rates from 110 to 921,600 bps can be set.
  • Adaptable to a wide range of temperature between -20 and +60°C
    • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
  • No electrolytic capacitor

    • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

Specifications

Specifications
Controller Unit
Series
Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus CONPROSYS nano slot
Function Modbus master; Modbus/TCP slave
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 921,600bps
Isolation Property
Transmission Method

Ordering Informations

Ordering Information
Model Description Certification
CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
  • CE marking
  • FCC compliant
  • VCCI
Options
Analog I/O
Item Item Name
CPSN-AI-1208LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation
CPSN-AI-2408LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(24bit, 208μsec/ch) / Bus Isolation
CPSN-AO-1602LC Analog Output CONPROSYS nano Series I/O Module 2ch (16bit, Voltage / Current) / Inter-channel Isolation
CPSN-SSI-4C Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation
Digital I/O
Item Item Name
CPSN-DI-08BL Digital input CONPROSYS nano Series I/O module 8ch (12VDC on-board power supply isolated 12VDC)
CPSN-DI-08L Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DI-16BCL Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC)
CPSN-DIO-08SL Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)
CPSN-DO-08BL Digital output CONPROSYS nano Series I/O module 8ch (on-board power supply isolated 12VDC)
CPSN-DO-08BRL Digital output CONPROSYS nano Series I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC)
CPSN-DO-08L Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
CPSN-DO-08RL Digital output CONPROSYS nano Series I/O module 8ch (negative-common isolated 12 to 24VDC)
CPSN-DO-16BL Digital output CONPROSYS nano Series I/O module 16ch (opto-coupler driving power supply)　　
CPSN-DO-16L Digital output CONPROSYS nano Series I/O module 16ch (isolated 12 to 24VDC)
CPSN-RRY-4PCA Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC)
Counter
Item Item Name
CPSN-CNT-3201I Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated
Serial comm.
Item Item Name
CPSN-COM-1PD Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection
Development Support Tools
Item Item Name
DAQ-LIBMB-LNX DAQfast Modbus Communication Library for Linux
DAQ-LIBMB-WIN DAQfast Modbus Communication Library for Windows
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
