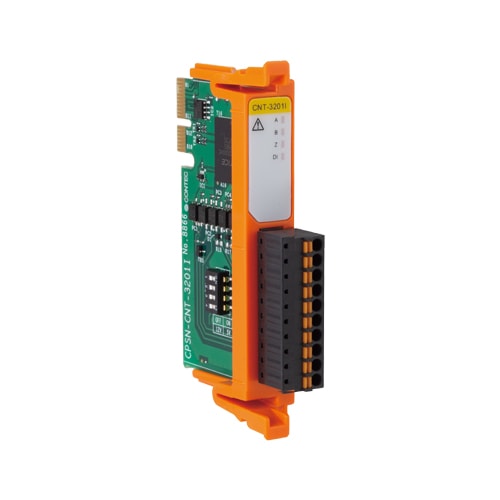

CPSN-CNT-3201I

  • Count two-phase signals
  • Opto-coupler isolated input
  • Interrupt, Output signal
  • Digital filter to prevent input signals from carrying noise or a chattering
  • Output circuit includes zener diode for surge voltage protection
  • Adaptable to a wide range of temperature between -20 and 60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-CNT-3201I Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a I/O module that adds the interface, which counts input pulse signals from external devices, to the CPU Unit of the CONPROSYS nano series.
    It has one channel of 32-bit up/down counters, allowing external devices such as a rotary encoder and a linear scale to be connected.
    Examples are given for “detecting a position of the table of a machine tool” and “detecting a change in weight”.

    • Count two-phase signals
      • This product can count two-phase and single-phase signals including encoders, and linear scales. It is equipped with one 32-bit up/down counter.
    • Opto-coupler isolated input
      • Opto-coupler isolated input of 500 kHz response frequency within.
    • Interrupt, Output signal
      • Generate an interrupt or output one-pulse signal when the count data of the channel matches a specified value.
    • Digital filter to prevent input signals from carrying noise or a chattering
      • This product has a digital filter to prevent input signals from carrying noise or a chattering.
        All input terminals can be added a digital filter, and the setting can be performed by software.
    • Output circuit includes zener diode for surge voltage protection
      • Zener diode is connected to the output circuit to protect against surge voltages. The rated output is 35VDC, 50mA to the maximum per channel.
    • Adaptable to a wide range of temperature between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Counter
    Number of Channels 1-ch
    Counting System 32-bit Up/Down count
    Response speed 500KHz
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-CNT-3201I Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-CNT(WDM) Windows Driver for Counter Input Driver
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
