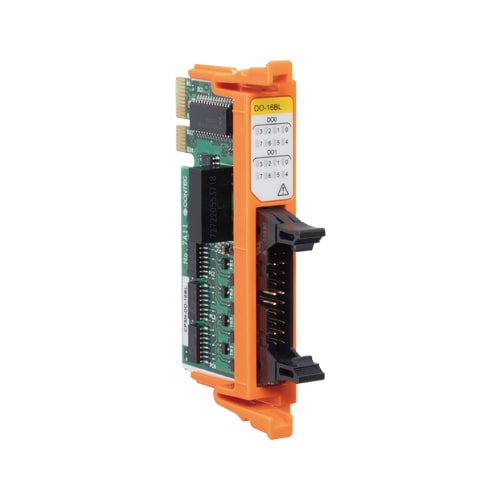

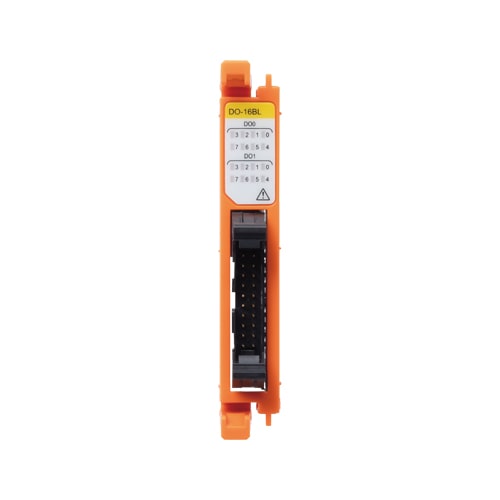

CPSN-DO-16BL

  • Opto-coupler isolated Output
  • Internal circuit power supply
  • Output circuits include zener diodes for surge voltage protection
  • Easy installation and removal
  • Adaptable to a wide range of temperature -20 to 60°C (-4 to 140°F)
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-DO-16BL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion module that adds a digital output interface to the CPU unit or USB I/O Unit – Module Type of the CONPROSYS nano series. CPSN-DO-16L has the opto-coupler isolated Output 16 channels (current sink output) whose response time is 200µsec or less. This product can also be used with an external circuit power supply of 12 to 24 V. CPSN-DO-16BL has the opto-coupler isolated Output 16 channels (current sink output) whose response time is 200µsec or less. This product’s carries an opto-coupler driving power supply.

    • Opto-coupler isolated Output
      • This product contains 16 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less.
    • Internal circuit power supply
      • The CPSN-DO-16BL ‘s carries an opto-coupler driving power supply.
    • Output circuits include zener diodes for surge voltage protection
      • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 500mA to the maximum per channel.
    • Easy installation and removal
      • This product can be installed in and removed from the CPU unit or USB I/O Unit – Module Type without any tools.
    • Adaptable to a wide range of temperature -20 to 60°C (-4 to 140°F)
      • The product is capable of operating in the temperature -20 to 60°C (-4 to 140°F), It can be installed in the various environments.
    • No electrolytic capacitor
      • A long life has been achieved by not using electrolytic capacitors, which are short-life components.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 1x MIL type pin header 20-pin (Male)
    Digital I/O
    Input Channels –
    Output Channels 16-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit –
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-DO-16BL Digital output CONPROSYS nano Series I/O module 16ch (Built-in power supply for driving)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
