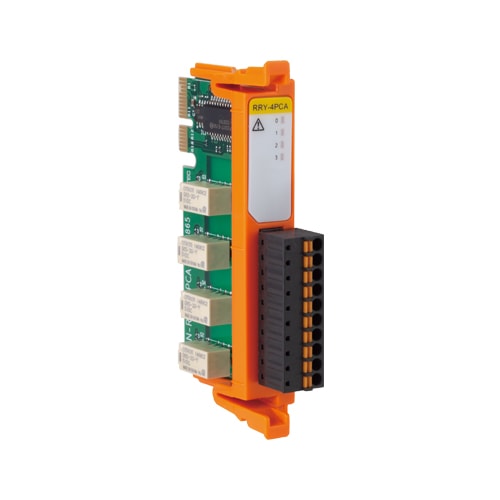

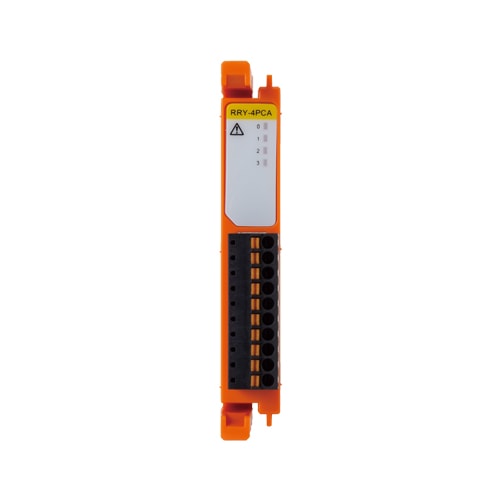

CPSN-RRY-4PCA_img1CPSN-RRY-4PCA_img1

CPSN-RRY-4PCA

  • Independent Common Relay Outputs (Contacts A)
  • Bus Isolated by Relays
  • LED indicator for status check
  • Easy installation and removal
  • Adaptable to a wide range of temperature between -20 and 60°C
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-RRY-4PCA Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds relay outputs (Contacts A) to the CPU unit of the CONPROSYS nano series.Four channels of differential inputs are provided for one module.

    • Independent Common Relay Outputs (Contacts A)
      • Four channels of independent common relay outputs (form A) are provided.Independent common can support a different external power supply per channel (one common).
    • Bus Isolated by Relays
      • As Bus is isolated from the output interfaces by relays, this product has excellent noise performance.
    • LED indicator for status check
      • On/Off of the relay outputs can be visually checked with the LED indicator.
    • Easy installation and removal
      • This product can be installed in and removed from the CPU unit without any tools.
    • Adaptable to a wide range of temperature between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Digital I/O
    Input Channels –
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 10ms (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit Reed relay contact output
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-RRY-4PCA Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
