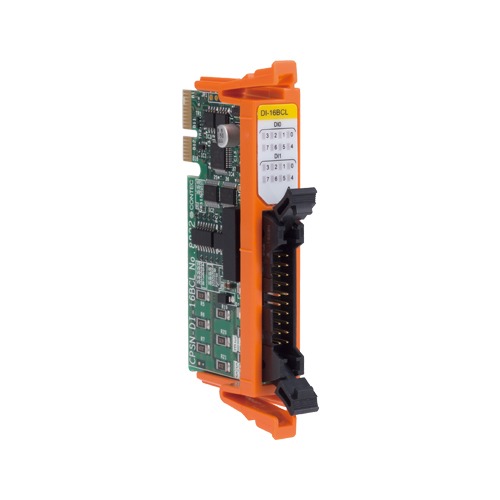

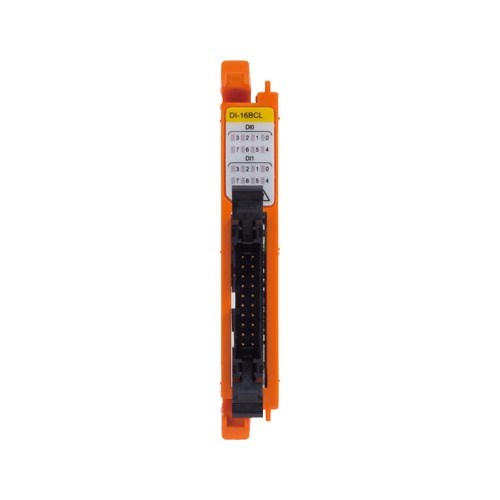

CPSN-DI-16BCL

  • Opto-coupler isolated input
  • Internal circuit power supply and external power supply
  • All of the input signals are usable as interrupt events
  • Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering
  • Input counter function
  • Adaptable to a wide range of temperature between -20 and +60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-DI-16BCL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds an opto-coupler isolated input interface with a response speed of 200 μs or less to the CPU unit of the CONPROSYS nano series.The product is equipped with 16 inputs and 1 common that support current sink/source output, and the internal circuit power supply of 12V and the external circuit power supply of 12-24V can be switched with the switch.

    • Opto-coupler isolated input
      • The product contains 16 channels of opto-coupler isolated input whose response speed is 200μsec or less. Also, current sink outputs and current source outputs are switchable with the switch.
    • Internal circuit power supply and external power supply
      • The switch is equipped to switch between the internal circuit power supply of 12V and the external circuit power supply of 12-24V.
    • All of the input signals are usable as interrupt events
      • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • Equipped with a digital filter function to prevent false recognition of input signals due to noise and chattering
      • This product is equipped with a digital filter that can prevent input signal noise and chattering. The input digital filter can be applied to all input terminals individually, and configuration can be performed using the software.
    • Input counter function
      • Digital input and counter input can be switched per channel. The counter values are automatically saved upon turning off the power.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 1x MIL type pin header 20-pin (Male)
    Digital I/O
    Input Channels 16-ch
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) –
    Operating Voltage (Input) 12 to 24VDC; 12VDC
    Operating Voltage (Output) –
    Input Circuit Opto-isolated input (for sink current output); Opto-isolated input (for source current output)
    Output Circuit –
    Built-in Power Supply 12VDC
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-DI-16BCL Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
