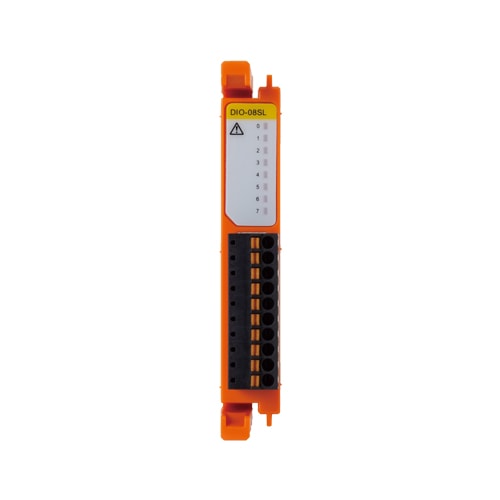

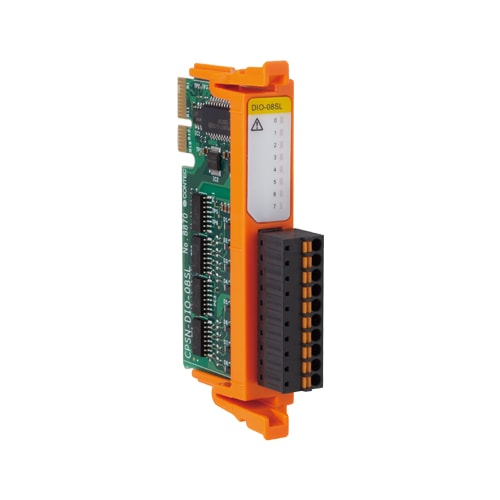

CPSN-DIO-08SL

  • The shared inputs and outputs realizes bi-directional signal controlling
  • Opto-coupler Isolated Input / Output
  • Supportable of wide range of external power supplies
  • Diodes for each input channel to prevent a backward flow
  • Input / Output circuits include Zener diodes for surge voltage protection
  • Adaptable to a wide range of temperature between -20 and 60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-DIO-08SL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds a bi-directional digital input and output interfaces to the CPU Unit of the CONPROSYS nano series.
    The CPSN-DIO-08SL has the 8 channels of opto-coupler isolated input/output (current sink output type) whose response speed is within 200μsec. This product can also be used with an external circuit power supply of 5 to 24 VDC.

    • The shared inputs and outputs realizes bi-directional signal controlling
      • Since the digital I/O channels are shared, each I/O pin can be used as an input or an output without changing the wiring.
    • Opto-coupler Isolated Input / Output
      • This product has 8 channels of opto-coupler isolated input (current sink output supported) and 8 channels of opto-coupler isolated open-collector output (current sink type) whose response speed is within 200μsec respectively.
    • Supportable of wide range of external power supplies
      • The product can support the wide range of external power supplies between 5V to 24VDC (-5% to 10%).
    • Diodes for each input channel to prevent a backward flow
      • With backward flow prevention diodes on each input channel, back flow to an external power supply can be avoided when the power is off. In addition, signals of 24V system can be inputted when a 12VDC external power supply is used.
    • Input / Output circuits include Zener diodes for surge voltage protection
      • Zener diodes are connected to the input / output circuits to protect against surge voltages.
    • Adaptable to a wide range of temperature between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels 8-ch
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) 5 to 24VDC
    Operating Voltage (Output) 5 to 24VDC
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-DIO-08SL Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
