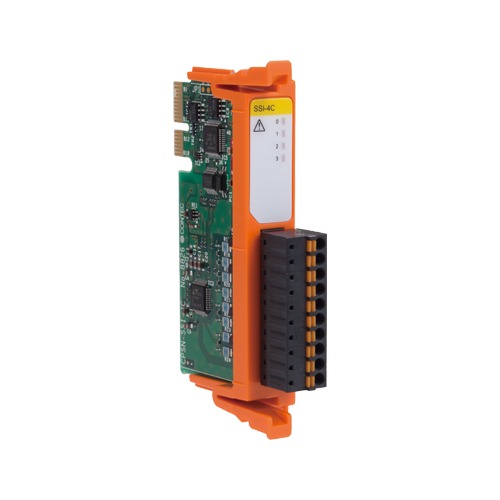

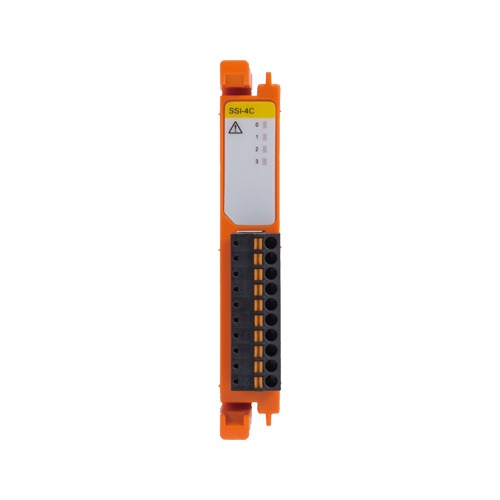

CPSN-SSI-4C

  • Compatible with various types of thermocouple inputs
  • Cold junction compensation function
  • LED indicator for status check
  • Easy installation and removal
  • Adaptable to a wide range of temperature between -20 and +60°C
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-SSI-4C Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds a thermocouple interface to the CPU unit of the CONPROSYS nano series.Four channels of differential inputs are provided for one module.

    • Compatible with various types of thermocouple inputs
      • This product is compatible with a wide range of thermocouple input types such as J(IEC60584-1), K(IEC60584-1), E(IEC60584-1), N(IEC60584-1), R(IEC60584-1), S(IEC60584-1), and T(IEC60584-1).
    • Cold junction compensation function
      • As cold junction compensation is integrated in the product, there is no need to install a temperature sensor for cold junction compensation externally, and temperature can be measured simply by connecting a thermocouple.
    • LED indicator for status check
      • The error status of thermocouple such as disconnected, not-connected, or sensor circuit trouble can be checked with the LED indicator.
    • Easy installation and removal
      • This product can be installed in and removed from the CPU unit without any tools.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Differential 4-ch
    Input Range Type E thermocouple; Type J thermocouple; Type K thermocouple; Type N thermocouple; Type R thermocouple; Type S thermocouple; Type T thermocouple
    ADC Resolution 24-bit
    Sampling Rate –
    Input Buffer Memory –
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-SSI-4C Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-SSI(LNX) Sensor Input driver for Linux
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
