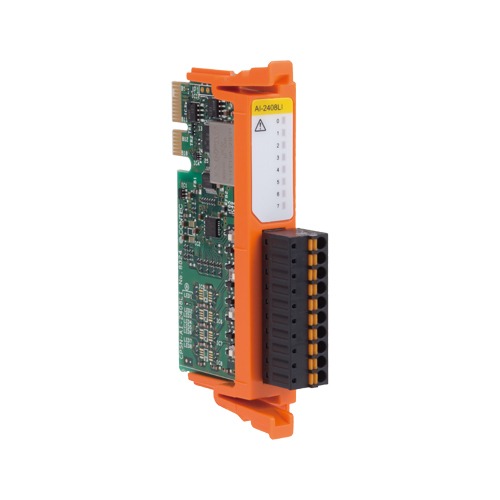

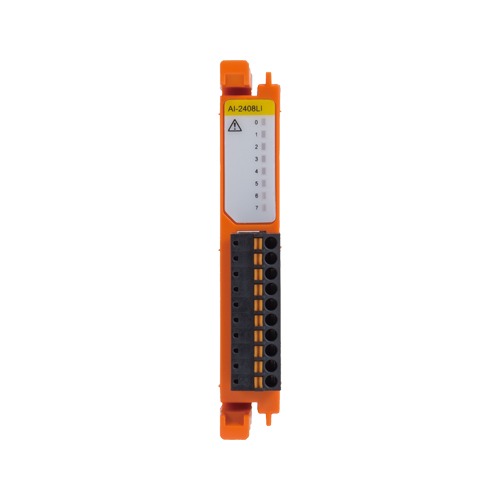

CPSN-AI-2408LI_img1CPSN-AI-2408LI_img1

CPSN-AI-2408LI

  • Bus Isolated Analog Input
  • Capable of supporting multiple input range and types.
  • Easy installation and removal
  • Adaptable to a wide range of temperature between -20 and +60°C
  • No electrolytic capacitor
  • Digital Filter

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-AI-2408LI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds an analog input interface to the CPU unit of the CONPROSYS nano series.The CPSN-AI-2408LI contains 24-bit resolution analog input.One module can be used as single-ended voltage input with 8 channels, differential voltage input with 4 channels, or differential current input with 4 channels and the functions are switchable.

    • Bus Isolated Analog Input
      • This product contains bus isolated analog voltage input and analog current input. As the analog input supports differential input, accurate measurement can be performed even when potential differences with the signal source occur.
    • Capable of supporting multiple input range and types.
      • With the CPSN-AI-2408LI, voltage input and current input are switchable in the switch setting of I/O module. For voltage input, the input range and input type (single-ended input or differential input) can be switched by software command. For current input, the differential input type is used and the input range is switchable.
    • Easy installation and removal
      • This product can be installed in and removed from the CPU unit without any tools.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
    • Digital Filter
      • Slowing the speed of switching channels with software command removes high-frequency noises. Moreover, 50/60Hz noises can be removed by setting to the power noise removal mode.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Single-ended 8-ch; Differential 4-ch
    Input Range ±10V; ±5V; ±2.5V; 0 to 10V; 0 to 5V; ±20mA; 0 to 20mA
    ADC Resolution 24-bit
    Sampling Rate –
    Input Buffer Memory –
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-AI-2408LI Analog Input Module for CONPROSYS nano Series I/O Module 8ch(24bit, 208μsec/ch) / Bus Isolation
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
