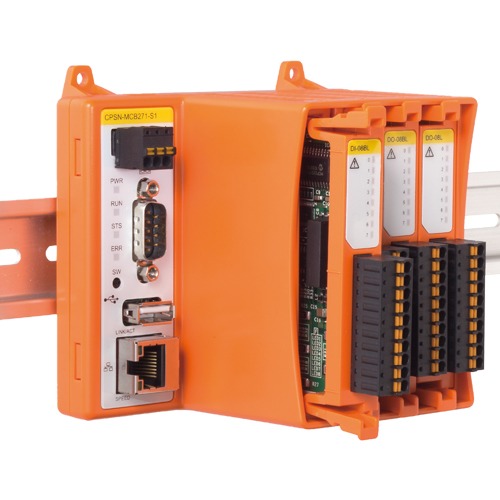

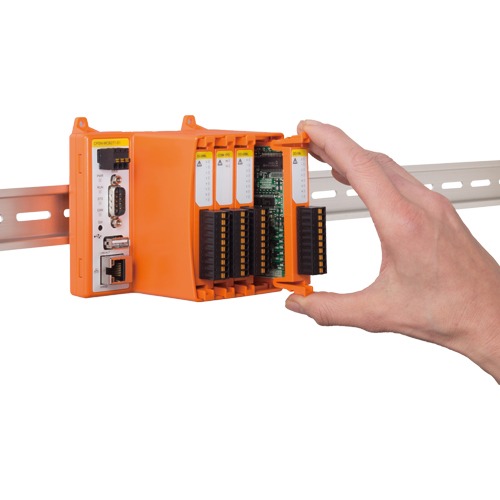

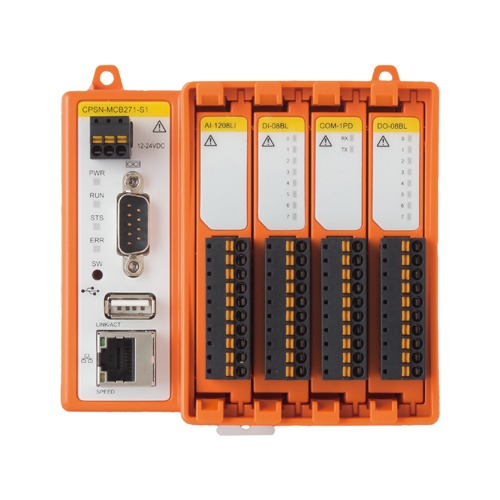

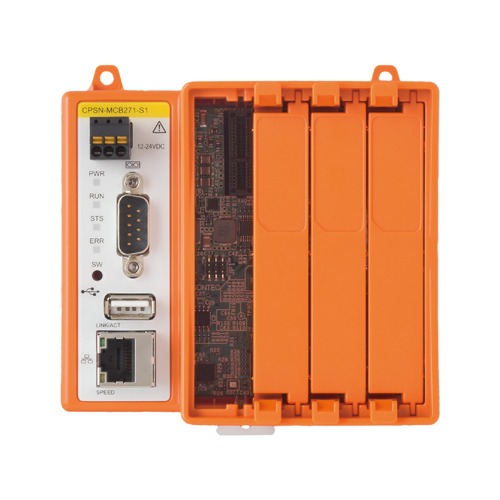

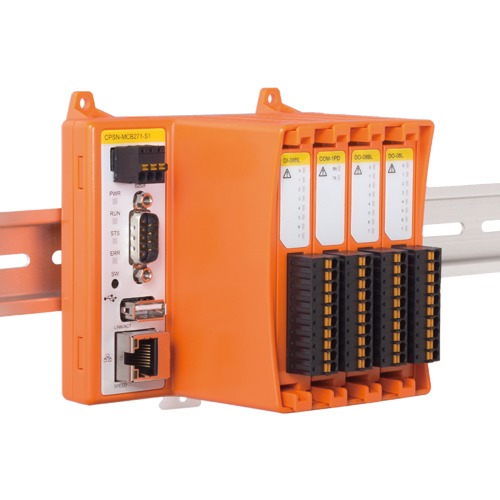

This product is a remote I/O model CPU unit that has RS-232C *1 and LAN interfaces in addition to four expansion slots. If necessary, you can freely combine this product with CONPROSYS nano series I/O modules. In addition, this product can be controlled from a PC running Windows or Linux and supports Modbus TCP Slave and Modbus RTU Slave *1.
*1: This is available with CPSN-MCB271-S1-041 model only
| Series | CONPROSYS nano(Modular remote I/O) |
|---|---|
| Communication Protocol | Modbus TCP |
| Stack bus | CONPROSYS nano stack bus |
| Number of Connecting Modules | 4-modules |
| Number of Ports | – |
| Model | Description | Certification |
|---|---|---|
| CPSN-MCB271-S1-041 | CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C |
|
| Item | Item Name |
|---|---|
| CPSN-AI-1208LI | Analog Input Module for CONPROSYS nano Series I/O Module 8ch(12bit, 10μsec/ch) / Bus Isolation |
| CPSN-AI-2408LI | Analog Input Module for CONPROSYS nano Series I/O Module 8ch(24bit, 208μsec/ch) / Bus Isolation |
| CPSN-AO-1602LC | Analog Output CONPROSYS nano Series I/O Module 2ch (16bit, Voltage / Current) / Inter-channel Isolation |
| CPSN-SSI-4C | Thermocouple Module for CONPROSYS nano Series I/O Module 4ch(J, K, E, N, R, S, T Type, 251ms/ch) / Bus Isolation |
| Item | Item Name |
|---|---|
| CPSN-DI-08BL | Digital input CONPROSYS nano Series I/O module 8ch (12VDC on-board power supply isolated 12VDC) |
| CPSN-DI-08L | Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC) |
| CPSN-DI-16BCL | Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC) |
| CPSN-DIO-08SL | Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC) |
| CPSN-DO-08BL | Digital output CONPROSYS nano Series I/O module 8ch (on-board power supply isolated 12VDC) |
| CPSN-DO-08BRL | Digital output CONPROSYS nano Series I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC) |
| CPSN-DO-08L | Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC) |
| CPSN-DO-08RL | Digital output CONPROSYS nano Series I/O module 8ch (negative-common isolated 12 to 24VDC) |
| CPSN-DO-16BL | Digital output CONPROSYS nano Series I/O module 16ch (opto-coupler driving power supply) |
| CPSN-DO-16L | Digital output CONPROSYS nano Series I/O module 16ch (isolated 12 to 24VDC) |
| CPSN-RRY-4PCA | Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC) |
| Item | Item Name |
|---|---|
| CPSN-CNT-3201I | Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated |
| Item | Item Name |
|---|---|
| CPSN-COM-1PD | Serial Communication CONPROSYS nano Series I/O Module RS-422A/485 1ch / Isolation and Surge Protection |
| Item | Item Name |
|---|---|
| API-AIO(LNX) | Analog I/O Driver for Linux |
| API-AIO(WDM) | Windows version High-efficiency Analog I/O Driver |
| API-CNT(LNX) | Linux version Counter Input Driver |
| API-CNT(WDM) | Windows Driver for Counter Input Driver |
| API-DIO(LNX) | Linux version Digital I/O Driver |
| API-DIO(WDM) | Windows Driver for Digital I/O Driver |
| API-SSI(LNX) | Sensor Input driver for Linux |
| Item | Item Name |
|---|---|
| DAQ-DNC-FE | A collection of .NET components for DAQfast measurement system development. |
| DAQ-LIBMB-LNX | DAQfast Modbus Communication Library for Linux |
| DAQ-LIBMB-WIN | DAQfast Modbus Communication Library for Windows |
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| Item | Item Name |
|---|---|
| CPS-PWD-30AW24-01 | CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit |
| CPS-PWD-90AW24-01 | CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit |
