cps-pcs341ec-ds1-1201cps-pcs341ec-ds1-1201

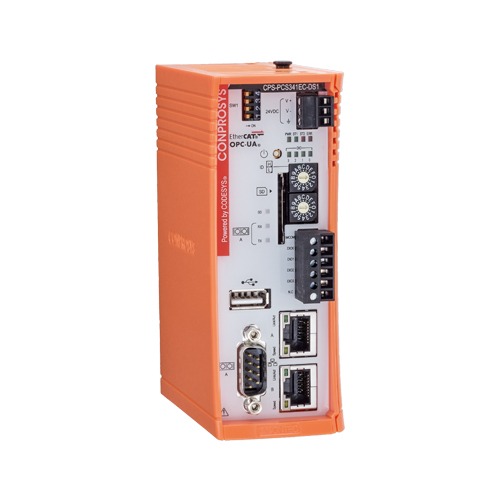

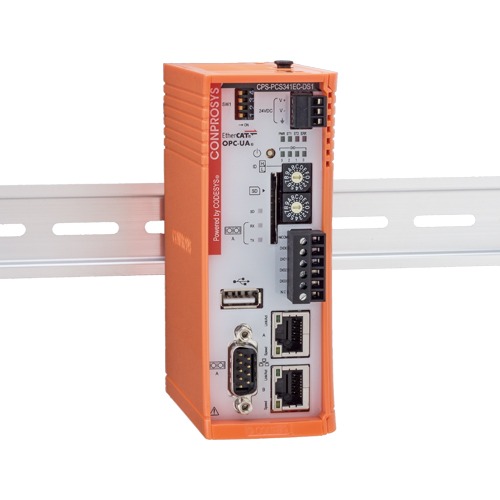

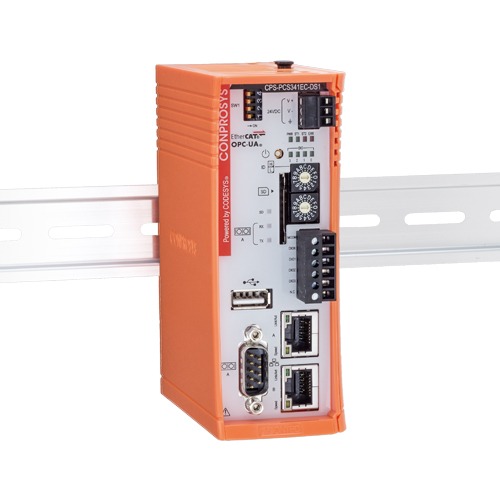

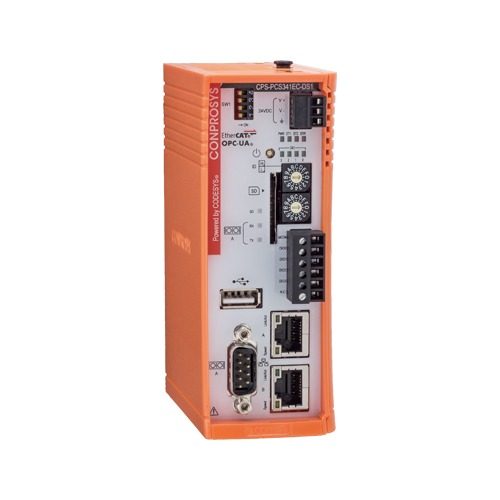

CPS-PCS341EC-DS1-1201

  • Collaborate with the CODESYS
  • Harmonize with EtherCAT Master
  • Together with OPC UA Server
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and 60°C
  • A powerful running platform without fan

*For details about an extended warranty, please contact us.

Data Sheet PDF

SKU: CPS-PCS341EC-DS1-1201 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a Modbus Master controller with isolated digital input and output (Input: 4ch, Output: 4ch), RS-232C, and LAN interface. You can affix the stacking devices of our CONPROSYS series as you desire. (up to 16 devices). This product is in compliant with the following standards: CE, FCC, UL and VCCI.

This product contains the CODESYS* Soft PLC. You can create your own PLC program and run with the CODESYS software.

* CODESYS is a device-independent PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.

  • Collaborate with the CODESYS

    • This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.

  • Harmonize with EtherCAT Master

    • EtherCAT is a strong, efficient real-time Ethernet field bus system with an open protocol.

  • Together with OPC UA Server

    • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP.

  • Compact Design

    • Compact design, 44.7 (W) ×94.7 (D) ×124.8 (H) mm, features flexibility in installation.

  • Adaptable to a wide range of temperature between -20 and 60°C

    • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

  • A powerful running platform without fan

    • The product contains the ARM Cortex-A8 processor (600MHz) and the DDR3 512MB system memory.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Specifications
Controller Unit
Series CONPROSYS PAC
Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus CONPROSYS stack
Function EtherCAT master; Modbus/TCP slave; OPC UA server
Digital I/O
Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply 12VDC
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property
Transmission Method

Ordering Informations

Ordering Information

Model Description Certification
CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    • CE marking
    • FCC compliant
    • UL
    • VCCI

Options

Sensor Input
Item Item Name
CPS-SSI-4P Pt100 Temperature Sensor Input CONPROSYS I/O Module / 4ch(0.01°C 5s/s) / Bus Isolation
Analog I/O
Item Item Name
CPS-AI-1608ALI Analog Input CONPROSYS I/O Module / 8ch(16bit 50ks/s) / Bus Isolation
CPS-AI-1608LI Analog Input CONPROSYS I/O Module / 8ch(16bit 100ks/s) / Bus Isolation
CPS-AO-1604LI Analog Output CONPROSYS I/O Module / 4ch(16bit 50ks/s) / Bus Isolation
CPS-AO-1604VLI Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
Digital I/O
Item Item Name
CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DI-16RL Digital input CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-DIO-0808BL Digital I/O CONPROSYS I/O module 8ch/8ch (12VDC on-board power supply isolated 12 – 24VDC)
CPS-DIO-0808L Digital I/O CONPROSYS I/O module 8ch/8ch (isolated 12 – 24VDC)
CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 – 24VDC)
CPS-DO-16L Digital output CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DO-16RL Digital output CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-RRY-4PCC Relay output CONPROSYS I/O module 4ch ( – 240VAC / – 24VDC)
Counter
Item Item Name
CPS-CNT-3202I Counter CONPROSYS I/O module 2ch (32bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
Serial comm.
Item Item Name
CPS-COM-1PC Serial Communication CONPROSYS I/O Module RS-232C 1ch / Isolation and Surge Protection
CPS-COM-1PD Serial Communication CONPROSYS I/O Module RS-422A/485 1ch / Isolation and Surge Protection
CPS-COM-2PC Serial Communication CONPROSYS I/O Module RS-232C 2ch / Isolation and Surge Protection
CPS-COM-2PD Serial Communication CONPROSYS I/O Module RS-422A/485 2ch / Isolation and Surge Protection
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
