CPS-DI-16L_img1CPS-DI-16L_img1

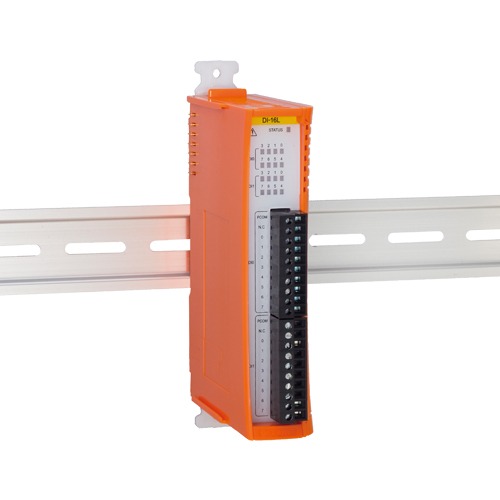

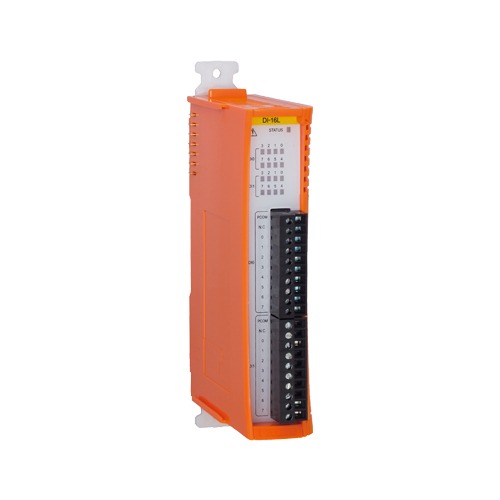

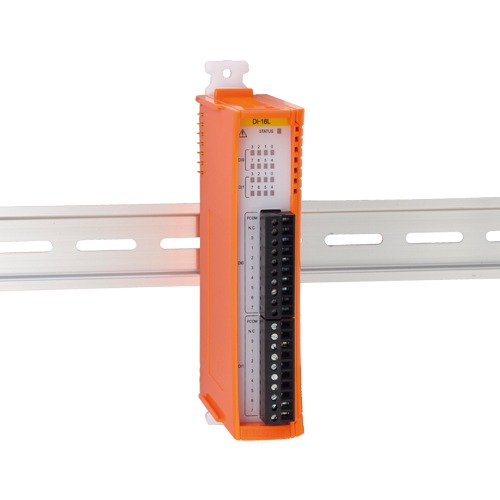

CPS-DI-16L

  • Optocoupler isolated input (supporting current sink output)
  • All of the input signals are usable as interrupt events.
  • Digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection.
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Equipped with the LED for an operation check

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-DI-16L Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an extension module with isolated digital input interface and operates along with the stack type controller of our CONPROSYS series. CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less. All of the input signals are usable as interrupt events.

    • Optocoupler isolated input (supporting current sink output)
      • CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less.
    • All of the input signals are usable as interrupt events.
      • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
    • Digital filter to prevent input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
    • Output circuits include zener diodes for surge voltage protection.
      • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 100mA to the maximum per channel.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Equipped with the LED for an operation check
      • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
    Digital I/O
    Input Channels 16-ch
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) –
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) –
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
