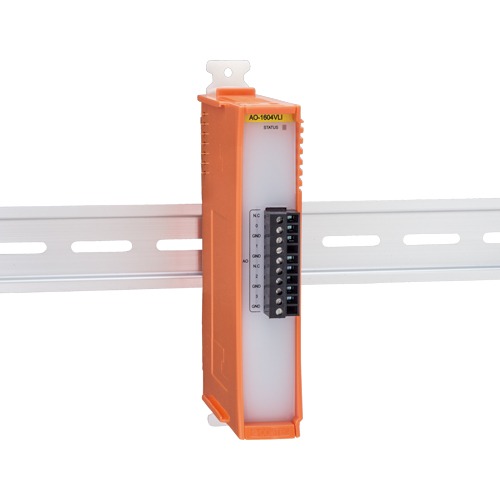

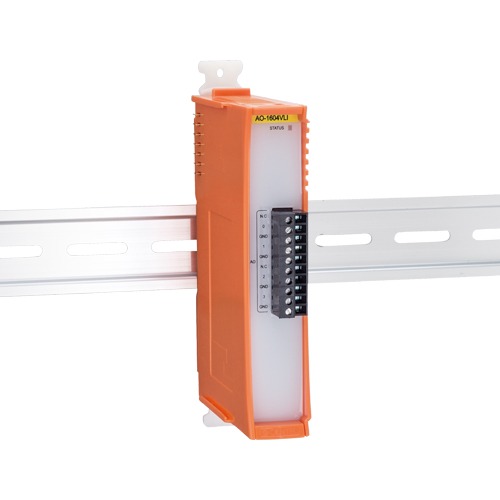

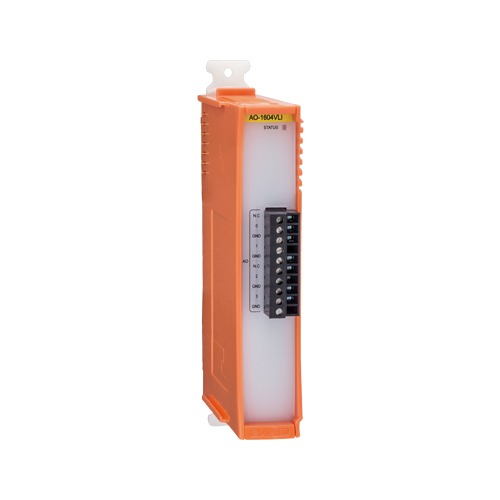

CPS-AO-1604VLI

  • Bus-isolated analog output module providing highly accurate measurement
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and 60°C
  • Installation easy with two pieces of terminal support and DIN rail

Data Sheet PDF

SKU: CPS-AO-1604VLI Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is an extension module with analog output interface and operates along with the CPU module configurable type controller of our CONPROSYS series. It has 4channels of high precision analog output per module. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

  • Bus-isolated analog output module providing highly accurate measurement
    • This product contains bus-isolated analog output (16bit, 4ch) that measures with a high degree of accuracy.CPS- AO-1604VLI features the function of the analog voltage output (16bit, 4ch)
  • Compact Design
    • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
  • Adaptable to a wide range of temperature between -20 and 60°C
    • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.
  • Installation easy with two pieces of terminal support and DIN rail
    • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also be removable along the side rails. Replacing is simple and easy.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Specifications
Add-on Module
Series CONPROSYS I/O Module
Bus Specification CONPROSYS stack bus
Size CONPROSYS 1U
Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
Analog I/O
Input Channels
Input Range
ADC Resolution
Sampling Rate
Input Buffer Memory
Output Channels 4-ch
Output Range ±10V
DAC Resolution 16-bit
Update rate 10μsec (max.)
Output Buffer Memory 4k Word
Digital I/O
Input Channels
Output Channels
Bi-directional I/O Channels
Response Time (Input)
Response Time (Output)
Operating Voltage (Input)
Operating Voltage (Output)
Input Circuit
Output Circuit
Built-in Power Supply
Supported OS
Supported OS
  • *The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).

Ordering Informations

Ordering Information
Model Description Certification
CPS-AO-1604VLI Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
  • CE marking
  • FCC compliant
  • UL
  • VCCI
Options
Coupler module
Item Item Name
CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
Controller unit
Item Item Name
CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C

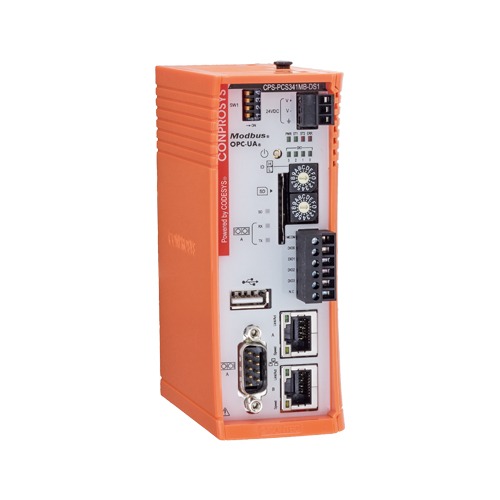

CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
Device Drivers
Item Item Name
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
Development Support Tools
Item Item Name
DAQ-LV-WIN LabVIEW Data Acquisition Library
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
